Double Glazing 30m/Min Glass Edge Grinding Machine

Double Glazing 30m/Min Glass Edge Grinding Machine
Double Glazing 30m/Min Glass Edge Grinding Machine Double Glazing 30m/Min Glass Edge Grinding Machine

Large Image :  Double Glazing 30m/Min Glass Edge Grinding Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJCM 2545
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: Within 20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month

Double Glazing 30m/Min Glass Edge Grinding Machine

Description
Name: Automatic Vertical Glass Edge Grinding Machine Max Glass Size: 2500*4500mm
Min Glass Size: 300*350mm Usage: Insulating Glass Processing
Grinding Wheel Width: 10/12/15mm Application: Insulating Glass Making
Glass Thickness: 3-15mm Conveyor Speed: 30m/min
Edge Deleting Speed: 0-15m/min Servo Control System: 6
High Light:

Glazing glass belt grinding machine

,

30m/min glass double edging machine

High Efficient Automatic Vertical Glass Edge Grinding Machine with used for Double Glazing glass processing

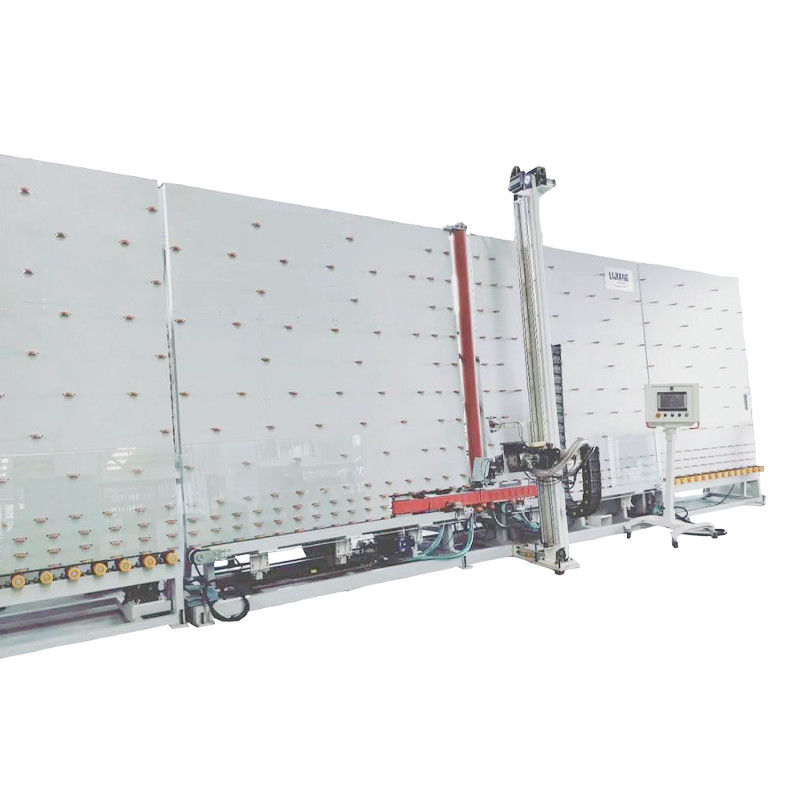

Description of Vertical Glass Edge deleting Machine


Vertical Glass Edge Deleting Machine LJCM2545 is used to remove low-e film from edges of the glass.Glass Edge Sanding Machine can be connected to the insulating glass production line and is necessary equipment in insulated glass processing



Advantage of Low-e Glass Edge Deleting Machine


• Two-way glass access

• Automatically measure size

• Automatically distinguish low-e surface

• Edge deletion is adjustable

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

• Intelligent control system, can recognize batch processing



Main feature of Glass Edge Grinding Machine
1.PLC control system,touch screen interface
Double Glazing 30m/Min Glass Edge Grinding Machine 0Double Glazing 30m/Min Glass Edge Grinding Machine 1

2.Edge deletion is adjustable
Double Glazing 30m/Min Glass Edge Grinding Machine 2

3.Two-way glass access
Double Glazing 30m/Min Glass Edge Grinding Machine 3
4.Automatically distinguish low-e surface
Double Glazing 30m/Min Glass Edge Grinding Machine 4
5.Intelligent control system, can recognize batch processing

6.Automatically measure size
Double Glazing 30m/Min Glass Edge Grinding Machine 5

7.High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.

8.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.

Technical parameter of Low-e Glass Edge Grinding Machine

Max.glass processing size 2500*4500mm
Min.glass processing size 350*500mm
Glass thickness 3-15mm
Edge deleting width 10-50mm
Glass conveyor speed: 30m/min
Edge deleting speed 0-15m/min
Abrasive wheel width 10/12/15mm
Air supply Flow 0.2m3/min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension 8000*2500*3400mm

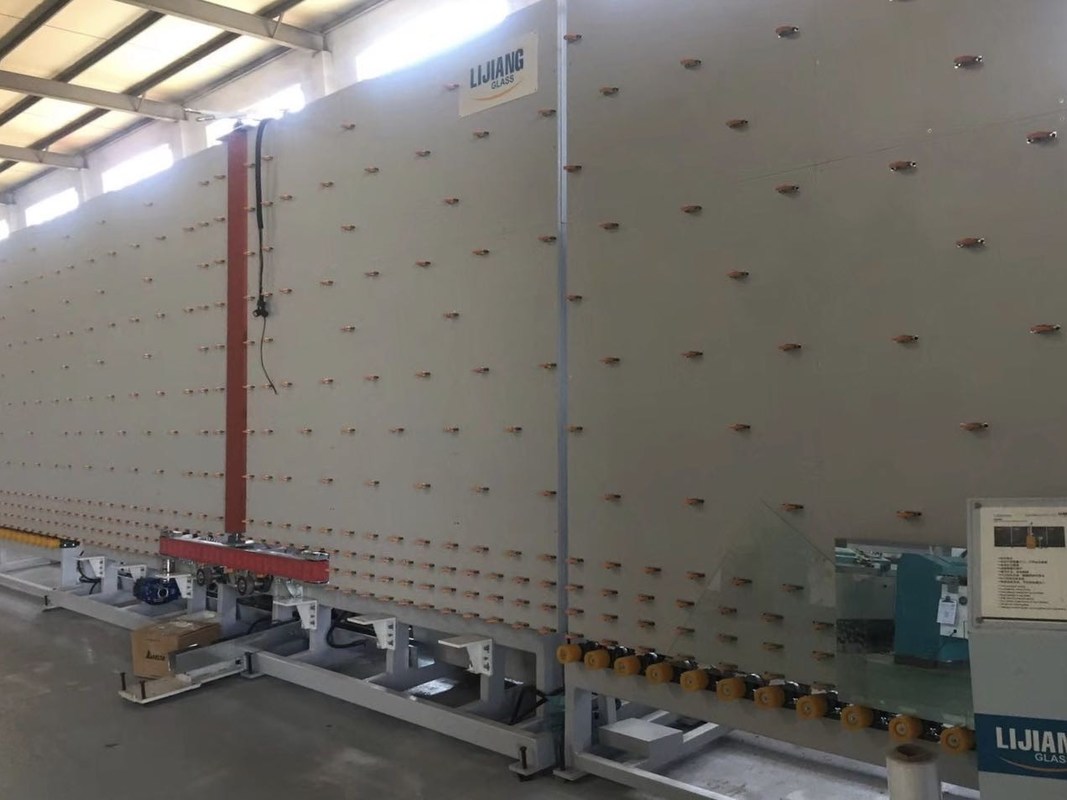

Detail picture of Automatic Low-e Glass Edge Deleting Machine
Double Glazing 30m/Min Glass Edge Grinding Machine 6

Double Glazing 30m/Min Glass Edge Grinding Machine 7
Related products

 Glass washing machine

Double Glazing 30m/Min Glass Edge Grinding Machine 8

Main feature:

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system

• 304 stainless steel materials



Double Glazing 30m/Min Glass Edge Grinding Machine 9

Ater sale
Double Glazing 30m/Min Glass Edge Grinding Machine 10

FAQ

Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
