Double Glazing Glass Processing 47m/Min Bending Glass Machine

Double Glazing Glass Processing 47m/Min Bending Glass Machine
Double Glazing Glass Processing 47m/Min Bending Glass Machine Double Glazing Glass Processing 47m/Min Bending Glass Machine Double Glazing Glass Processing 47m/Min Bending Glass Machine

Large Image :  Double Glazing Glass Processing 47m/Min Bending Glass Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020/LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: L/C, T/T
Supply Ability: 30 sets/month

Double Glazing Glass Processing 47m/Min Bending Glass Machine

Description
Name: Automatic Aluminum Bar Bending Machine Aluminum Spacer Width: 6A-27A
Dimensional Error: Within 0.5mm Usage: Insulating Glass Processing
Max.bending Spacer Size: 2000*2000mm Min.bending Spacer Size: 250mm*200mm
Angle Error: Within 1 Air Supply: >0.65MPa
Speed: 0-47m/min Diemension: 10500*2200*2600mm
High Light:

47m/Min glass bending equipment

,

Glazing bending glass machine

insulating Glass Machine Automatic Aluminum bar Bending Machine Double Glazing Glass Processing

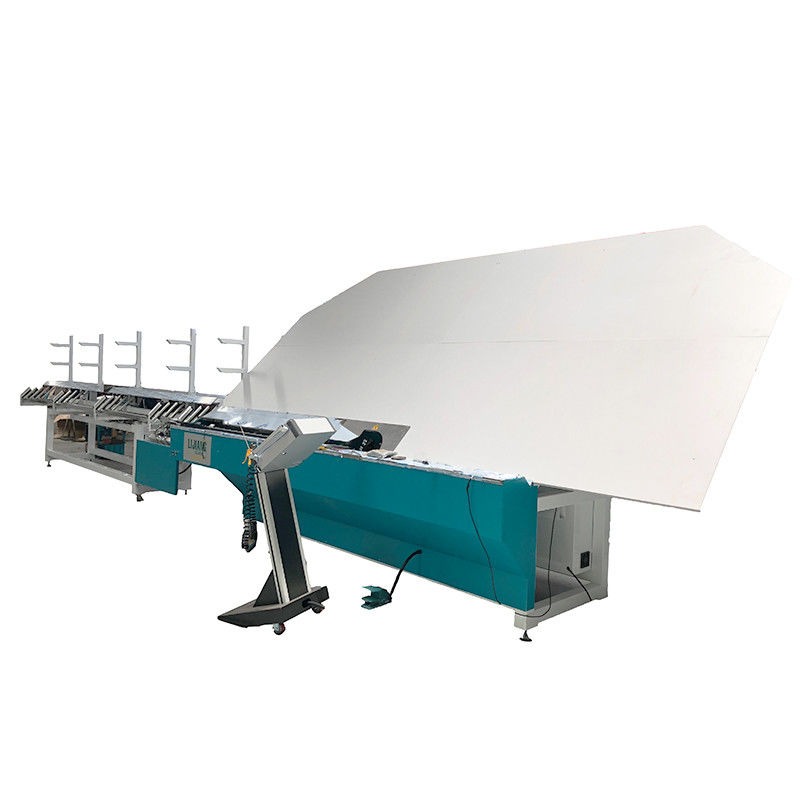

Product overview of Aluminum Bar Bending Machine



Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

Automatic Aluminum spacer bar bending machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically.Automatic bending machine is necessary equipment in insulating glass productions.



Main technical parameter of Aluminum Bar Bending Machine



Max.bending size 2000mm*2000mm
Min.bending size 250mm*200mm
Aluminum spacer width 6-27A
Dimensional error: ≤±0.5mm
Angle error ≤±1º
Speed 0-47m/min
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm






Main Features of Automatic spacer bar bending machine

1. Aluminum spacers are available in different specifications and sizes

Double Glazing Glass Processing 47m/Min Bending Glass Machine 0



2.German siemens plc control system,touch screen interface.

Double Glazing Glass Processing 47m/Min Bending Glass Machine 1



3.Four or Twelve different spacer size storage units can choose

Double Glazing Glass Processing 47m/Min Bending Glass Machine 2



4.Heavy duty connectors ,convenience and safety for installation and debugging

Double Glazing Glass Processing 47m/Min Bending Glass Machine 3



5.The special machine hand device is used to bend big spacer frame

Double Glazing Glass Processing 47m/Min Bending Glass Machine 4



6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting

Double Glazing Glass Processing 47m/Min Bending Glass Machine 5



8.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)

Double Glazing Glass Processing 47m/Min Bending Glass Machine 6



9.Spare parts of all machine have ID code ,convenient for after-sale service

Double Glazing Glass Processing 47m/Min Bending Glass Machine 7

10.USB input function ,it can read the excel data directly





Detail of Automatic Aluminum bar Bending Machine

Double Glazing Glass Processing 47m/Min Bending Glass Machine 8Double Glazing Glass Processing 47m/Min Bending Glass Machine 9Double Glazing Glass Processing 47m/Min Bending Glass Machine 10

Other related products

1.Spacer trip cutting machine LJQJ 02

Double Glazing Glass Processing 47m/Min Bending Glass Machine 11

Main feature

It is used for cutting aluminum strip

• Allowed to cut many spacers,keep high efficiency



Technical data

Power supply 380V 50Hz
Total power 0.55kw
Dimension 5000*1050*415mm



2.Aluminum frame transfer machine LJSKJ02



Double Glazing Glass Processing 47m/Min Bending Glass Machine 12

Main feature

  • Spacer frame transport
  • Easy operating, simple and flexible

Technical data



Power supply 380V 50Hz
Total power 0.18kw
Dimension 2520*3012*3000mm



3.Molecular sieve filling machine LJFGJ 03

Double Glazing Glass Processing 47m/Min Bending Glass Machine 13

Main feature

  • Can effectively seal the desiccant,to keep dry
  • Manual filling desiccant into spacer frame
  • Recyclable
  • Easy operating, simple and flexible



Technical data



Power supply 220V 50Hz
Total power 1kw
Dimension 2490*400*2200mm

Double Glazing Glass Processing 47m/Min Bending Glass Machine 14

Double Glazing Glass Processing 47m/Min Bending Glass Machine 15

Double Glazing Glass Processing 47m/Min Bending Glass Machine 16Double Glazing Glass Processing 47m/Min Bending Glass Machine 17

Double Glazing Glass Processing 47m/Min Bending Glass Machine 18

Double Glazing Glass Processing 47m/Min Bending Glass Machine 19
