Coat Many Shaped Insulating Glass Processing Sealant Extruder

Coat Many Shaped Insulating Glass Processing Sealant Extruder
Coat Many Shaped Insulating Glass Processing Sealant Extruder Coat Many Shaped Insulating Glass Processing Sealant Extruder

Large Image :  Coat Many Shaped Insulating Glass Processing Sealant Extruder

Product Details:
Place of Origin: China
Brand Name: JINAN LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Container
Delivery Time: Within 20days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Coat Many Shaped Insulating Glass Processing Sealant Extruder

Description
Name: Vertical Insulating Glass Sealing Robot Max Glass Size: 2500*4000mm
Min Glass Size: 300*300mm Fuction: Sealant Extruder
Applicantion: Insulating Glass Processing Working Speed: 5-40m/min
Glass Thickness: 12-50mm Air Pressure: >0.6MPa
Usage: Silicone Extruder Power: 380V 12kw
Dimension: 8700*2000*3500mm Squeeze Pressure: 32MPa
High Light:

Shaped glass sealing machine

,

Processing sealant dispensing machine

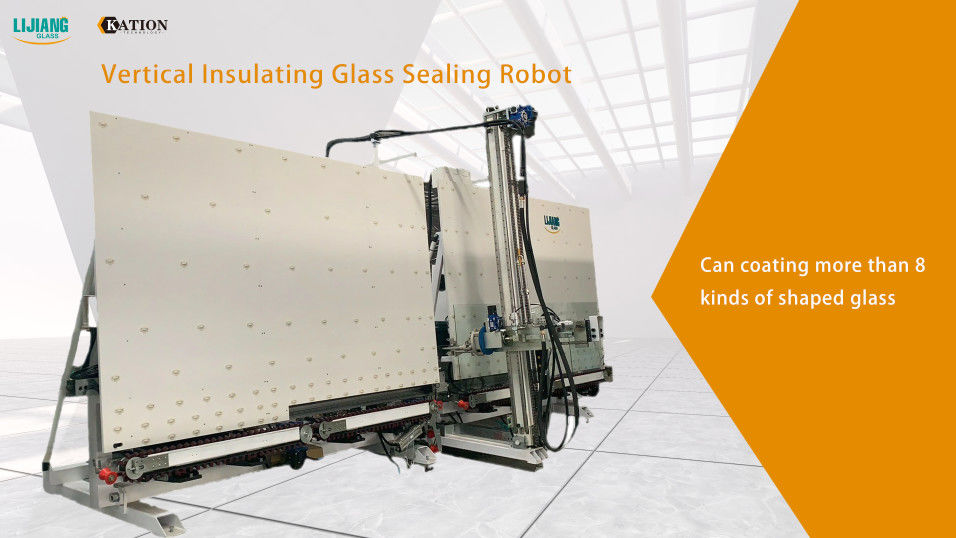

Vertical Insulating Glass Sealing Robot Can coat many shaped glass used for insulating glass processing

Product overview of Insulating Glass Sealing Robot

Insulating Glass Sealing Robot  is used for sealing the outer layer of the insulating glass. Through the servo mechanism, the mixed insulating sealant is evenly applied to the outer layer of the insulating glass to help the sealing and bonding performance of the insulating glass



Main feature of Double Glazing Glass Sealing Robot

1. Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

Coat Many Shaped Insulating Glass Processing Sealant Extruder 0Coat Many Shaped Insulating Glass Processing Sealant Extruder 1



2.Adopt 8 sets Japan ANCHUAN servo motors

Coat Many Shaped Insulating Glass Processing Sealant Extruder 2



3. Automatically measure glass size, glue depth and glue speed with linear adjustment

Coat Many Shaped Insulating Glass Processing Sealant Extruder 3



4.The glass corners are full without air bubbles, smooth surface, no corner trimming required

Coat Many Shaped Insulating Glass Processing Sealant Extruder 4



5.Glue system can be selected

One Set of Glue System Equipped with single A component and single B component.

Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

Coat Many Shaped Insulating Glass Processing Sealant Extruder 5



6.Timing belt

The time belt device ensure that glass can be smooth transmission and positioned accurately.

Coat Many Shaped Insulating Glass Processing Sealant Extruder 6



7.Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

Coat Many Shaped Insulating Glass Processing Sealant Extruder 7



8. Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

Coat Many Shaped Insulating Glass Processing Sealant Extruder 8



Advantage of Double Glazing Glass Sealing Machine



•Automatically repair glass corners with scraper and roller
•Automatically measure glass size, glue depth (30mm)
•Every auto-function is with manual operation

•Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine

•4sections, can storage glass
•Adopt timing belt, smooth transfer and accurate position
•Can use silicone, polysulfide and silicone structural sealants
•Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional)
•One set of booster pump controls two groups of sealants (Optional)
•Glue head is in the front of the machine,which is easy for coating step glass
•Can be connected with insulating glass processing line With code scanning function(Optional)



Tech Parameters of Hollow Glass sealing machine

Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm

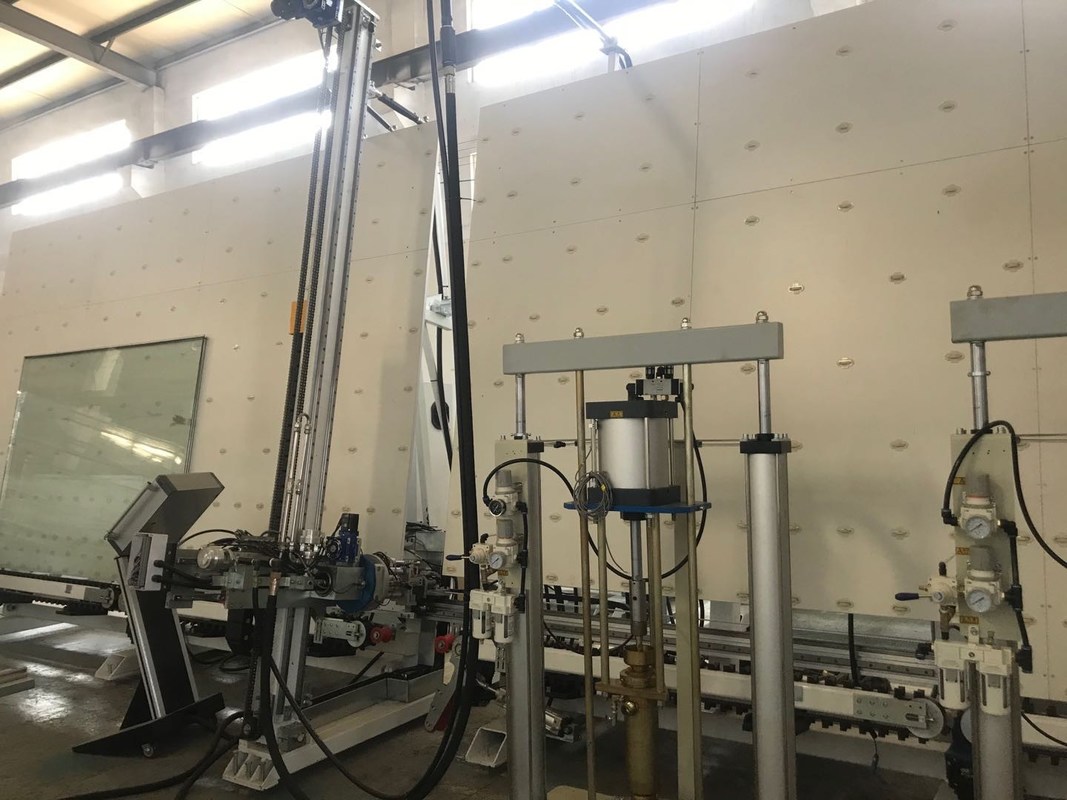

Detail of silicone extruder machine

Coat Many Shaped Insulating Glass Processing Sealant Extruder 9

Coat Many Shaped Insulating Glass Processing Sealant Extruder 10

Coat Many Shaped Insulating Glass Processing Sealant Extruder 11



Related products

Desiccant Filling Machine LJGZ 2020

Coat Many Shaped Insulating Glass Processing Sealant Extruder 12

Main feature

• Adopt Siemens PLC control system

• Touch screen interface, easy operation

• Automatically drilling, filling and sealing

• Core parts are imported brands

• The height can be adjusted according to the size of spacer frame

• Automatically loading and replenish desiccant

• Filling time can be adjusted

• Arc frame (optional)

• Fill large particle molecular sieve (Optional)



Technical data



Max. frame size 2000mm*2000mm (2500mm*2500mm)
Min. frame size 300mm*250mm
Aluminum specifications 6A- 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.8mm
Dimension 1100mm*1100mm*3600mm





Coat Many Shaped Insulating Glass Processing Sealant Extruder 13

Coat Many Shaped Insulating Glass Processing Sealant Extruder 14

Coat Many Shaped Insulating Glass Processing Sealant Extruder 15

Coat Many Shaped Insulating Glass Processing Sealant Extruder 16

Coat Many Shaped Insulating Glass Processing Sealant Extruder 17
