1.Vertical Insulating Glass Production Line LJBZ2535G Adopt SIEMENS control system, keep stable performance

1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance
1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance

Large Image :  1.Vertical Insulating Glass Production Line LJBZ2535G Adopt SIEMENS control system, keep stable performance

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 50000-120000
Packaging Details: container
Delivery Time: 30
Supply Ability: 20sets

1.Vertical Insulating Glass Production Line LJBZ2535G Adopt SIEMENS control system, keep stable performance

Description

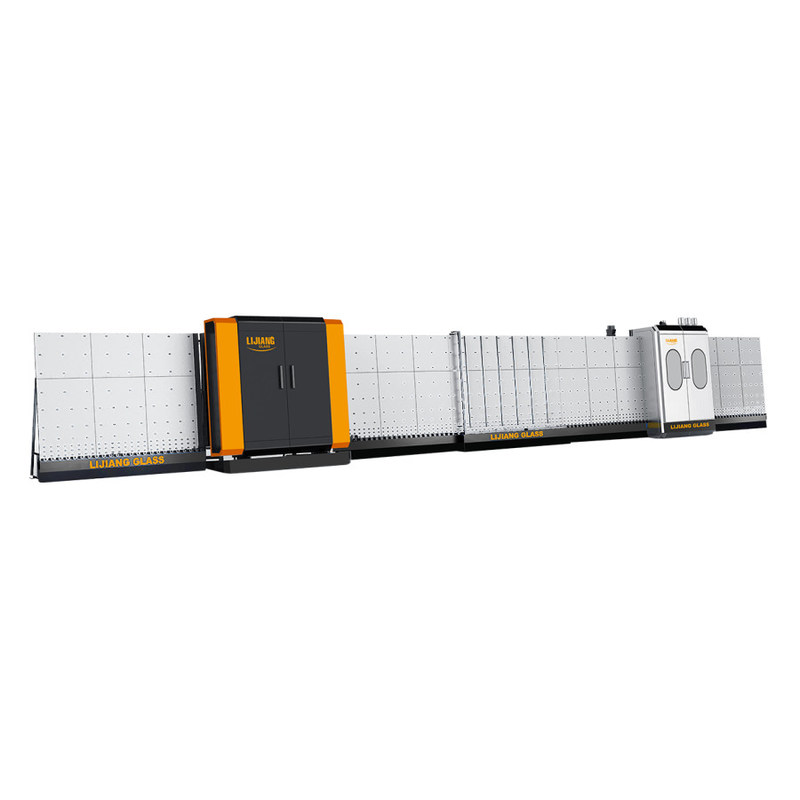

Name: 1.Vertical Insulating Glass Production Line LJBZ2535G Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*400mm Glass Thickness: 3-15mm / 19mm
Insulating Glass Thickness: 50mm / 60mm
High Light:

45m/min insulating glass machine

,

15mm double glazing glass machine

,

SIEMENS Control Insulating Glass Production Line

1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 0



1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 1



Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

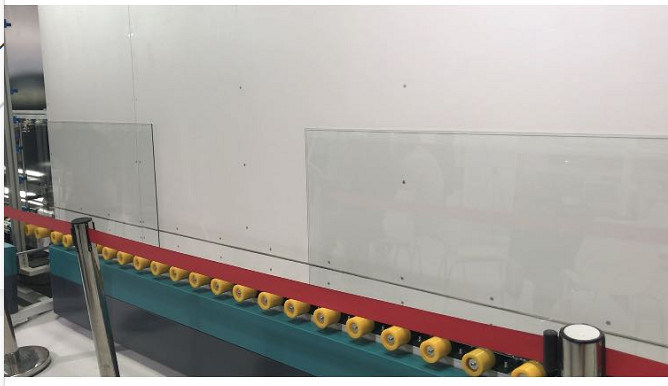

Glass washing part





1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 2



1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 3

Main feature:

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system





1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 4



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG



  • Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

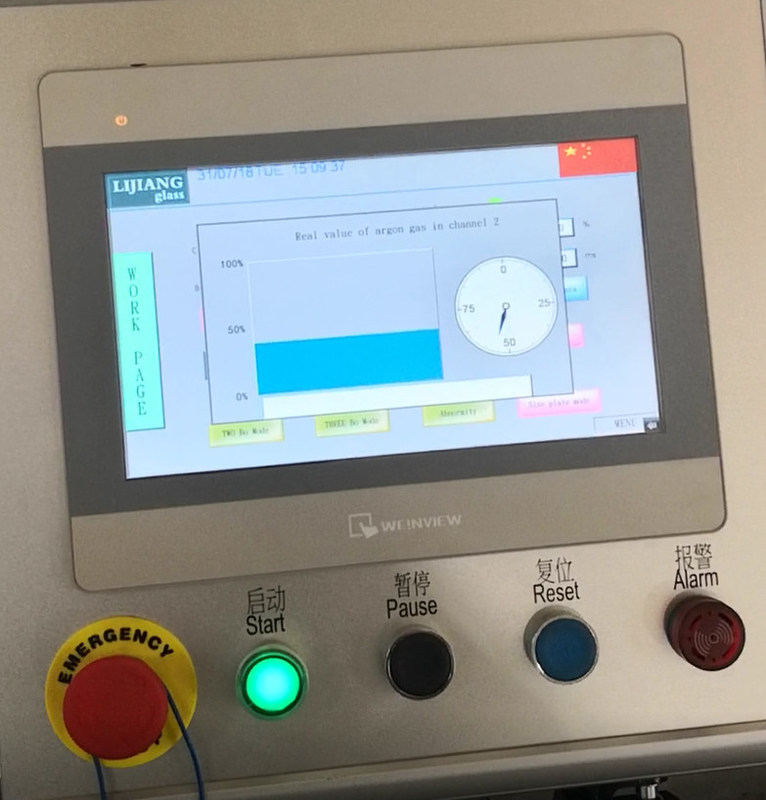

• Automatically set gas data and display data on the screen

1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 5



Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and

service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts,

establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing

advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing

Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company,

our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries

and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China

Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently

produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending

machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have

reached the highest leading level in China.



1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 6



1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 7

FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer

to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation



Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.



1.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 81.Vertical Insulating Glass Production Line  LJBZ2535G  Adopt SIEMENS control system, keep stable performance 9
