7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle
7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle 7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle

Large Image :  7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 85000 - 11000 per set
Packaging Details: wooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle

Description
Voltage: 380V 50Hz 3P Condition: NEW MACHINE
After-sales Service Provided: Engineers Service Product Name: Automatic Butyl Extruder Machine
Warranty: 1 Year Application: Making Double Glazing Glass Products Machine
Heating Time: 15 Mins
High Light:

200 L hot melt butyl extruder

,

Coating double glass machine

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle

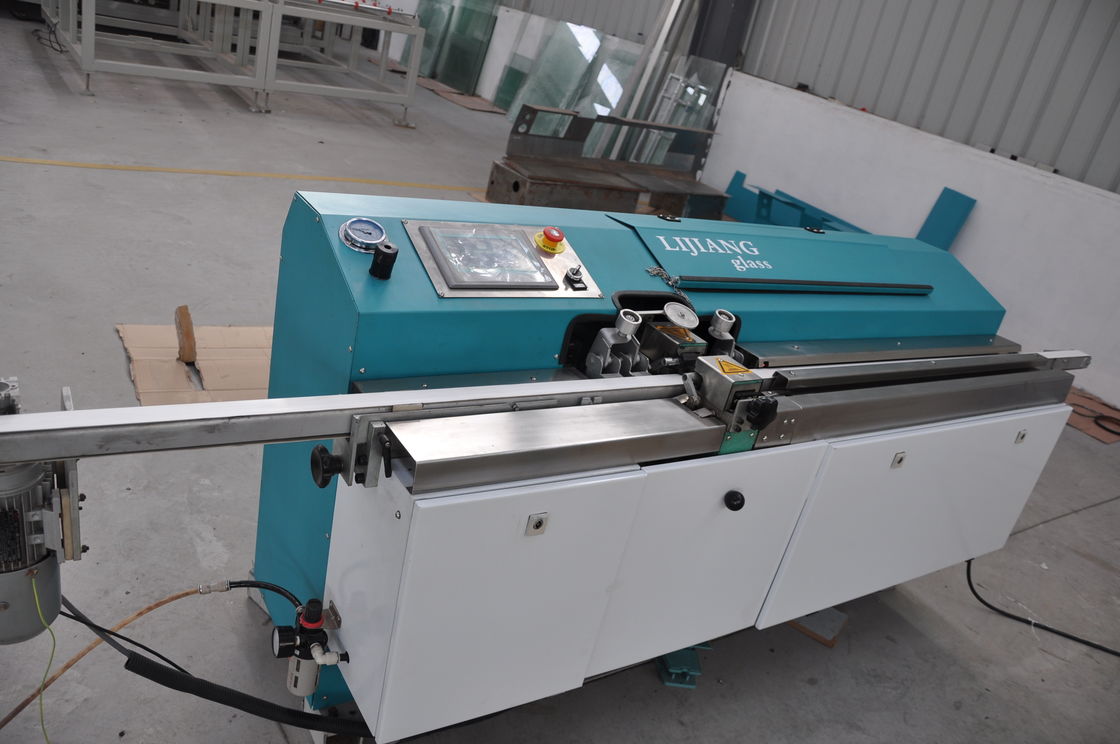

LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle 0

Optional functions:

200L glue cylinder is optional

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle 1

Main performance features:

1. Glue application speed can reach 47m / min

2. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m

3. Unique design structure, with automatic exhaust function, to ensure continuous glue application

4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

5. The main accessories are German brands. PLC program control, stable performance

6. It is convenient and practical to use movable vertical and horizontal sealant

7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

8. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

9. Touch screen operation, simple and practical

10. Automatically adjust the glue output according to the speed change

12. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery

14. The rubber cylinder adopts pull-up structure, which is convenient for operation

Specification parameters:

Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg

7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle 2

Electrical parameters :

Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON

More details :
•PLC control system, KINCO touch screen interface
•Hydraulic system using German brands

•Alarm system, reminding adding butyl glue
•The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
•Exhaust function
•Short preheating time, improve work efficiency
•Coating shape frames, the roller device can be selected at will

•Fast coating speed, can up to 47m/min
•Stable pressure and even coating
•Saving glue. The amount of glue on both sides can reach 4g / m

Optional function :

This machine with big glue barrel with 200L butyl glue, the new butyl extruder machine will save a lot time of adding glues.
7G/M Automatic Coating Fast Butyl Extruder Machine With Adjustable Gluing Nozzle 3
