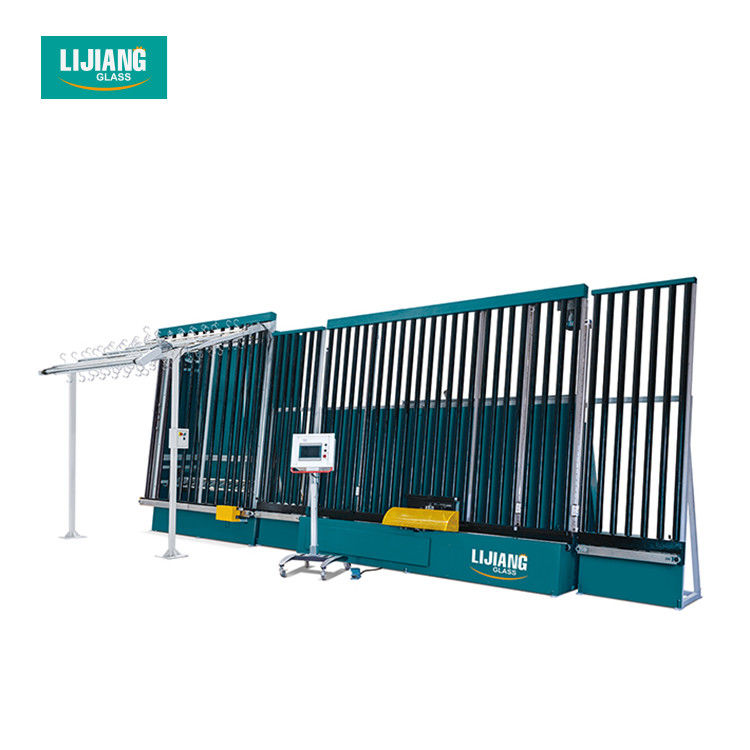

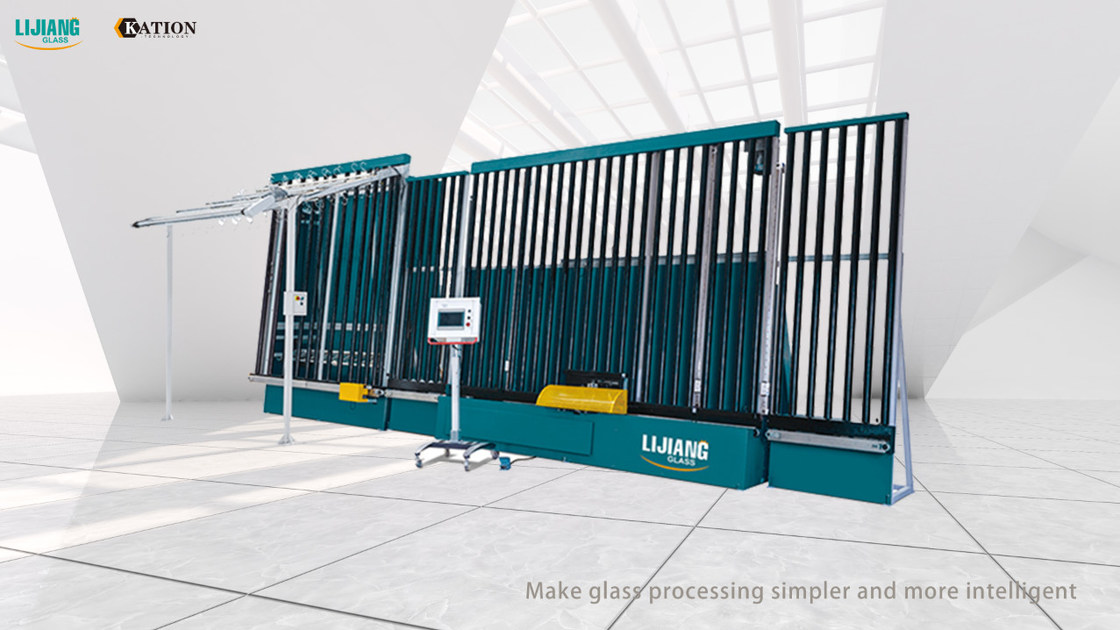

Insulating Glass Coating 7kg Butyl Extruder Machine

Insulating Glass Coating 7kg Butyl Extruder Machine
Insulating Glass Coating 7kg Butyl Extruder Machine Insulating Glass Coating 7kg Butyl Extruder Machine

Large Image :  Insulating Glass Coating 7kg Butyl Extruder Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB02
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Container
Delivery Time: Within 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets /month

Insulating Glass Coating 7kg Butyl Extruder Machine

Description
Name: Insulating Glass Butyl Extruder Machine Faction: Butyl Coating
Application: Insulating Glass Gluing Speed: 2-50m/min
Aluminum Spacer Width: 6-24mm Air Pressure: ≥0.6MPa
Power: 380V 50Hz 7KW Dimension: 10000*1310*3150
High Light:

Glass hot melt butyl extruder

,

7kg double glazing glass machine

Glass coating machine insulating glass Butyl Extruder Machine for hot melt extruder

Overview of insulating glass Butyl Extruder Machine

Full Automatic butyl extruder spreading machine can automatic spread butyl extruder ,lay a foundation for totally automatic of glass factories in the future.

Main feature of Automatic butyl coating machine

1.Glass coating machine has mechanical hand ,Glue stability

Insulating Glass Coating 7kg Butyl Extruder Machine 0

2.Automatic butyl extruder machine can automatic coating butyl extruder

Insulating Glass Coating 7kg Butyl Extruder Machine 1


3.Butyl coating machine can load two barrels if butyl.

4.Automatic butyl extruder machine can Smooth convey without scratch and pollution.



Technical parameter of Glass coating machine



Aluminum spacer width 6-24mm
Gluing Speed 2-50m/min
Air pressure ≥0.6MPa
Total power 380V, 7KW,50HZ
Dimension 10000×1310×3150mm



Detail of Insulating Glass coating machine

Insulating Glass Coating 7kg Butyl Extruder Machine 2

Related products

Butyl Extruder Machine LJTB 03

Insulating Glass Coating 7kg Butyl Extruder Machine 3

Main feature

• PLC control system, touch screen interface

• Frequency control system

• Arc frame coating structure

• Imported pneumatic and hydraulic supercharging system

• Automatic centering and clamping structure

• Loading capacity up to 14KG, saving time for feeding glue

• Adopt five steps to control convey

• Preheating function,glue cylinder limit function,alarm system

• Covey and gluing mechanism adopts the latest design

Technical data





Squeeze pressure

10-18MPa

Temperature

110~140

Aluminum spacer width

6A-27A

Speed

0-40m/min

Diameter of butyl cylinder

200mm

Air supply

0.4m³/min

Air pressure

0.6MPa

Total power

380V, 5KW,50HZ

Dimension

2600×680×1100mm(L×W×H)

weight

650kg



Aluminum frame transfer machine LJSKJ02

Insulating Glass Coating 7kg Butyl Extruder Machine 4

•Spacer frame transport
•Easy operating, simple and flexible



Power supply 380V 50Hz
Total power 0.18kw
Dimension 2520*3012*3000mm



Butyl Extruder Machine   LJTB 01

Insulating Glass Coating 7kg Butyl Extruder Machine 5

Main feature

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data



Squeeze pressure

10-18MPa

Temperature

110~140

Aluminum spacer width

6A - 27A

Speed

5-47m/min

Diameter of butyl cylinder

200mm

Air supply

0.4m³/min

Air pressure

0.6MPa

Total power

380V, 5.7KW,50HZ

Dimension

2800×700×900mm(L×W×H)

weight

650kg

Insulating Glass Coating 7kg Butyl Extruder Machine 6Insulating Glass Coating 7kg Butyl Extruder Machine 7Insulating Glass Coating 7kg Butyl Extruder Machine 8
