Product Details:
|
| Certification: | CE | Production Name: | Automatical Desiccant Molecular Sieve Filling Machine |
|---|---|---|---|
| Faction: | Automatically Drilling,filling And Sealing | Application: | Insulating Glass Making |
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| Optional: | Big Barrel | ||
| High Light: | 300mm*250mm glass dryer machine,Desiccant automatic filling machine |
||
Insulating Glass sealing line Adopt Japan ANCHUAN servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Advantage of Molecular Sieve Filling Machine
•Adopt Siemens PLC control system automatic desiccant filling machine

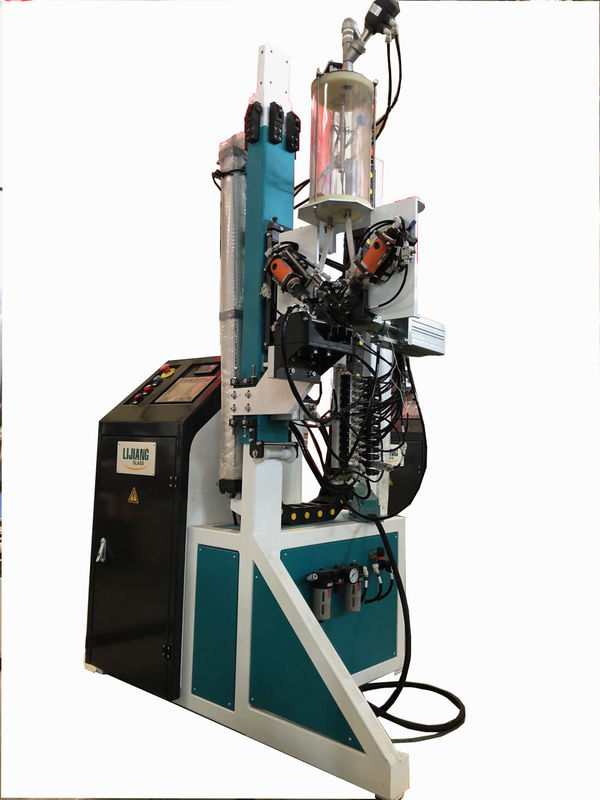

Product overview of Desiccant Filling Machine
1.Auto drilling, filling and sealing function
2.Electrical component are all Germany Brand-Siemens.
3.Machine height can be adjusted according to the size of spacer frame
4. Protection device for machine head.
5.Desiccant automatically loading from the Materials bucket.
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Main technical parameter of Molecular sieve filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Automatic Aluminum Spacer Bending Machine LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
