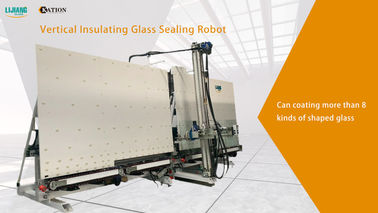

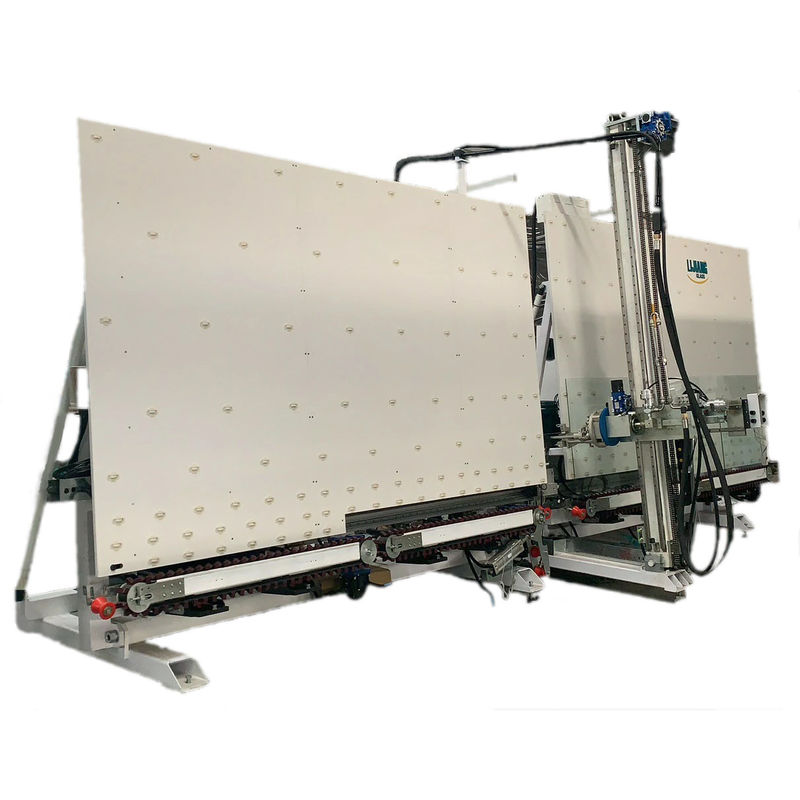

Double Glazing Glass Processing 4L/Min Glass Sealing Robot

Double Glazing Glass Processing 4L/Min Glass Sealing Robot
Double Glazing Glass Processing 4L/Min Glass Sealing Robot Double Glazing Glass Processing 4L/Min Glass Sealing Robot

Large Image :  Double Glazing Glass Processing 4L/Min Glass Sealing Robot

Product Details:
Place of Origin: China
Brand Name: JINAN LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Container
Delivery Time: Within 20days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Double Glazing Glass Processing 4L/Min Glass Sealing Robot

Description
Name: Automatic Double Glazing Glass Sealing Robot Applicantion: Insulating Glass Processing
Fuction: Sealant Extruder Max Glass Size: 2500*4000mm
Min Glass Size: 300*300mm Working Speed: 5-40m/min
Glass Thickness: 12-50mm Air Pressure: >0.6MPa
Power: 380V 12kw Usage: Silicone Extruder
Dimension: 8700*2000*3500mm Squeeze Pressure: 32MPa
High Light:

Glass small extruder machine

,

4L/Min sealant dispensing equipment

Automatic Double Glazing Glass Sealing Robot /Automatic Insulating Glass Gluing Machine

Product overview of Automatic Insulating Glass Gluing Machine

The automatic sealing machine is used for sealing the outer layer of the insulating glass. Through the servo mechanism, the mixed insulating sealant is evenly applied to the outer layer of the insulating glass to help the sealing and bonding performance of the insulating glass



Equipment advantage of Automatic Insulating Glass Sealing Machine

•Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine

•4sections, can storage glass
•Adopt timing belt, smooth transfer and accurate position
•Automatically repair glass corners with scraper and roller
•Automatically measure glass size, glue depth (30mm)
•Every auto-function is with manual operation
•Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional)
•One set of booster pump controls two groups of sealants (Optional)
•Can use silicone, polysulfide and silicone structural sealants
•Glue head is in the front of the machine,which is easy for coating step glass
•Can be connected with insulating glass processing line With code scanning function(Optional)


Main feature of Double Glazing Glass Sealing Robot

1. Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 0Double Glazing Glass Processing 4L/Min Glass Sealing Robot 1

2.The glass corners are full without air bubbles, smooth surface, no corner trimming required

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 2



3. Automatically measure glass size, glue depth and glue speed with linear adjustment

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 3

4.Adopt 8 sets Japan ANCHUAN servo motors

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 4





5.Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 5



6.Glue system can be selected

One Set of Glue System Equipped with single A component and single B component.

Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 6



7.Timing belt

The time belt device ensure that glass can be smooth transmission and positioned accurately.

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 7



8. Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 8



Tech Parameters of Sealant dispensing equipment

Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm



Detail of Insulaing Glass Sealing equipment

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 9

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 10

Related products

Sealant-spreading Machine LJST02A

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 11

Main feature

Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm





Double Glazing Glass Processing 4L/Min Glass Sealing Robot 12

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 13

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 14

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 15

Double Glazing Glass Processing 4L/Min Glass Sealing Robot 16
