Edge Deletion Insulating Glass Production Line

Edge Deletion Insulating Glass Production Line
Edge Deletion Insulating Glass Production Line Edge Deletion Insulating Glass Production Line Edge Deletion Insulating Glass Production Line

Large Image :  Edge Deletion Insulating Glass Production Line

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Edge Deletion Insulating Glass Production Line

Description
Name: Vertical Low-e Edge Deleting Machine Advantage: Servo Motor Control
Working Speed: 2-29m/m
High Light:

glass processing machines

,

double glazing production

Hot Sell Automatic Vertical Low-e Coating Edge Deletion Machine of insulating glass

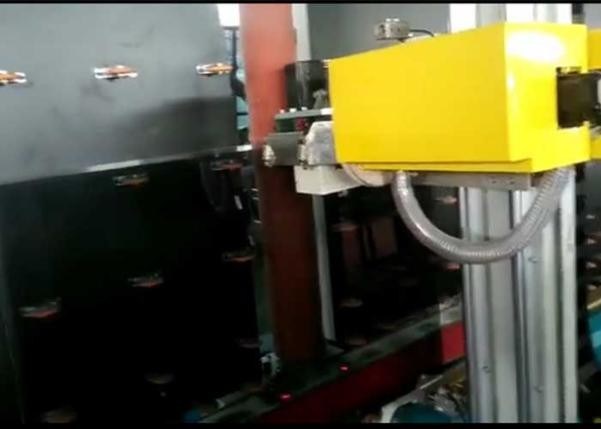

Smart Vertical Low-e Edge Deleting Machine —for Low-e Glass

Edge Deletion Insulating Glass Production Line 0



Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.

►Main feature

1.Two-way glass access

2.Auto measure the size and the thickness

3.Auto distinguish coating side of low-e glass(optional)

4.Auto-modified function

5.The pressure of edge deleting is stable and adjustable

6.Safety protection device auto-dedusting function

7.PLC control system,touch screen interface

8.Six servo control systems



Edge Deletion Insulating Glass Production Line 1

►Main technical parameter

Transmission speed 2~29m/min
Edge finish speed 2~29m/min
Glass thickness 3~15mm
Diameter of grinding wheel 200mm
Width of grinding wheel 10/12/15mm
Grinding wheel speed 0~3000r/min
Min.Glass 400×400mm
Max. Glass 2500×4000mm
Conveyor height 500mm
Total air consumption 100L/ min
Total weight 3700KG
Dimensions 9700×2500×3400mm



►Main Parts
Edge Deletion Insulating Glass Production Line 2

Edge Deletion Insulating Glass Production Line 3

Edge Deletion Insulating Glass Production Line 4

1,Transmission section

Two-way glass access,from left/right.

Auto-identification surface.

The width of edge deleting can be adjusted.

Edge Deletion Insulating Glass Production Line 5Edge Deletion Insulating Glass Production Line 6





2,Electrical components

We adopt SIMENS and DELTA







Edge Deletion Insulating Glass Production Line 7Edge Deletion Insulating Glass Production Line 8

Glass after edge deleting

Edge Deletion Insulating Glass Production Line 9



Low-E coating checking system





Edge Deletion Insulating Glass Production Line 10





Shape glass processing





Edge Deletion Insulating Glass Production Line 11



Edge Deletion Insulating Glass Production Line 12

LJBZ2535 Vertical Automatic Insulating glass production line

APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

LJBZ2535 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)



1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:

Gas filling on line syetem(option)
About Gas filling online of LJBZ2535 Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing
process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.
Technical data
Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight

6500kg



Edge Deletion Insulating Glass Production Line 13



Edge Deletion Insulating Glass Production Line 14Edge Deletion Insulating Glass Production Line 15Edge Deletion Insulating Glass Production Line 16
