10 ~ 150 Mm Arbitrarily Insulating Glass Production Line

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line
10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 10 ~ 150 Mm Arbitrarily Insulating Glass Production Line

Large Image :  10 ~ 150 Mm Arbitrarily Insulating Glass Production Line

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line

Description
Name: Vertical Low-e Edge Deleting Machine Advantage: Servo Motor Control
Working Speed: 2-29m/m
High Light:

glass processing machines

,

double glazing production

Automatic Vertical Low-e Coating Edge Deleting Machine of insulating glass

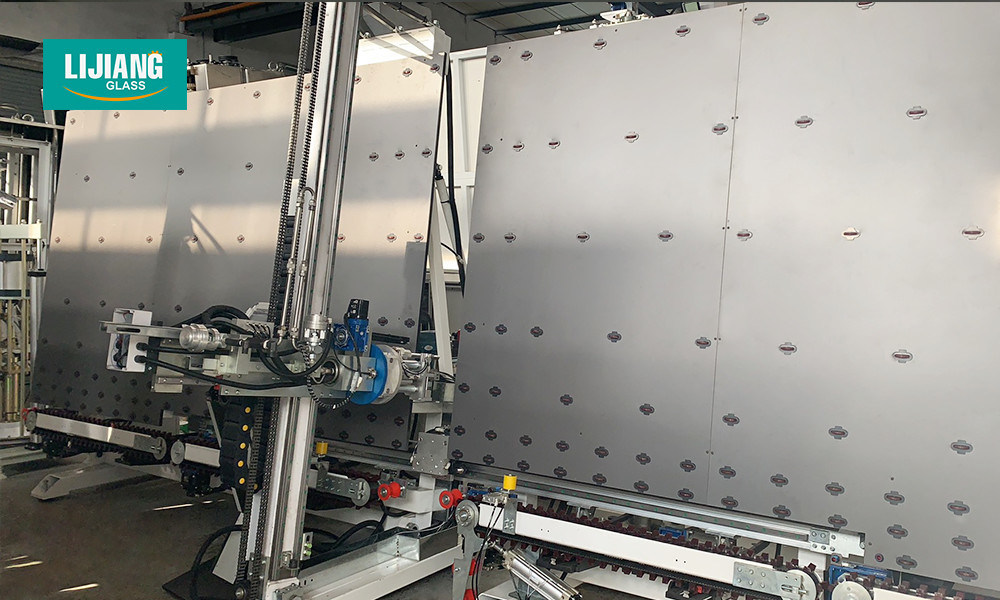

Smart Vertical Low-e Edge Deleting Machine —for Low-e Glass

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 0



Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.

►Main feature

1.Two-way glass access

2.Auto measure the size and the thickness

3.Auto distinguish coating side of low-e glass(optional)

4.Auto-modified function

5.The pressure of edge deleting is stable and adjustable

6.Safety protection device auto-dedusting function

7.PLC control system,touch screen interface

8.Six servo control systems



10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 1

►Main technical parameter

Transmission speed 2~29m/min
Edge finish speed 2~29m/min
Glass thickness 3~15mm
Diameter of grinding wheel 200mm
Width of grinding wheel 10/12/15mm
Grinding wheel speed 0~3000r/min
Min.Glass 400×400mm
Max. Glass 2500×4000mm
Conveyor height 500mm
Total air consumption 100L/ min
Total weight 3700KG
Dimensions 9700×2500×3400mm



►Main Parts
10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 2

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 3

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 4

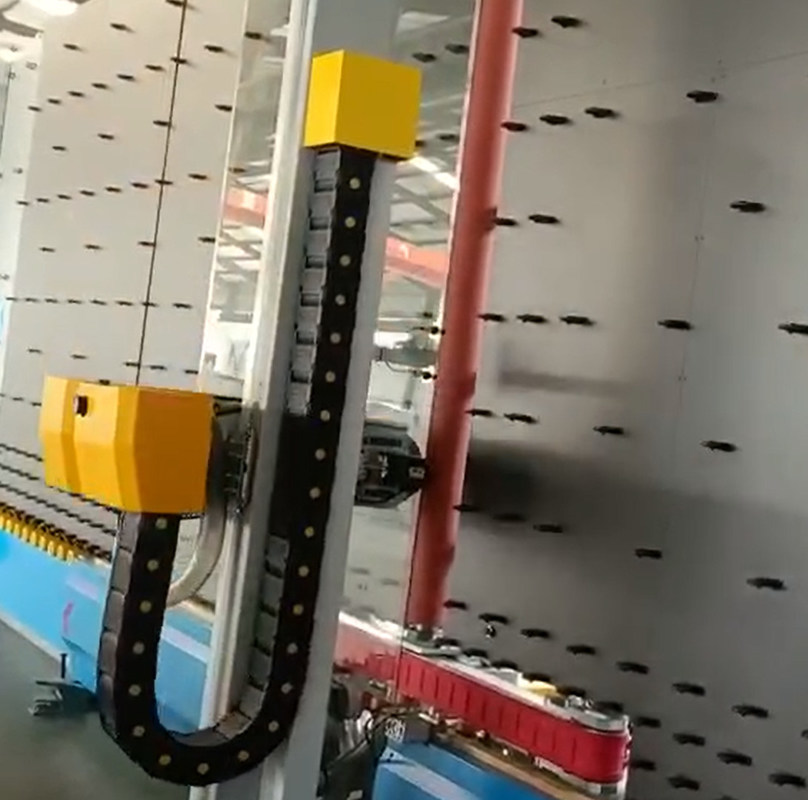

1,Transmission section

Two-way glass access,from left/right.

Auto-identification surface.

The width of edge deleting can be adjusted.

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 510 ~ 150 Mm Arbitrarily Insulating Glass Production Line 6





2,Electrical components

We adopt SIMENS and DELTA







10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 710 ~ 150 Mm Arbitrarily Insulating Glass Production Line 8

Glass after edge deleting

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 9



Low-E coating checking system





10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 10





Shape glass processing





10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 11

10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 12

Glass Washing Machine LJLBQJ2500



Structural characteristics:

* The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder;
* Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency;
* The rubber roller is made of vulcanized rubber with stainless steel shaft;
* The washing part in contact with water is made of stainless steel;
* Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;
* Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);
* Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);
* The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;
* Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable,the service life is long, realizes the cleaning high request special glass;
* Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain;
* Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
* Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)


10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 13



10 ~ 150 Mm Arbitrarily Insulating Glass Production Line 1410 ~ 150 Mm Arbitrarily Insulating Glass Production Line 1510 ~ 150 Mm Arbitrarily Insulating Glass Production Line 16
