Product Details:
|
| Name: | Desiccant Filling Machine | Filling Aluminum Frame’s Maximum Size: | 2000mm*2000mm |
|---|---|---|---|
| Filling Aluminum Frame’s Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
| Air Source: | ≥0.65MPa | ||
| High Light: | glass filling machine,desiccant filler |
||

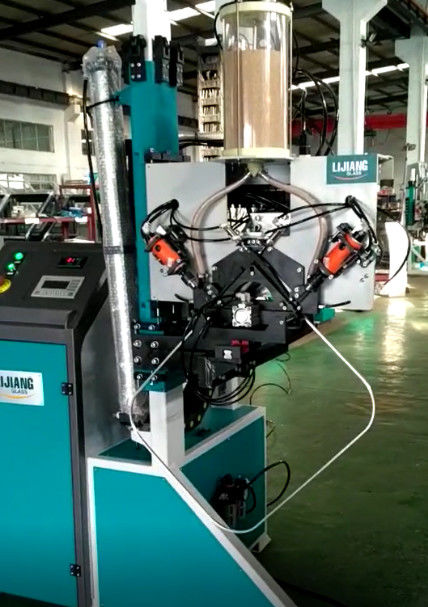

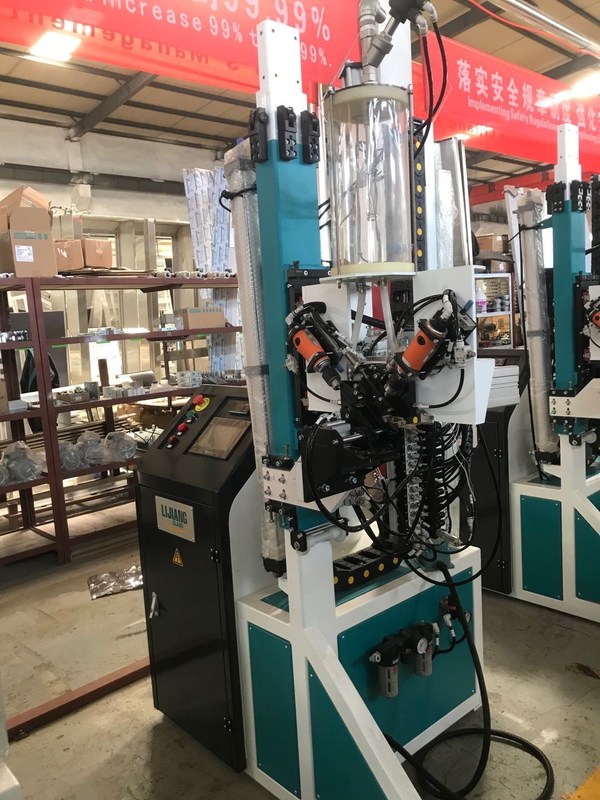

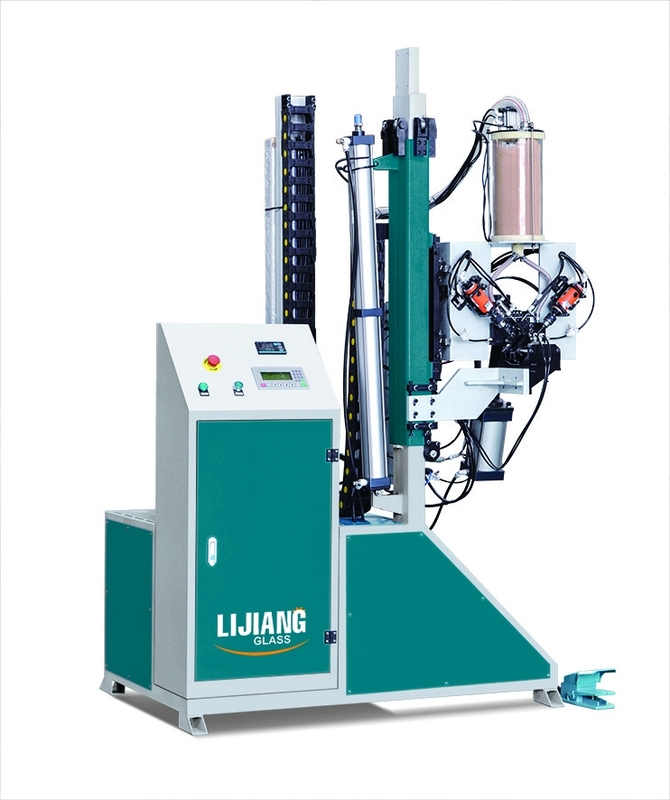

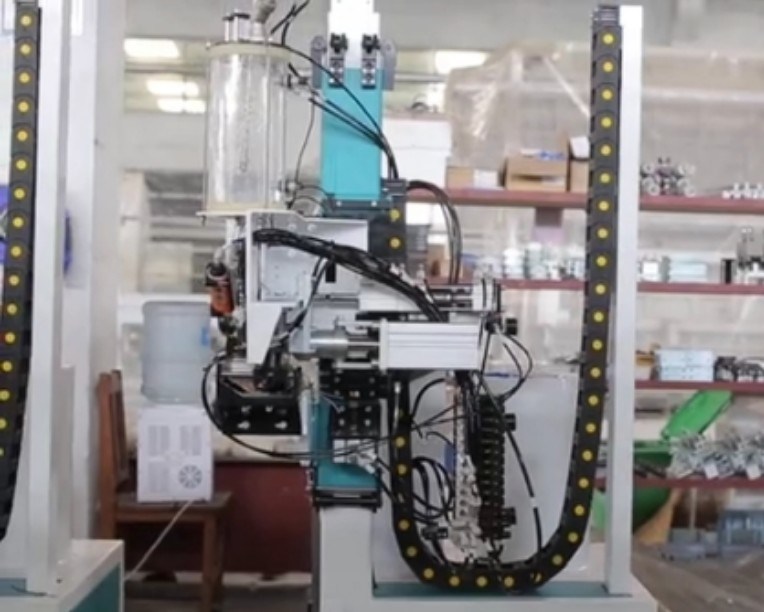

The desiccant filling machine can automatically realize the action of drilling holes in the isolation frame, filling desiccant and sealant. The control system of the desiccant filling machine is produced by Siemens of Germany. The filling speed is fast and the operation is stable, ensuring the effective sealing performance of the sealant. The desiccant filling machine improves the quality of insulating glass, which is an indispensable equipment in the processing of insulating glass.
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
|
Low voltage electrical apparatus |
German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

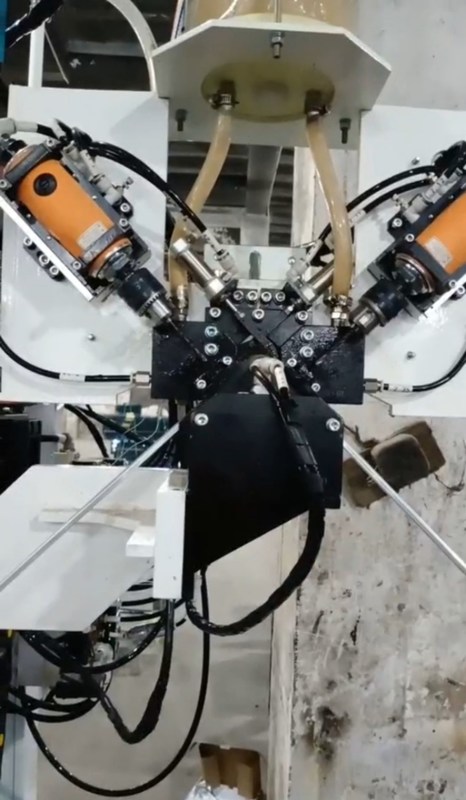

1. Machine head protection device.
2. Adding glue is safe and convenient.
3. All electrical components are German brand Siemens.
4.Desiccant is automatically loaded from the material barrel.
(When the material is used up, the sensor will give an alarm and the desiccant will be automatically loaded)
5. The touch screen interface is simple and clear; the filling time can be adjusted according to the size of the interval frame in the touch screen
6.All electrical wires have ID number, it matches the specification, it is very easy to communicate even after sale.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful springCity-Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign companies, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on. At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced vertical automatic insulating glass production line with filling gas, vertical insulating glass sealing robot, automatic interval bending machine, automatic dehumidifying filling machine and new automatic butyl rubber extruder, Its technology and quality have reached the highest leading level in China.
With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and creating a new world together.
