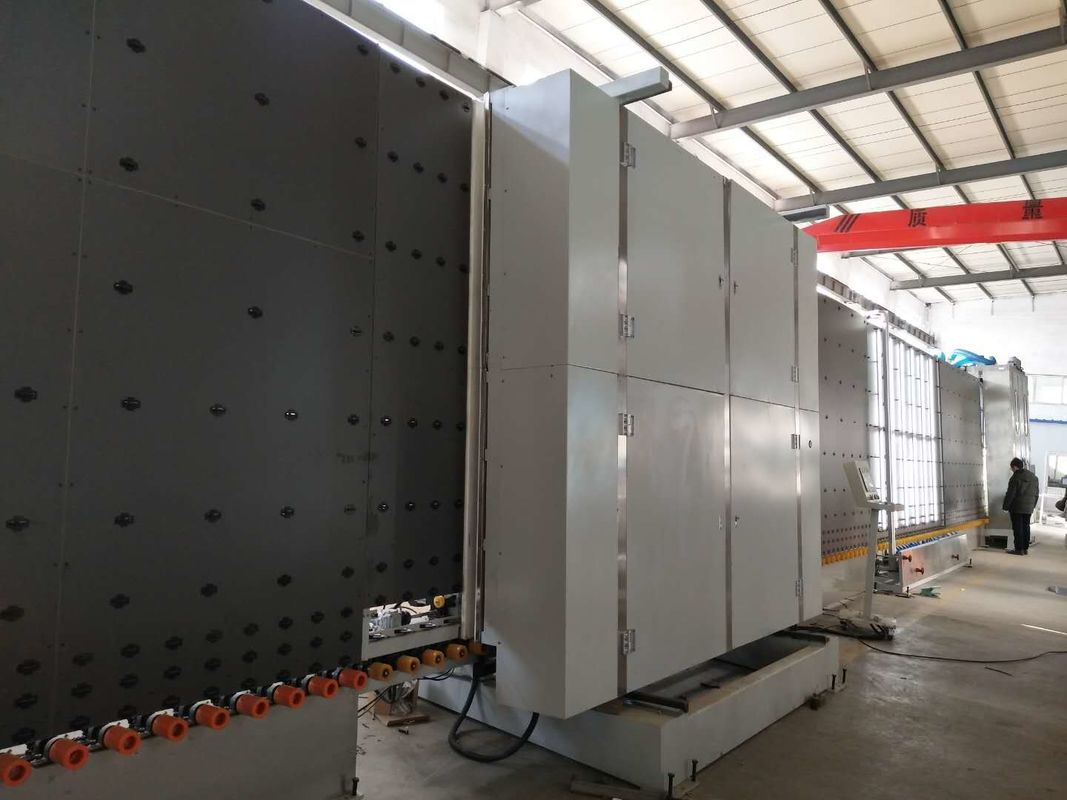

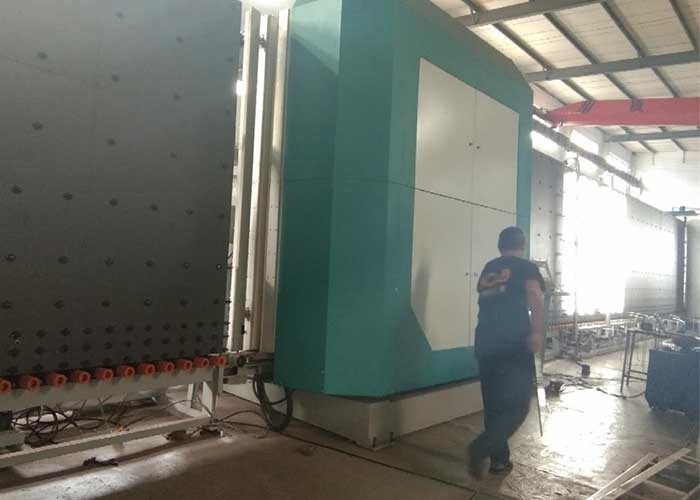

Double Glazing Glass Argon Gas Filling IG Line

Double Glazing Glass Argon Gas Filling IG Line With Washing And Pressing Machine

Main performance features:

• On board automatic filling gas function
• On line automatic detection system argon gas content
• High strength polymer spray back plate, folding structure
• PLC control system, human-machine interface touch screen
• Automatic identification coating and Low-E glass
• The online and offline Low-E glass can be washed
• Water tank with automatic temperature control and water washing system
• Noise reduction system with stainless steel materials and air drying system
• Display the washing speed
• Intelligent intermittent work, good energy saving effect
• Digital display glue depth adjustment device
• Adjustable matrix separated plate pressure system
• Automatic external rotary positioning system of glass
• Connection mode of aviation plug
• Automatic cooling system of electric cabinet
• The automatic positioning system of triple insulating glass, shaped glass and step glass

•The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
•PLC control system, touch screen interface
•Using Siemens servo motors
•Applicable to produce double glass, triple glass

Optional functions:
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

Technical data

Main details of the gas filling features:

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas
