Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Overall Dimension: | 8700mm*2000mm*3500mm |
|---|---|---|---|
| Type: | Horizontal | Model: | LJTJ2025 |
| Color: | Customers' Request | Min Glass Size: | 170mm*400mm (2000mm Machine) |
| Max Glass Size: | 2500mm*3500mm | Control System: | SIMENS |
| Brand: | LiJiang | Voltage Power: | 3P 380V 50HZ |
| Plane Angle: | 6°- 9° | ||
| High Light: | glass processing machines,double glazing production |
||

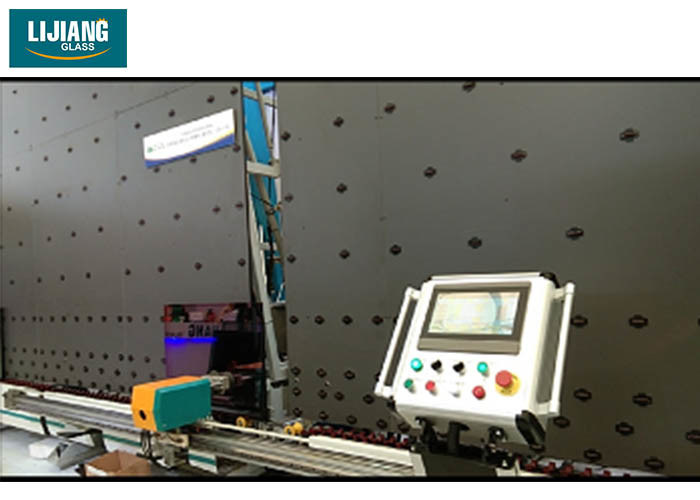

LIJIANG factory new line Vertical Sealing Robot glass robot LJTJ2025, sealing robot machine ,ssealing glue
ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020
Application
Min & Max glass sizes can be optional
Adopt 8 servo motors
Adopt Japan ANCHUAN servo control system with stable performance
Automatically measure glass size, glue depth and glue speed with linear adjustment
Adopt timing belt to keep smooth convey with accurate position
Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
The glass corners are full without air bubbles, smooth surface, no need to
Full automatic and high-efficiency machine
New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
Automatically repair glass corners with beautiful surface
Smooth convey without scratch and pollution
Single-function parts are equipped with manual functions, easy adjustment

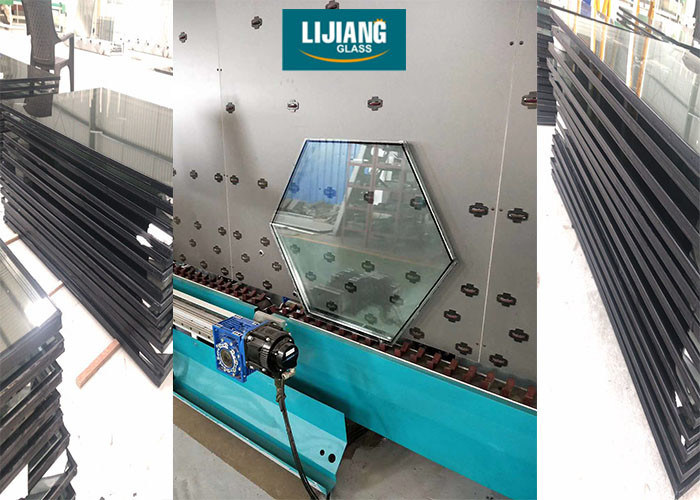

Shaped IG units (Optional)
Stepped IG units with four sides (Optional)
Double and Triple IG units
One Set of Pump A & Pump B
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.When the pressure increasing, more Glue B will flow back automatically, saving materials.
Dyad Body Device
The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.Adopting two suckers for preventing to move glass during sealing.Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting scraper blade to scrape out extra glue and no need to repair glass corners by second time.The time belt device ensure that glass can be smooth transmission and positioned accurately.Automatically position the glass and sensor glue deep, the coating speed can be adjustable online.
Stepped glass (Optional)
We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.
Equipped with MANUAL DEVICE
Every separate part is equipped with manual operation, be easy to adjust in case.The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.Every separate part is equipped with manual operation, be easy to adjust in case.We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.
²Technical data
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
