Product Details:
|
Name: | Insulating Glass Machine | Function: | IG Glass Production |
---|---|---|---|
Type: | Vertical | Model: | LJBZ025 Gas Filling |
Color: | Customers' Request | Min Glass Size: | 450mm*280mm |
Max Glass Size: | 2000mm*2500mm | Control System: | SIMENS |
Brand: | LiJiang | Total Power: | 3P 380V 50HZ |
High Light: | glass processing machines,double glazing production |
filling gas 2500mm lijiang auto brand new Insulating Glass Production Line, GLASS LINE ,green 2020new production

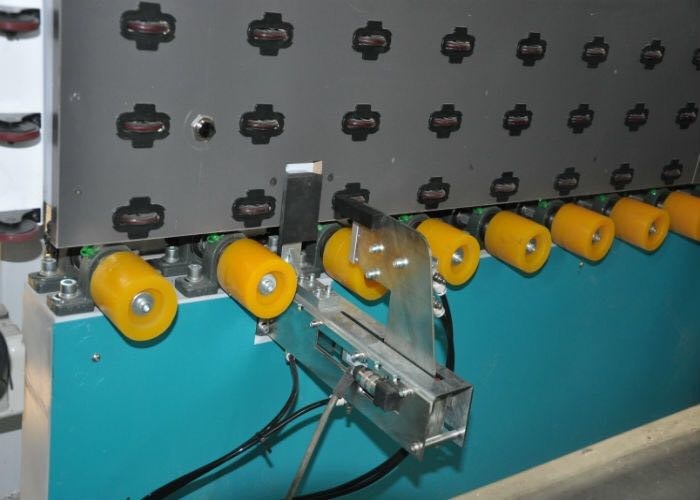

IJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production high quality.
Transfer wheels VS air-floating technology

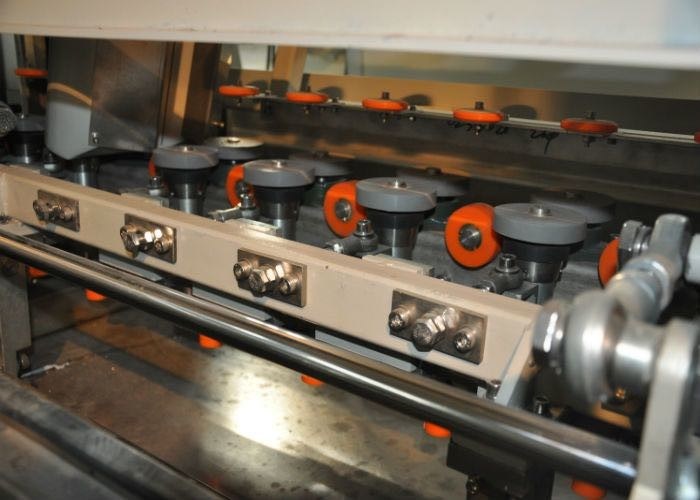

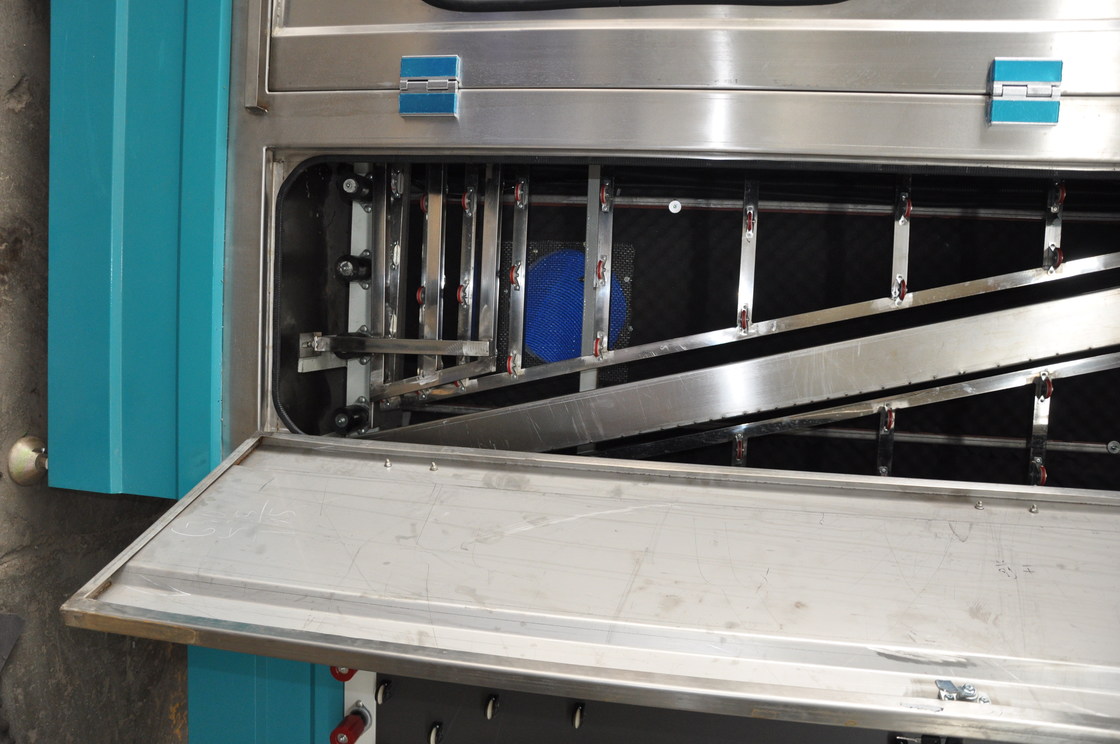

he front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.
Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
When the opening time of the valve is positive, the first side sticks to the valve and then the glue is discharged before the action is performed according to the setting time.
Negative number when the first side of the sticker, according to the set time advanced action before the glue out
2. The above parameters are very important. The control parameters of the amount of trimming glue should be modified according to the size of glass.
3. Valve closing distance is 0.01 seconds for millimeter mm spray time and valve opening time.
4, Angle 4 pulse spraying and terminal touching are carried out simultaneously, that is, according to the setting time, the amount of gum ejected and the setting distance, the terminal touching is carried out to ensure the last corner of gum spraying.
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |

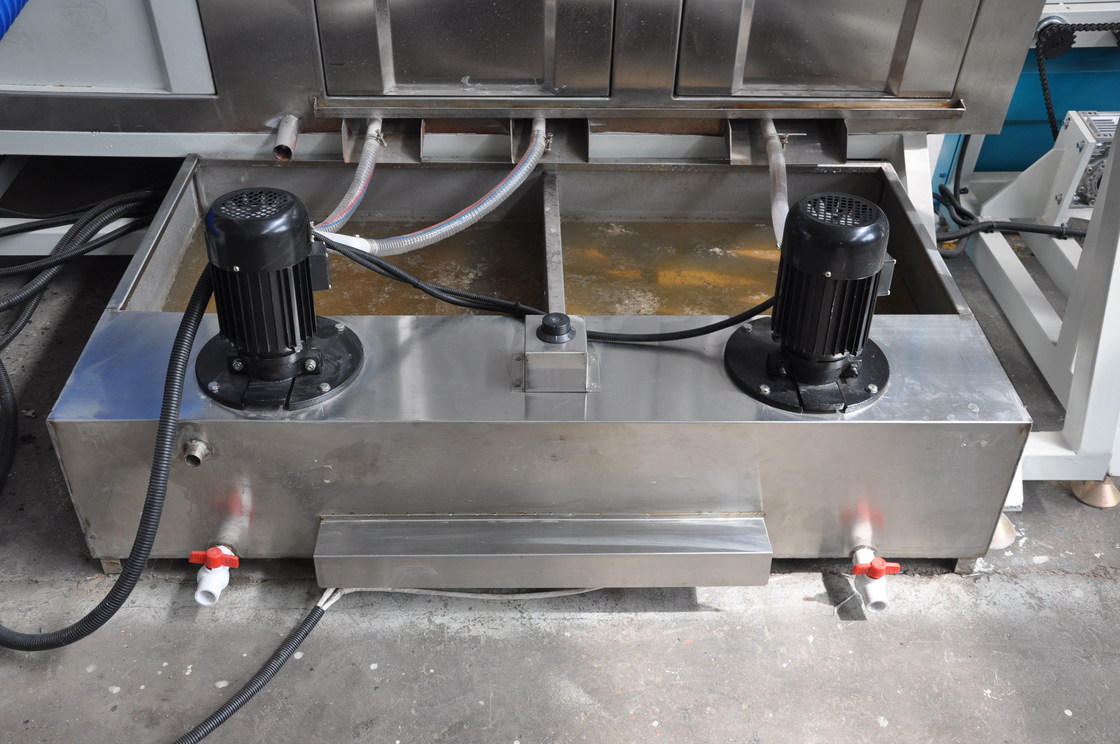

Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
