6000kg 50mm Thickness Insulating Glass Production Line

6000kg 50mm Thickness Insulating Glass Production Line
6000kg 50mm Thickness Insulating Glass Production Line 6000kg 50mm Thickness Insulating Glass Production Line 6000kg 50mm Thickness Insulating Glass Production Line 6000kg 50mm Thickness Insulating Glass Production Line 6000kg 50mm Thickness Insulating Glass Production Line

Large Image :  6000kg 50mm Thickness Insulating Glass Production Line

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD56000/SET
Packaging Details: wooden box
Delivery Time: 15work days
Payment Terms: L/C, T/T
Supply Ability: 15sets/month

6000kg 50mm Thickness Insulating Glass Production Line

Description
NAME: Vertical Automatic Insulating Glass Production Line Power(W): 37kw
Dimension(L*W*H): 19500*3500*3200mm Glass Thickness: 50mm( Can Be Special Design)
Weight: 6000kg
High Light:

glass processing machines

,

double glazing production

LJBZ2535 Vertical Automatic Insulating glass production line



APPLICATION

As the most important process of insulating glass production, we are experts in glass cleaning, transmission pressing and gas filling (optional) among others. The production line can do double glazing, triple glazing, corrugated glazing.

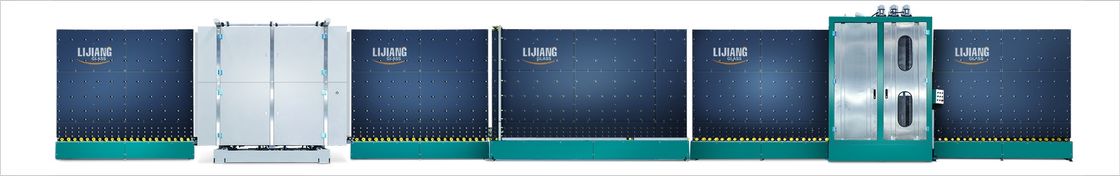

LJBZ2535 vertical automatic insulated glass production line contains 7 parts (standard model: right to left)
1, loading section (with low e check)
2, washing and drying section (low e glass can be washed)
3, conveyor section
4, checking and assembly section
5, conveyor, measuring and sensor section
6, press parts with gas filling
7, semi-automatic PET bottle blowing machine unloading section bottle making machine bottle molding machine advantage:

Line system gas filling (optional)
For gas filling of LJBZ2535 vertical automatic insulated glass production line, you can enter the appropriate gas ratio value on the touch screen. You can view the entire gas filing on the touch screen during the gas filling process.
Process visually. (You can watch the video I sent earlier.) We are the first and only company to be able to display Argon percentage on a touch screen online. This is very convenient for customers. Displayed when filled with argon gas. The entire process on screen. When it reaches the customer dataset, it will alarm and stop. Saves argon gas. Save time

specification



Max. glass size
2500mm*3500mm
Min. glass size
280mm*400mm
Glass thickness
3-15mm
Insulating glass thickness
50mm / 60mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
Washing brushes
3 pairs
Water supply
Water consumption:0.5t/h conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
3P 380V 50HZ 40KW
Dimension
23500*3500*3700mm
Weight
6500kg









・ Stable performance

・ Online gas filling (optional)

・ High strength polymer plastic spray back plate, folding structure

・ PLC control system, touch screen interface

・ Coating & LOW-E glass automatic identification

-Can wash glass online & offline

・ Layered cleaning system

・ Automatic temperature control of water tank, water replenishment system

· European silencer system & stainless steel drying system

・ Intelligent batch type energy saving system

・ Digital display and sealant depth adjustment device

Adjustable matrix separation press system

・ Automatic outer rotating glass positioning system

· Aviation plug cable connect way

・ Triple IG, automatic forming IG assembly and positioning system

・ Universal wheel in tilt table has balance weight device

・ Servo control step IG system, module function, overlay function

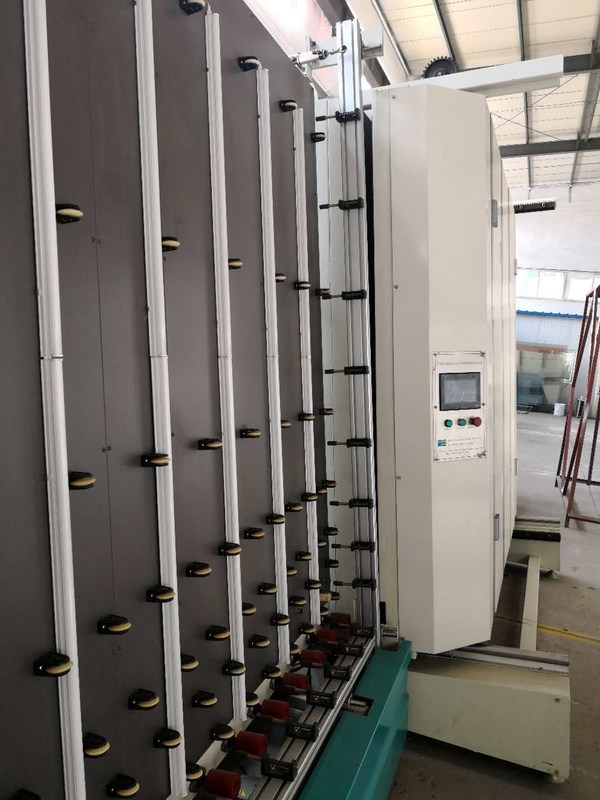

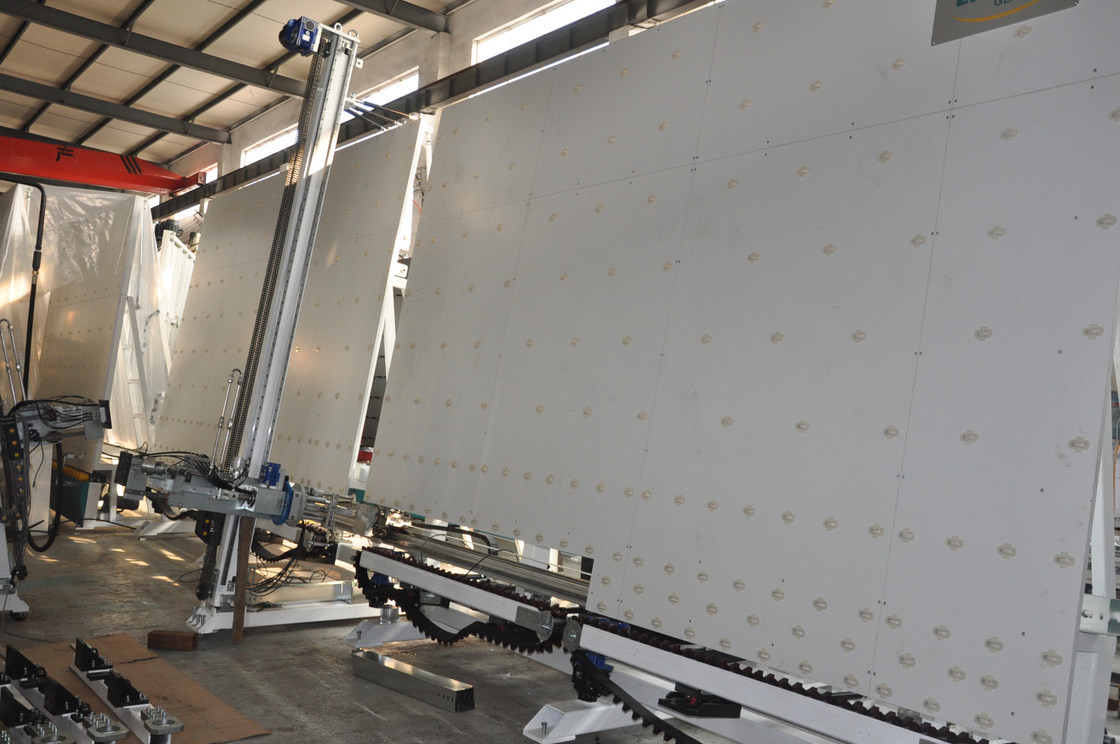

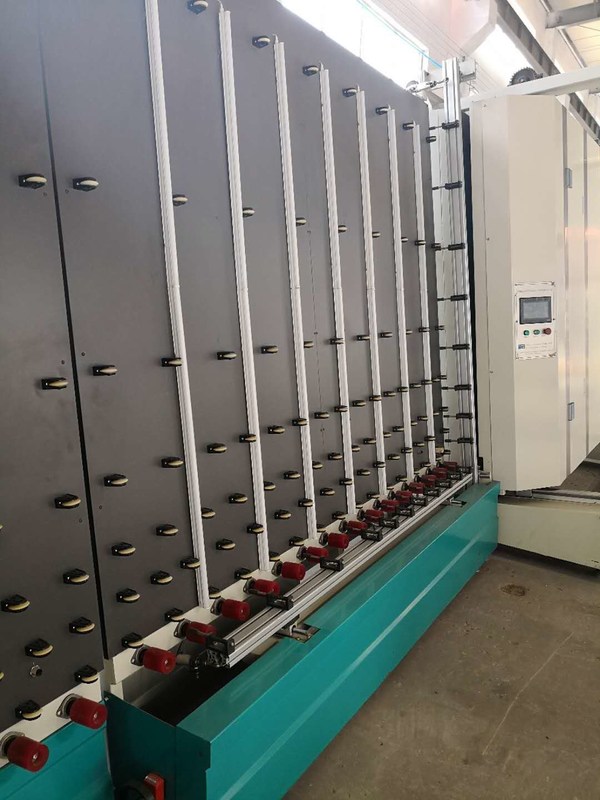

6000kg 50mm Thickness Insulating Glass Production Line 06000kg 50mm Thickness Insulating Glass Production Line 16000kg 50mm Thickness Insulating Glass Production Line 26000kg 50mm Thickness Insulating Glass Production Line 3

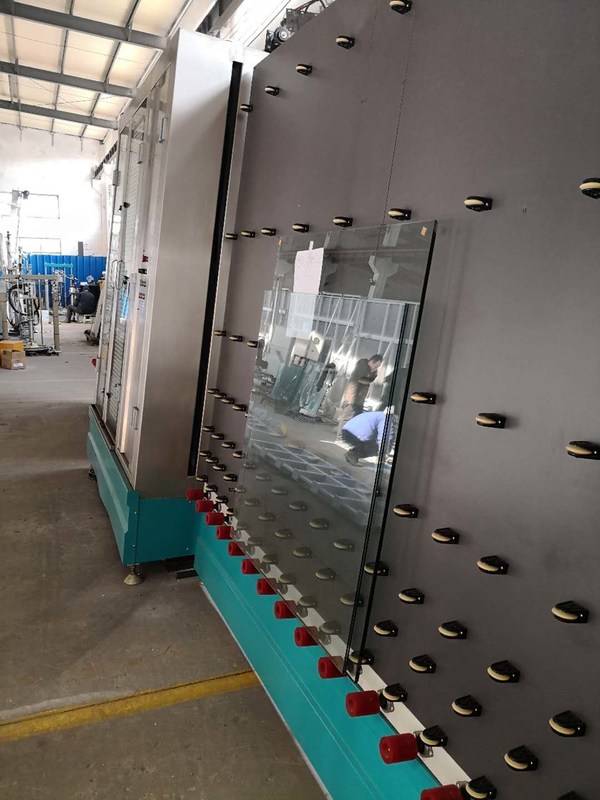

1. Transfer wheels VS air-floating technology

The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.





2. There is the Low-e glass sensor in the washing machine

This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.







3. The washing machine uses 304 stainless steel materials

The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.































6000kg 50mm Thickness Insulating Glass Production Line 46000kg 50mm Thickness Insulating Glass Production Line 56000kg 50mm Thickness Insulating Glass Production Line 66000kg 50mm Thickness Insulating Glass Production Line 7



6000kg 50mm Thickness Insulating Glass Production Line 8
