2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price

2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price
2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price

Large Image :  2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD120000/set
Packaging Details: container
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 10sets/month

2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price

Description
Name: Automatic Insulating Glass Production Line Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*400mm Glass Thickness: 3-15mm
Insulating Glass Thickness: 50mm / 60mm Glass Washing Speed: 2-10m/min
High Light:

double glazing production

,

insulating glass line

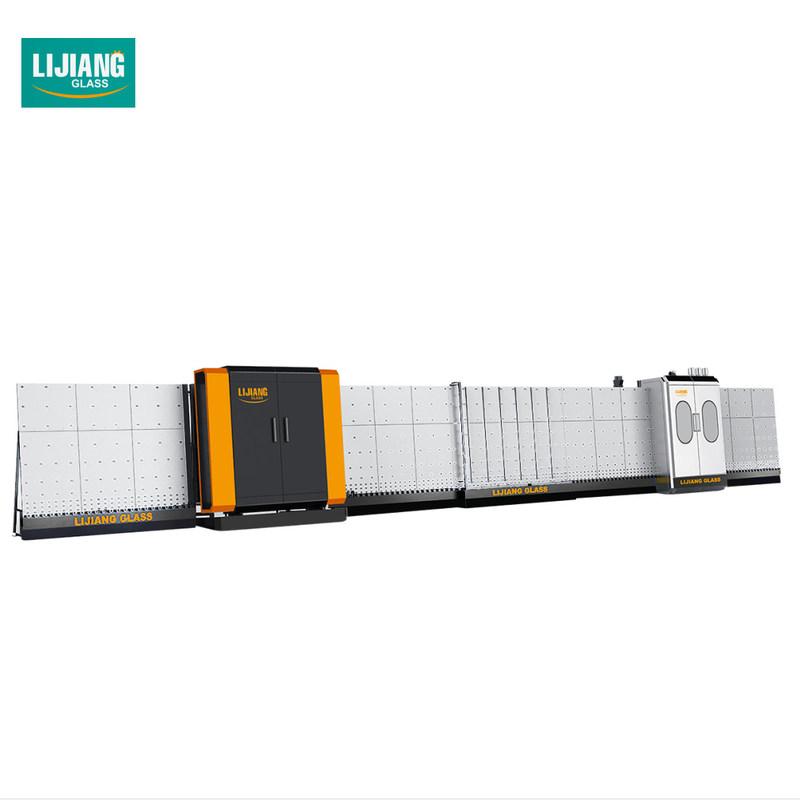

Automatic Insulating Glass Production Line LJBZ2535





APPLICATION



Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and maximize profits.



Now Lijiang has mainly two different digging lines. One uses a transfer wheel to transport glass, and the other is a new technology that uses air flotation technology to transport glass. This new technology is to protect the glass from contamination and leave traces, so the new technology is adopted to improve the high quality of IG products.







Main Features



• Adopts SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Digital display automatically adjusts adhesive depth
• Use servos to control system, modular and overlay functions
• Applicable for manufacturing step IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
• Minimum and maximum glass sizes are optional.





Technical data



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg





Electrical parameters



NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

















































Detailed description



1.The washing machine uses 304 stainless steel materials

The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts.

2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 0







2.The washing machine uses six (nine-e) brushes with a diameter of 0.mm mm.


It has br brushes which are all soft brushes, can clean low glass, flat glass, tempered glass and others. Its diameter is less than 0.mm Bristol, never breaks glass, especially for low e glass.





2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 1













3.Using Europe's advanced anti-noise system to create a good working environment for employees

The noise can be controlled below 90 decibels by using nylon gear and sponges.

2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 2







4.Water. Water heating system and water filter system.


As water quality varies from country to country, using clean water to clean the glass by adopting an air heating system to ensure that the glass was clean enough. What’s more, by using a water filter system to recycle water, save water and keep the water clean.

2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 3



2020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 42020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 52020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 62020 Hot sale Insulating Glass Silicone Sealant Production line With Good Price 7
