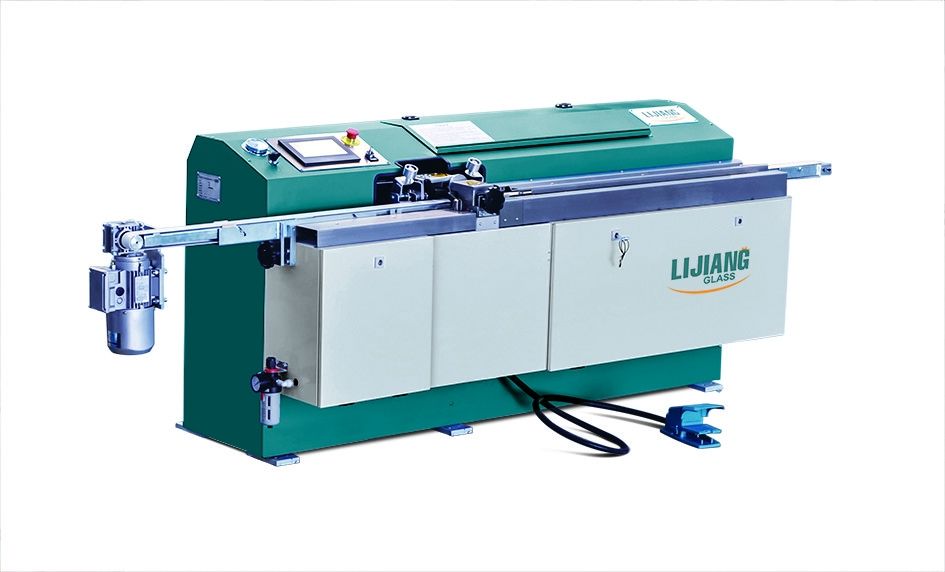

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine
Spacer Bar Sealant Coating Appliance Butyl Extruding Machine Spacer Bar Sealant Coating Appliance Butyl Extruding Machine

Large Image :  Spacer Bar Sealant Coating Appliance Butyl Extruding Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine

Description
Power(W): 5KW Glass Thickness: 1-40mm
Squeeze Pressure: 10-18Mpa Name: Automatic Aluminum Spacer Bar Sealant Coating Appliance Butyl Extruding Machine
High Light:

double glass machine

,

hot melt butyl extruder

Automatic Aluminum Spacer Bar Sealant Coating Appliance Butyl Extruding Machine
The butyl extruder machine type LJTB01 is used to uniformly spread the aluminum spacer frames with hot melt butyl. This equipment uses a large electric control panel which facilitates the operation. The aluminum conveyor is controlled by a frequency converter, and the speed can be adjusted from 0m / min to 47m / min, which has the fastest speed in China. It is very popular for energy saving. Its compression system adopts a pneumatic and hydraulic supercharging system, which makes the compression pressure more stable. The dispensing cylinder uses a vertical rotating support system and facilitates the refilling of butyl. It can extend the life of the clamping system and set the heating time to 24 hours with electricity and air pressure. The distance from the clamping head can be adjusted automatically according to different aluminum spacers. The machine has reached the world technology with the characteristic of full function and stable operating mode.
Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 0
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 1
Machine Details
Automatic butyl extruder machine is used for spreading aluminum spacer frames (and other spacers) evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation easier than before. The speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts German pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The butyl extruder has reached the worldwide technology with the characteristic of complete functions and famous spare parts.
Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 2
Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 3

Company information



Jinan Lijiang Automation Equipment Co., Ltd (LIJIANG GLASS) is located in the beautiful spring city ------ Jinan. It is a company that has integrated research and development of glass processing equipment, sales and service into one. As it is close to the Beijing-Shanghai high-speed train, transportation is very convenient.

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 4
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, creating research and development centers, cooperating with well-known domestic and foreign companies, importing technologies peak, etc. Now our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company has worked with well-known national research institutes, such as the North China Industry Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the IG automatic vertical production line with gas filling line, the IG vertical sealing robot, automatic spacer bending machine, automatic desiccant filling machine and the new fully automatic butyl extrusion machine, its technology and quality have reached the highest level in China.

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 1
With the rapid development of the insulating glass industry, LIJIANG looks forward to working with you for a win-win situation and jointly creating a new world.

Spacer Bar Sealant Coating Appliance Butyl Extruding Machine 6
