Product Details:
|
| Certification: | CE / UL | Voltage: | 220V 1P |
|---|---|---|---|
| Application: | Filling The Dryer Into Double Glazing Glass Frame | Color: | Blue, Red , Optional |
| Power: | 1 KW | Warranty: | 1 Year |
| Product Name: | Desiccant Filling Machine | Dimension: | 1300mm*1100mm*3600mm |
| High Light: | glass filling machine,desiccant filler |
||

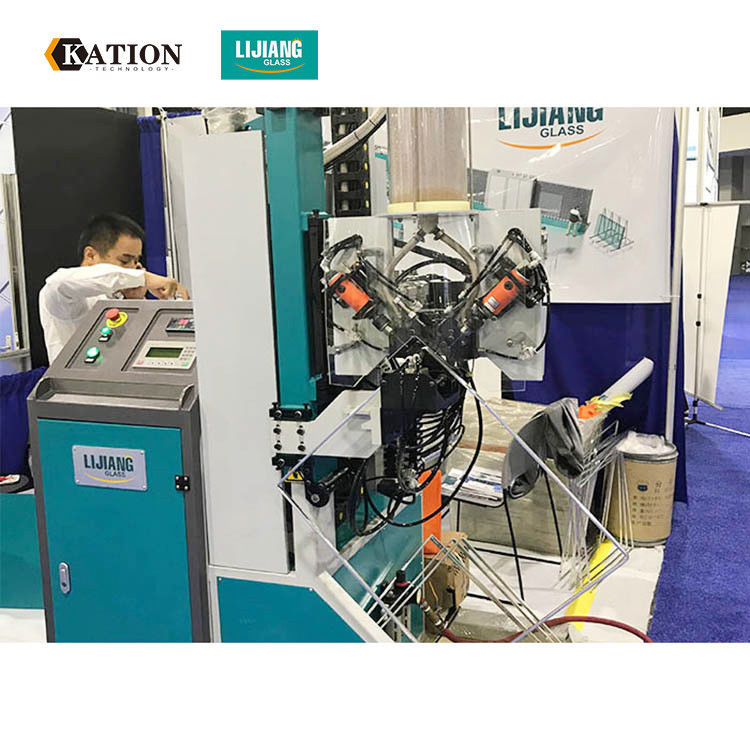

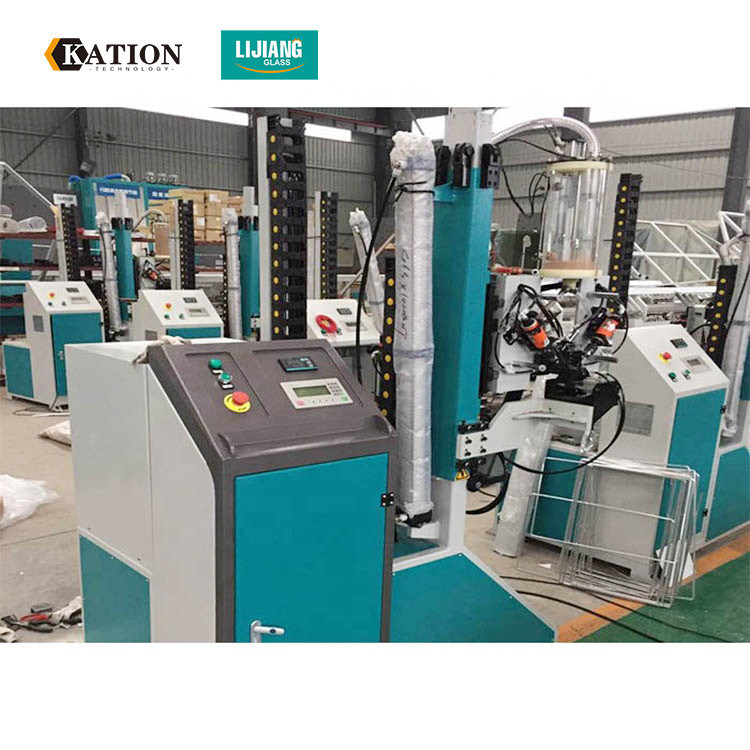

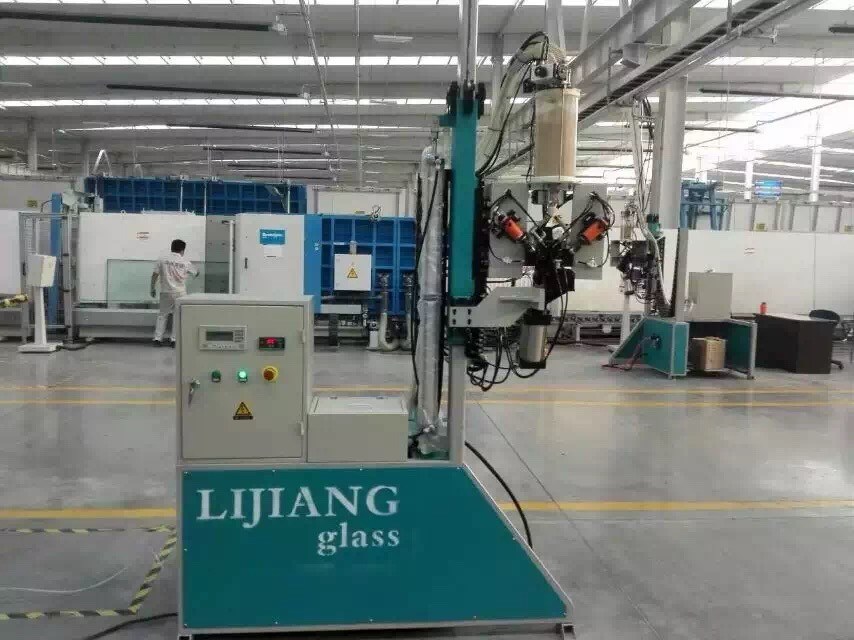

Automatic Desiccant Filling Machine For Molecular Sieve Liquid Equipment
Desiccant filling machine is one auxiliary machine for making insulating glass or double glazing glass. The desiccant filling machine has the automatic one and the manual one. The desiccant filling machine is used to fill the molecular sieve into the spacer frame to dry the air. The automatic desiccant filling machine can load the molecular sieve, drilling the holes , filling the dryer and sealing the holes by butyl glue automatically.
Main feature :
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
Technical data :
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
The Manual Desiccant Filling Machine
Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers, keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
Jinan Lijiang automation equipment Co., Ltd. is located in the beautiful spring city of Jinan. It is a high-tech enterprise integrating research and development, production, sales and service of air glass processing equipment. It is close to Beijing Shanghai high-speed railway, with convenient transportation.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.
