Vertical Low E Film Edge Deletion Machine

Vertical Low E Film Edge Deletion Machine
Vertical Low E Film Edge Deletion Machine Vertical Low E Film Edge Deletion Machine Vertical Low E Film Edge Deletion Machine

Large Image :  Vertical Low E Film Edge Deletion Machine

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000 - 35000 per set
Packaging Details: Container
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

Vertical Low E Film Edge Deletion Machine

Description
Production Name: Vertical Low-e Film Edge Deletion Machine Voltage: 380V 50Hz 3P
Dimension(l*w*h): 9700mm*2500mm*3400mm Weight: 2500kg
Power(w): 15kw Warranty: 1 Year
Glass Thickness: 3 - 15mm Edge Width: 10 -150mm
High Light:

glass edging machine

,

glass grinding equipment

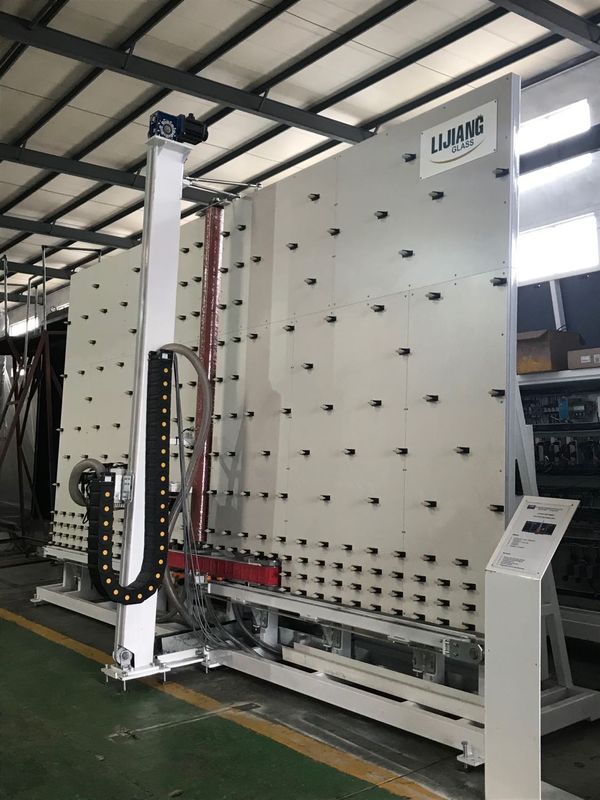

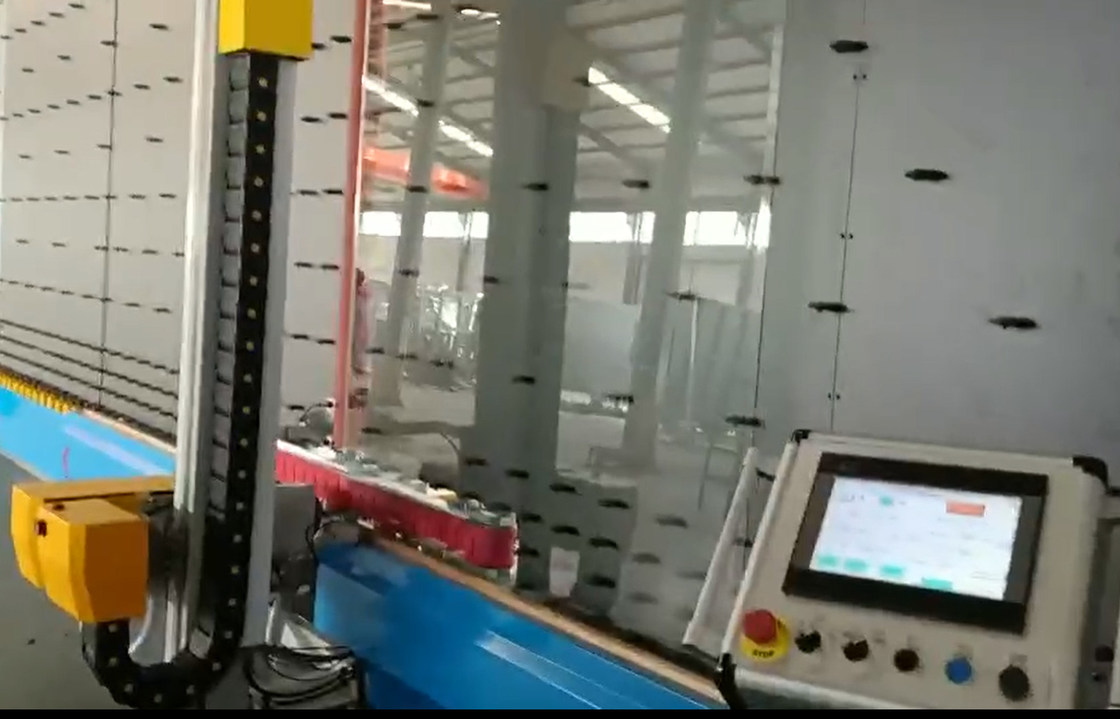

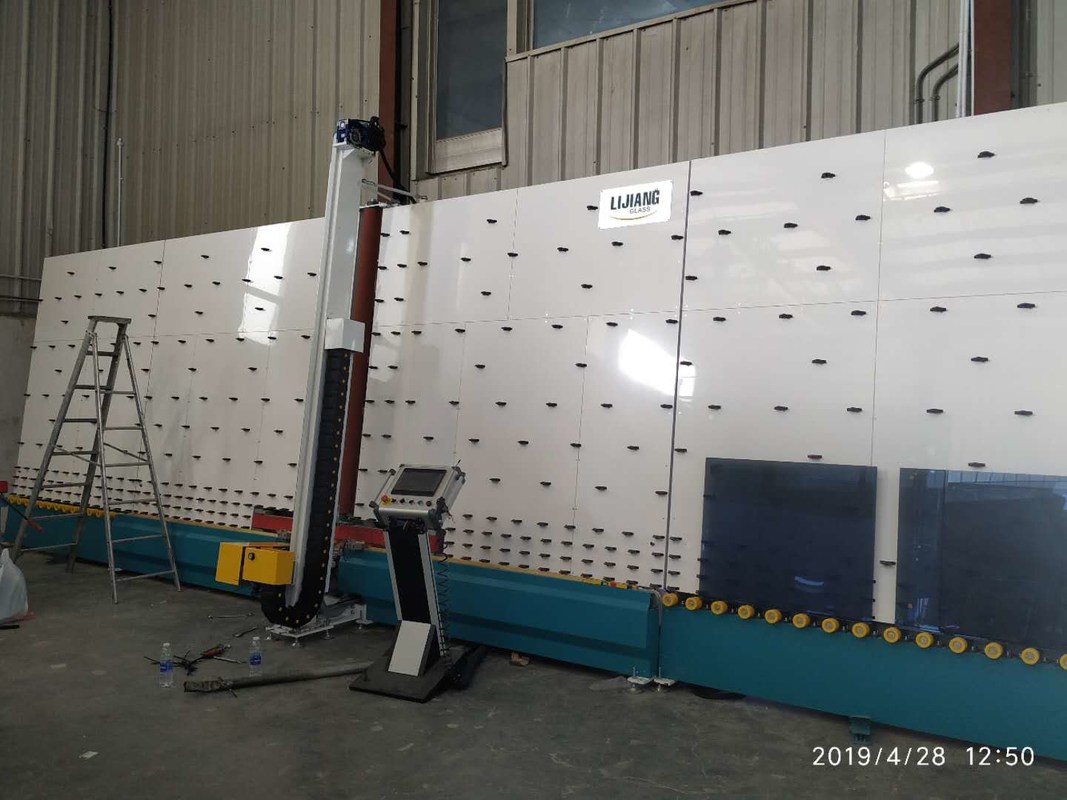

Full Automatic Vertical Low-e Film Edge Deletion Machine For Pressing Double Glazing Glass



The vertical glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. The deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.

The vertical low-e film edge deletion machine can delete the double or triple low-e film.

Vertical Low E Film Edge Deletion Machine 0

Main feature:

Two-way glass access

Delete double and triple silver low-e glass

Automatically measure glass size

Automatically distinguish low-e surface

Edge deletion is adjustable

The head can be rotated 360°

Safe and full automatic device

PLC control system, touch screen interface

Six servos control system

Intelligent control system, can recognize batch processing

Specification :

Max. glass processing size 2500*4500mm
Min. glass processing size 400*280mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Glass thickness 3 - 15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 15KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3700KG

Vertical Low E Film Edge Deletion Machine 1

Electrical parameters

NAME ORIGIN BRAND
Servo motor Taiwan TAIDA
PLC Taiwan TAIDA
Pneumatic component Taiwan AAIRTAC
Low pressure electricity Germany SIEMENS
Circuit breaker Germany SIEMENS
Sensor switch Korea AUTONICS
Approach switch Korea AUTONICS
Limit switch Taiwan TEND
Connector Germany SIEMENS
Frequency converter France SCHNEIDER
Main Button France SCHNEIDER
Intermediate relay Japan OMRON
