Double Glazing PIB Rubber Coating Machine

Double Glazing PIB Rubber Coating Machine
Double Glazing PIB Rubber Coating Machine Double Glazing PIB Rubber Coating Machine Double Glazing PIB Rubber Coating Machine

Large Image :  Double Glazing PIB Rubber Coating Machine

Product Details:
Place of Origin: China Shandong
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20SET/MONTH
Contact Now

Double Glazing PIB Rubber Coating Machine

Description
Control System: Siemens Height: Adjustable
Filling Time: Adjustable Name: Butyl Rubber Coating Machine
High Light:

glass filling machine

,

desiccant filler

Double Glazing Butyl PIB Extruder Machinery Butyl Rubber Coating Machine

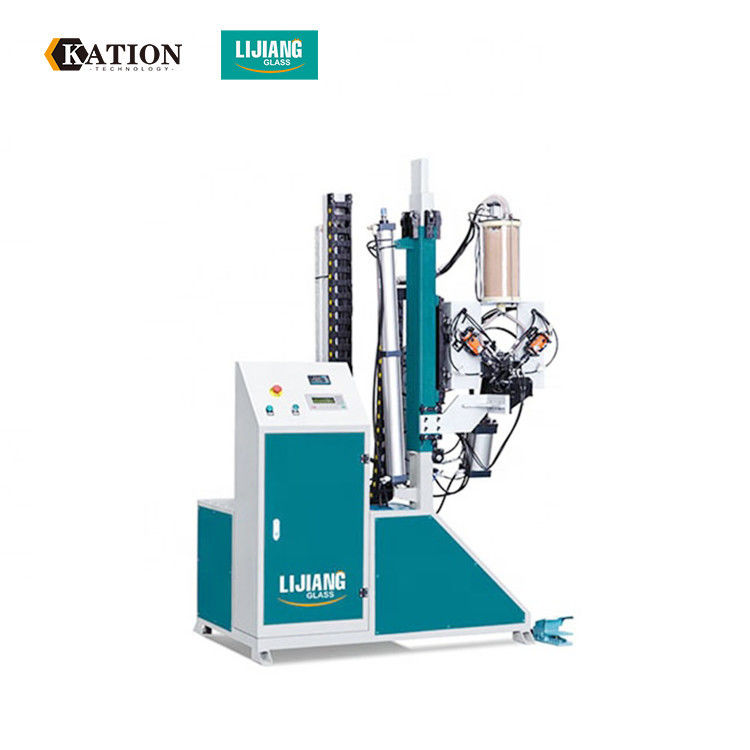

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Double Glazing PIB Rubber Coating Machine 0
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg

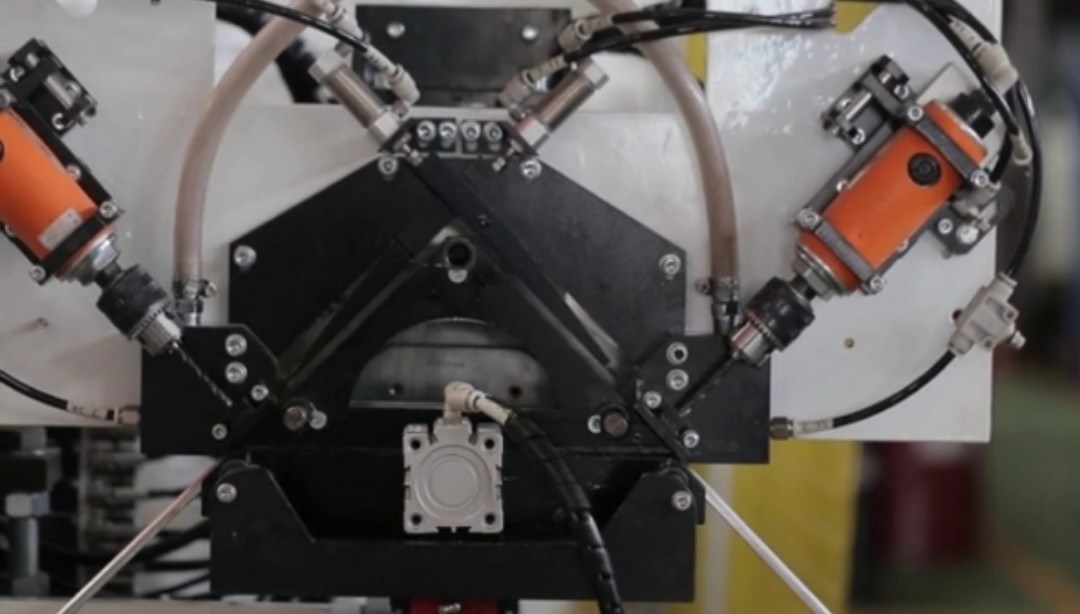

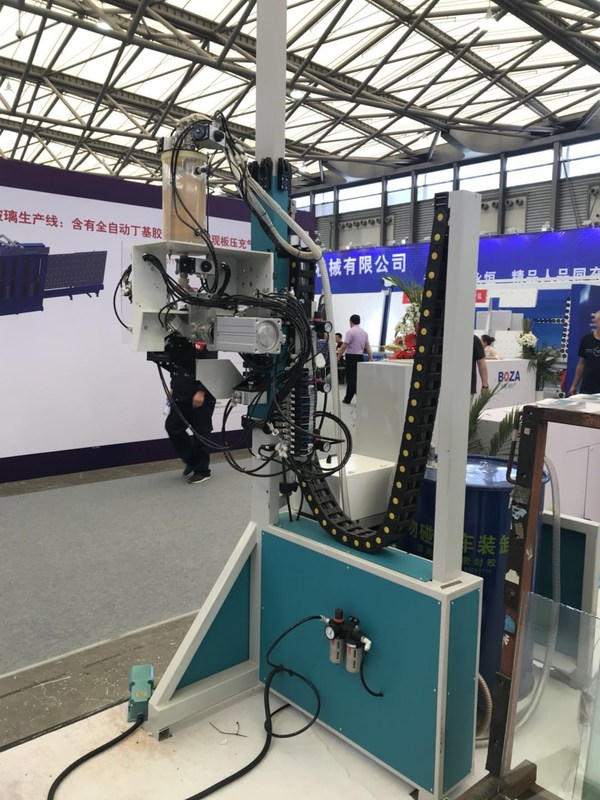

Machine Details:

Double Glazing PIB Rubber Coating Machine 1

About Our Company
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
Double Glazing PIB Rubber Coating Machine 2





Double Glazing PIB Rubber Coating Machine 3
