Product Details:
|
| Max Bending Size: | 2000*2000 | Min Bending Size: | 250*200 |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Name: | Aluminum Spacer Bending Machine |
| High Light: | glass bending machine,industrial bending machine |
||

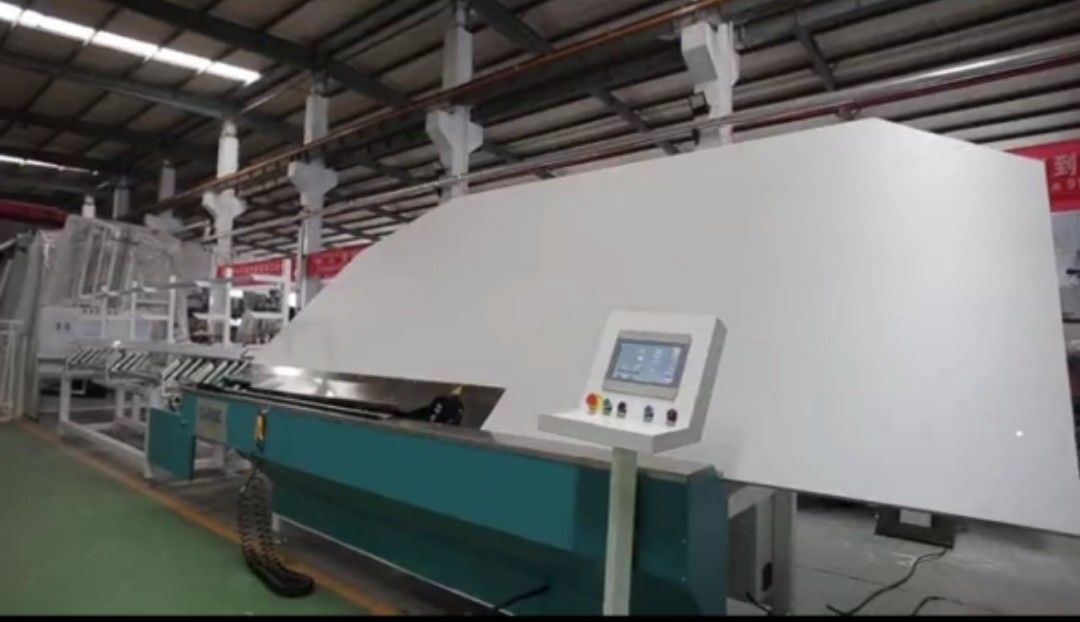

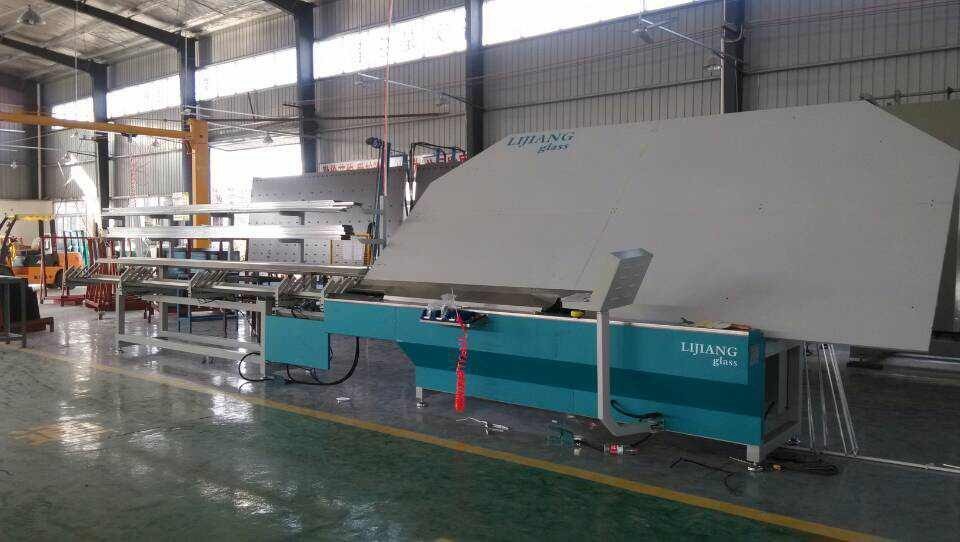

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Equipment details
| Adopt Siemens PLC control system |
| There are 4 Siemens servo |
| Adopt 4 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks. |
| Automatically cut and feed aluminum spacers |

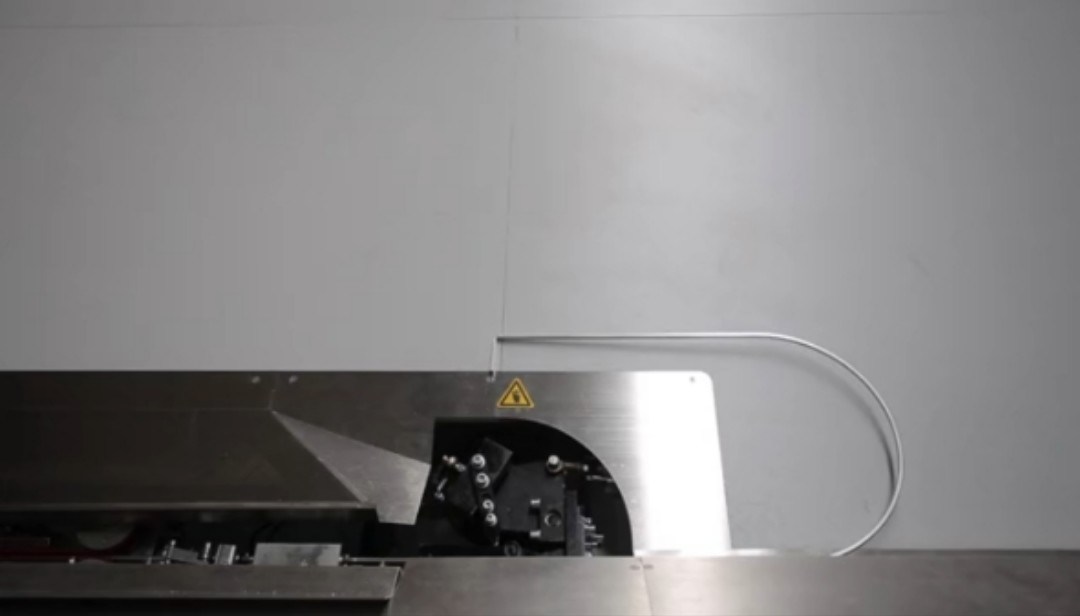

| Bend shaped spacer frames continuously |
| Automatically avoid the connecting corner while bending and cutting |
| The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem. |
|
Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics. |
| The special machine hand device is used to bend big spacer frame |
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
