Horizontal Washing 19mm CNC Glass Cutting Machine

Horizontal Washing 19mm CNC Glass Cutting Machine
Horizontal Washing 19mm CNC Glass Cutting Machine Horizontal Washing 19mm CNC Glass Cutting Machine Horizontal Washing 19mm CNC Glass Cutting Machine

Large Image :  Horizontal Washing 19mm CNC Glass Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJSCLM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Horizontal Washing 19mm CNC Glass Cutting Machine

Description
Name: CNC Automatic Glass Cutting Machine Glass Cutting Line Advantage: CNC Control
Function: Loading Breaking And Cutting
High Light:

19mm laser glass cutting machine

,

Washing small glass cutting machine

LJSCLM CNC Automatic Glass Cutting Machine and Horizontal Washing Machine

LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line is composed of three parts: automatic intelligent tablet  feeder, cutting machine and air float tablet. CNC automatically controls  the operation of the whole line, the tablet machine automatically takes the glass down and transmits it to the cutting machine. The cutting machine  automatically cuts the input glass size, and automatically transfers the cut  glass to the airbreaking and floating tables. The manual assistance is used to divide the glass, and the single glass cutting process is finished.Reliable,

stable performance, strong applicability and high efficiency.

Horizontal Washing 19mm CNC Glass Cutting Machine 0

Horizontal Washing 19mm CNC Glass Cutting Machine 1

LJSCLM CNC Glass Cutting Machine

technical parameter

cutting precision ≤±0.30mm
max.cutting size 3660×2750mm
min.cutting size 100×100mm
glass thickness 3~19mm
cutting speed max100m/min
working table height 930±25mm
cutting table height 4710×3250×930mm
cutting table dimension 1500kg
loading table transport speed 40m/min
loading table tilting speed 7m/min
loading table forward distance 1000mm
loading table max.absorb size 3660×2750mm
loading table min.absorb size 1800×1800mm
loading table dimension (odd station) 6000×3900×930mm
max. thickness of glass packing 800mm
min.glass nog height 240mm
breaking table dimension 4200×3000×930mm
air cushion motor power 5.5kw
air pressure 0.5--0.8Mpa
power supply AC380V 50Hz
total power 18.5KW

Horizontal Washing 19mm CNC Glass Cutting Machine 2

Horizontal Washing 19mm CNC Glass Cutting Machine 3

Horizontal Washing 19mm CNC Glass Cutting Machine 4

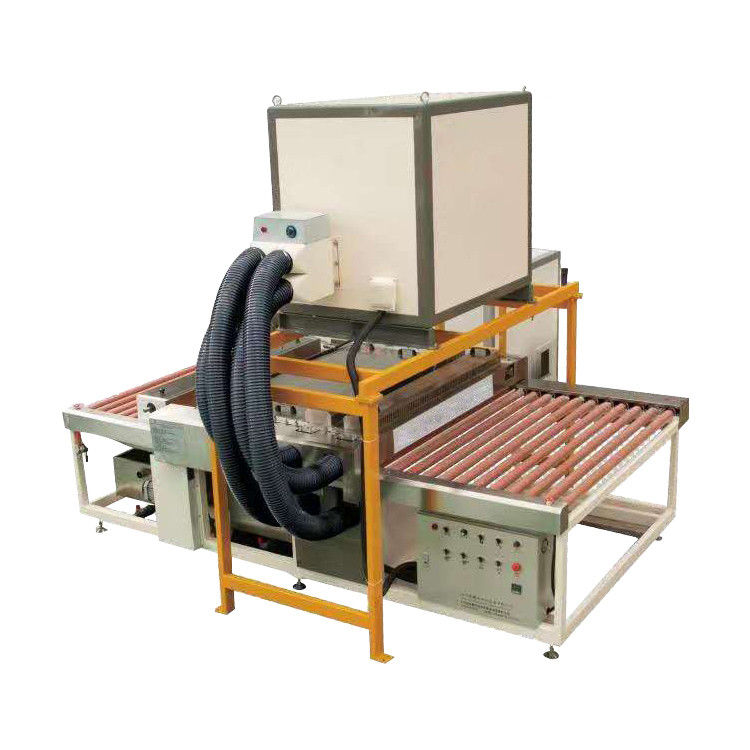

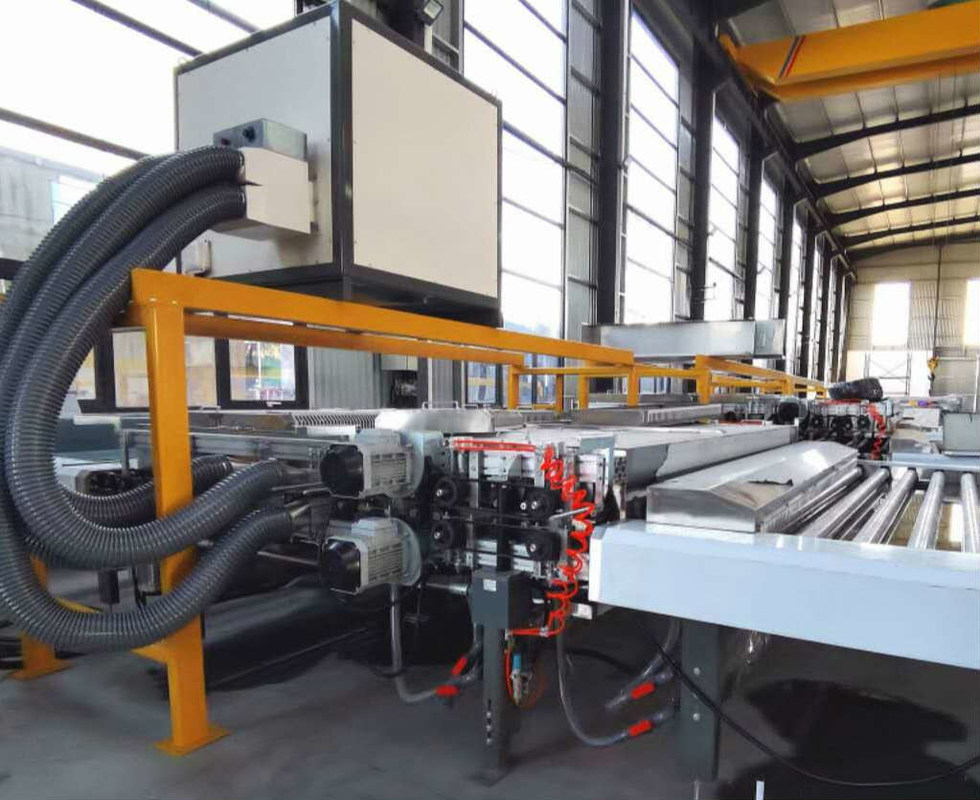

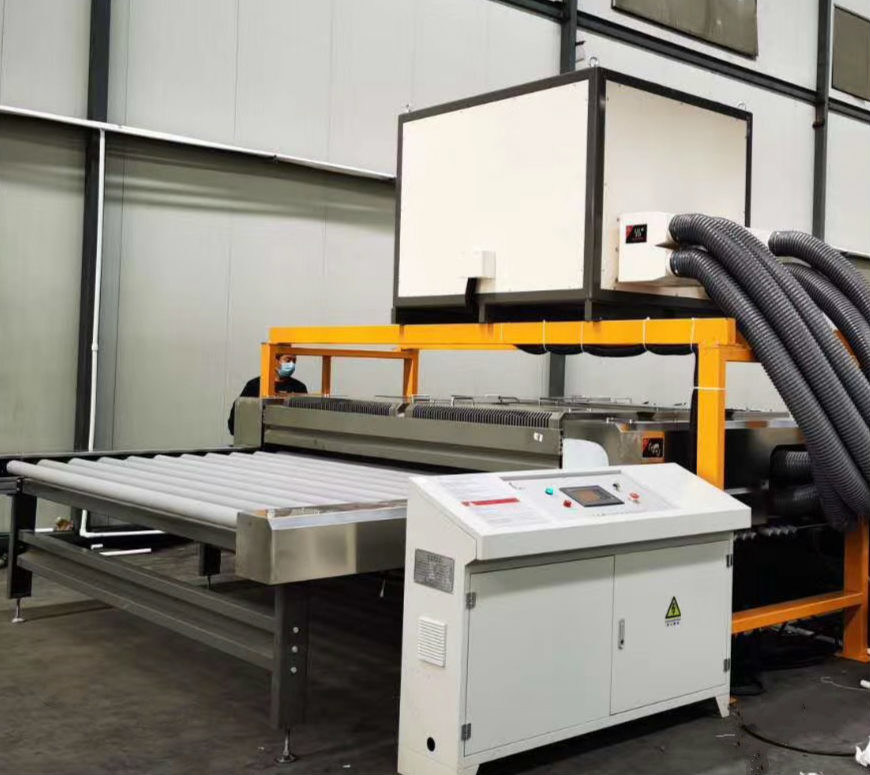

Horizontal Glass Washing and Drying Machine for All Kinds of Glass LJWBQJ2500

Horizontal glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Max washing Glass 2500mm(2650mm)
Power supply 380V 50Hz
Dimension(L*W*H) 6260*4800*3100
Weight 3940kg
Glass thinkness 3-25mm




  • 1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency;
  • 2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder
  • 3. The shaft of rubber roller is made of stainless steel
  • 4. The washing part in contact with water is made of stainless steel
  • 5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain
  • 6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);
  • 7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);



  1. Horizontal Washing 19mm CNC Glass Cutting Machine 5

Horizontal Washing 19mm CNC Glass Cutting Machine 6

Horizontal Washing 19mm CNC Glass Cutting Machine 7Horizontal Washing 19mm CNC Glass Cutting Machine 6
