Product Details:
|
| Name: | Desiccant Filling Machine Of Insulating Glass | PLC: | Siemens |
|---|---|---|---|
| Fuction: | Desiccant Filling For Insulating Glass | ||
| High Light: | insulating glass line,glass processing machines |
||
►
LIJIANG GLASS- PROFESSIONAL SUPPLIER FOR INSULATING GLASS MACHNE

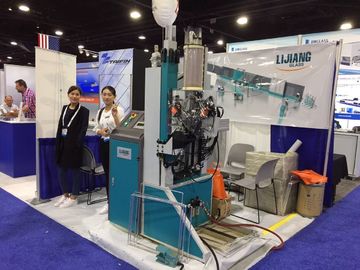

LJGZ2020 Desiccant Filling Machine
►APPLICATION
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
1,We have Protection device for machine head.
2, Electrical component are all Germany Brand-Siemens.
3, Machine height can be adjusted according to the size of spacer frame.
4, Desiccant automatically loading from the Materials bucket.
5, Auto drilling, filling and sealing function
6,Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
7, All spare parts have ID Number for offering the convenience in after sales service.
8, All spare parts have ID Number for offering the convenience in after sales service.
►Main technical parameter
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

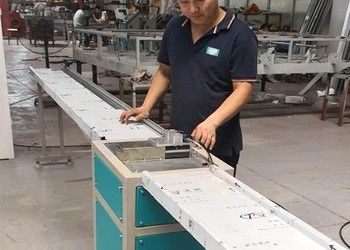

Manul Molecular Sieve Filling Machine LJGJ03
►Main Features:
►Main technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
►Remark
About Insulating glass desiccant description
Insulating glass desiccant can deeply co-adsorb the resident moisture and organics in Insulating Glass, keep the IG clear and transparent even at very low temperature. More important, it can successfully avoid the tremendous air pressure outbalance placed on the glasses, which was superposed by seasons of day-night temperature changing and the ensuring air adsorption and adsorption function of common IG desiccant. Thus it resolves the problems of windows distortion caused by IG inflation and shrink, expanded the life span of IG windows.
►Typical Aplication
a) Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien)
b) Cracked Gas Drying
c) Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required.
d) Drying of highly polar compounds, such as methanol and ethanol
e) Drying of liquid alcohol
f) Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled.
g) Drying of CNG.
