Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Type: | LJTJ2540 |
|---|---|---|---|
| Max. Glass Size: | 2500*4000mm | Min. Glass Size: | 400*300mm |
| Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
| High Light: | glass making machine,double glazing glass machine,40m/Min Insulating Glass Machine |
||
Full automatic and high-effciency for Vertical Insulating Glass Sealing Robot/Automatic sealing machine

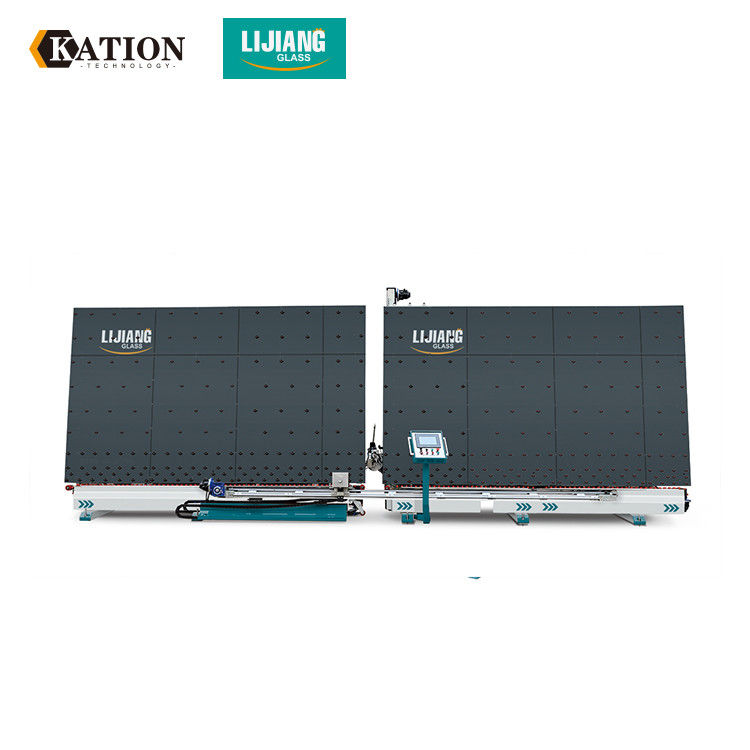

Vertical Insulating Glass Sealing Robot LJTJ2540
1.The machine is suitable for glass deep processing enterprise ,high automation,
Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth
surface, no need to pare the corner

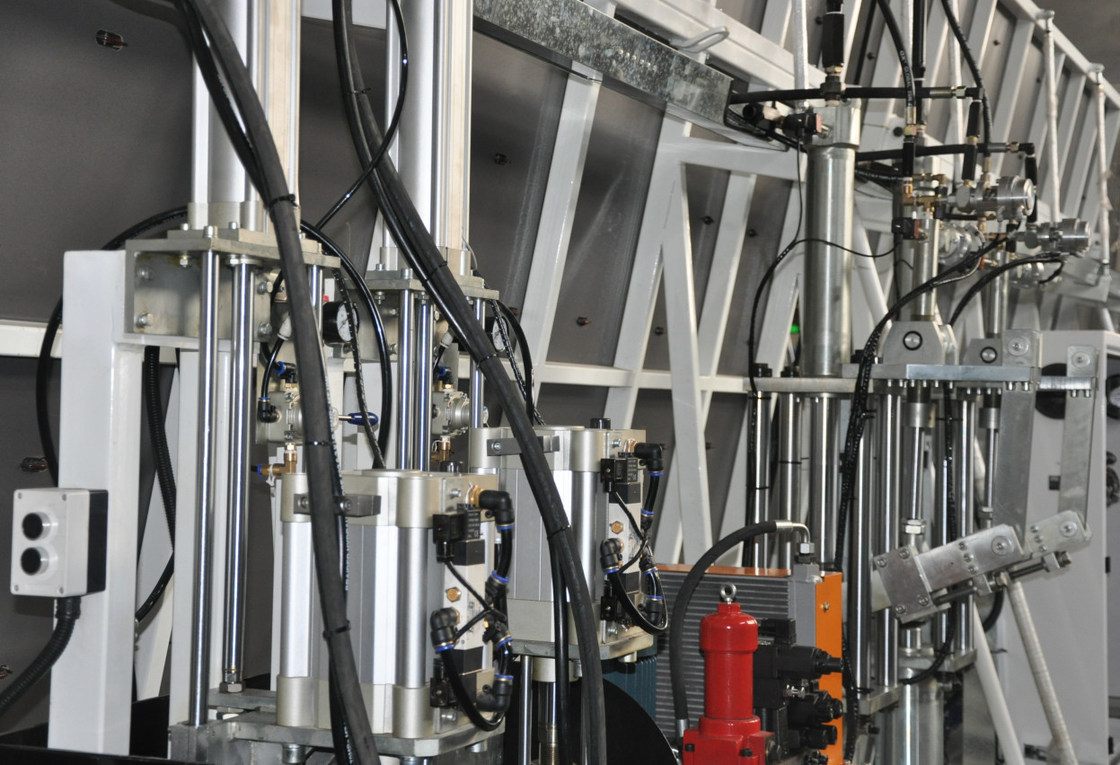

4. Using two sets of independent sealant supply system ( including the mixing device ),
two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 400*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance
is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass
edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the
machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be
transported smoothly
Dyad Body Device
The dyad body device has two functions. The left one is used for filtering impurities and moisture
when filling gas into , then the right one plays the role of lubrication.
Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.

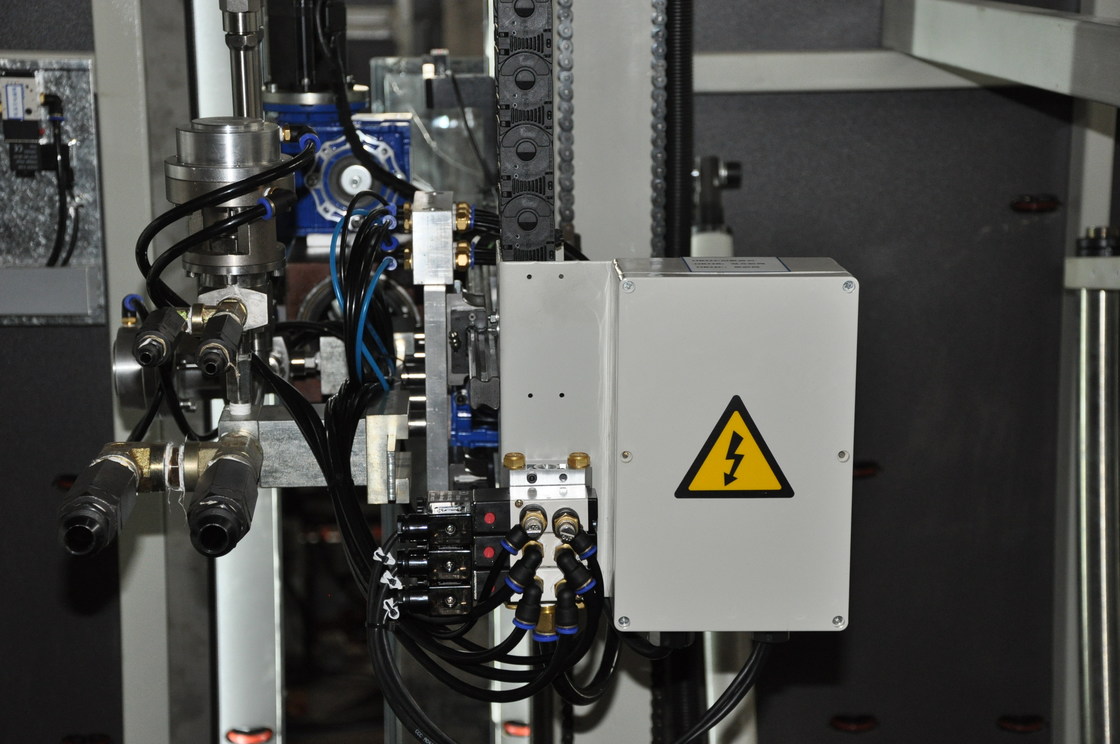

The Device of Sealing Part
Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting
scraper blade to scrape out extra glue and no need to repair glass corners by second time.
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
