Product Details:
|
| Name: | Butyl Extruder Machine | Type: | LJTB01 |
|---|---|---|---|
| Squeeze Pressure: | 10-18MPa | Temperature: | 110~140℃ |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| Aluminum Spacer Width: | 6A - 27A | ||
| High Light: | butyl silicone sealant,double glass machine |
||

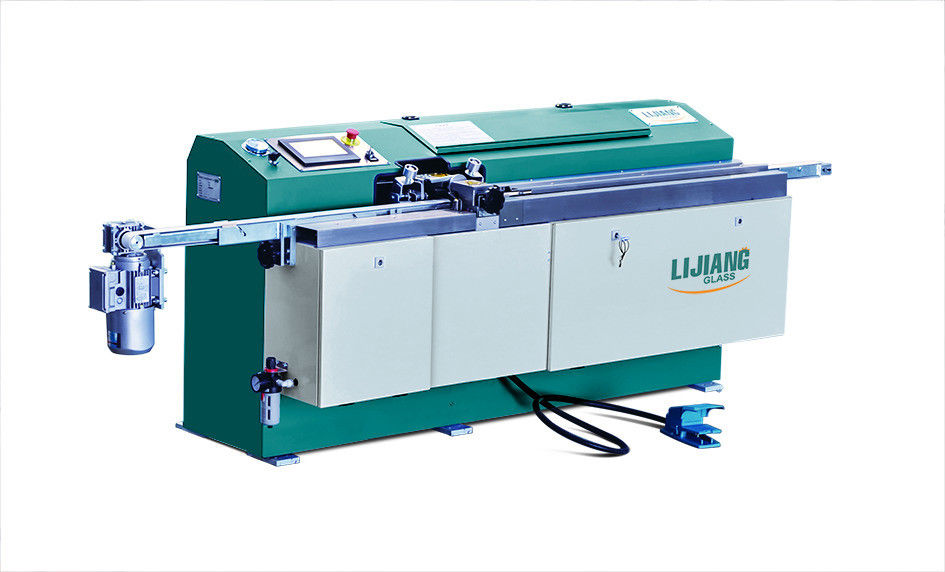

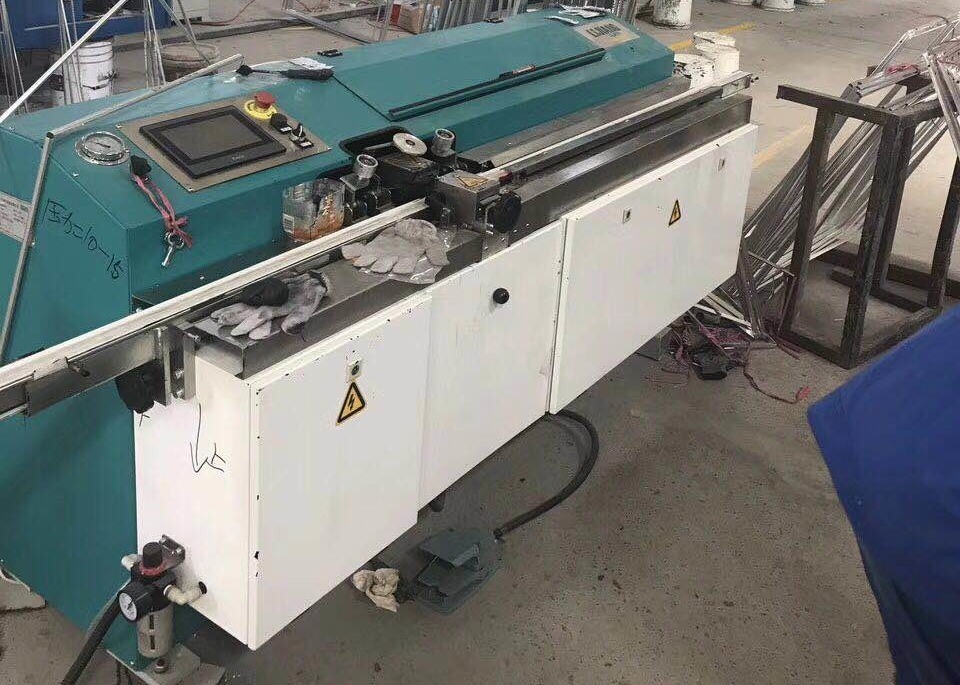

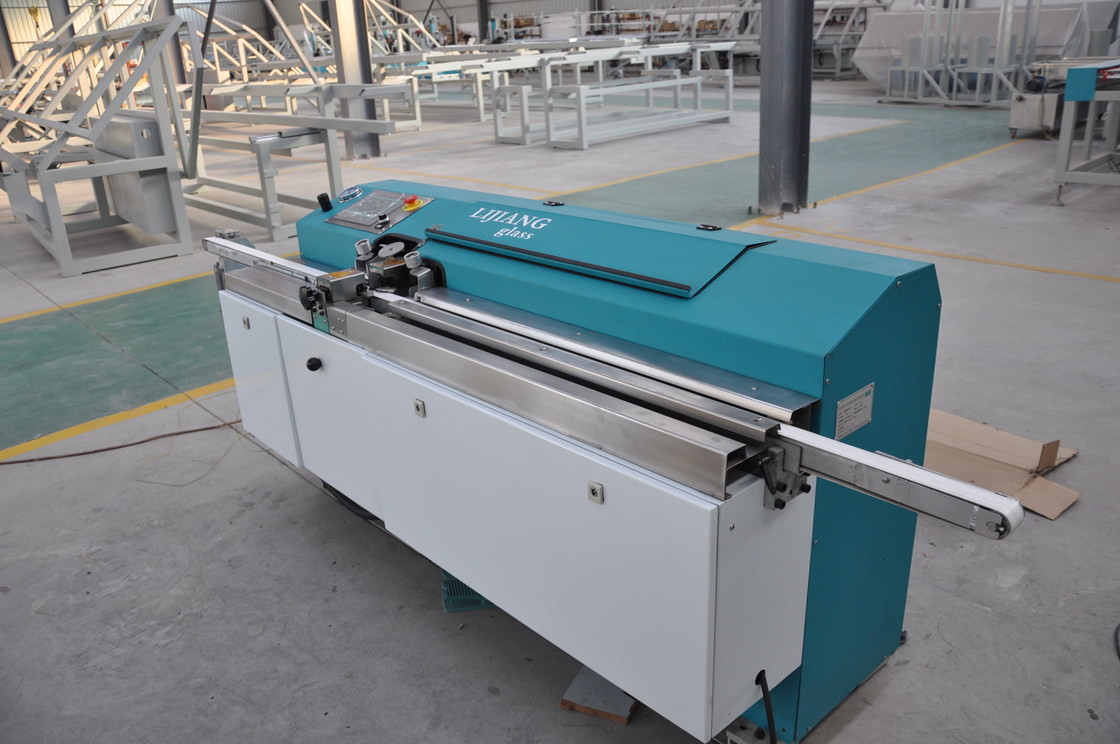

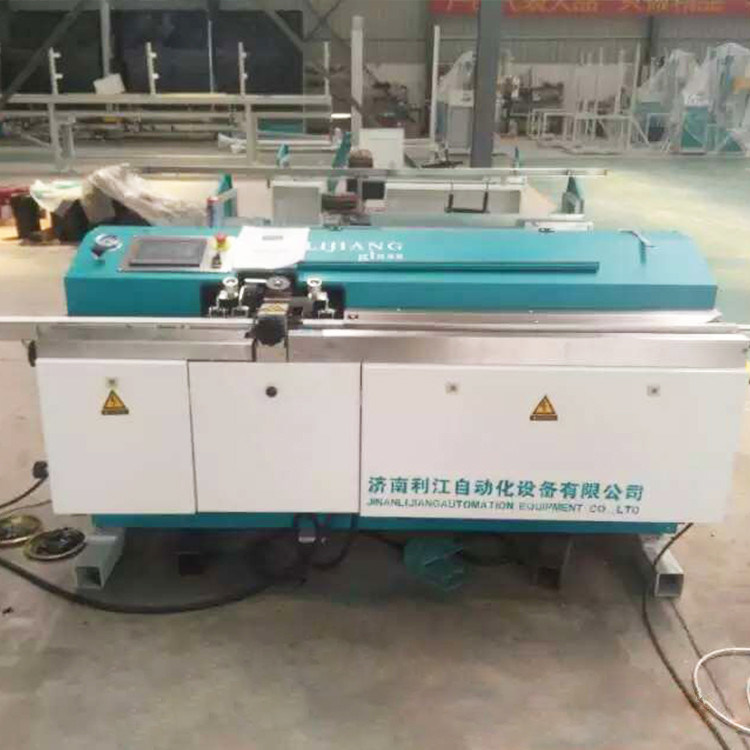

Butyl Extruder Machine LJTB01
LJTB 01 Butyl extruder machine is used for spreading aluminum spacer frames evenly with
hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation
more easier than before. The conveyor of aluminum is controlled by frequency converter.
The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic
and hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more
easier. The height of squeezing head can be adjusted automatically according to different kinds
of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the
characteristic of complete functions and stable working mode.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the
pressure of outlet oil strongly.
Germany Siemens parts
Adopt Siemens brand, stable performance.
Guiding Wheel
Using guiding wheel to help arc frames coating.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415v 50 hz 3 phrase |
| Dimension | 2950×890×1004mm(L×W×H) |
| Weight | 750kg |
Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
