Product Details:
|
| Name: | Sealant Silicon Pump | Motor: | Korea Import Pump |
|---|---|---|---|
| Function: | For Insulating Glass Sealing | ||
| High Light: | double glazing production,insulating glass line |
||
LIJIANG GLASS-SERVICE FOR WORLD GLASS MANUFACTURE

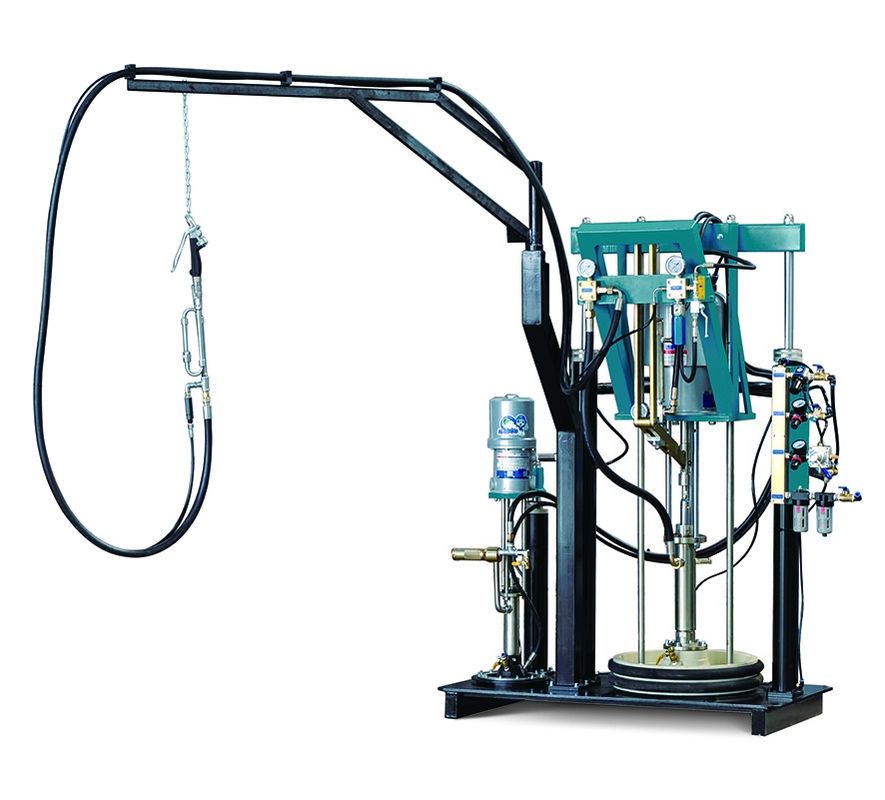

LJST02ASealant-spreading machine
►APPLICATION
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass. A ans B pump, glue gun and safety valve are all from Korea Handok. So it can ensure the reliable working-effect. Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
►Main feature
Main technical parameter
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |

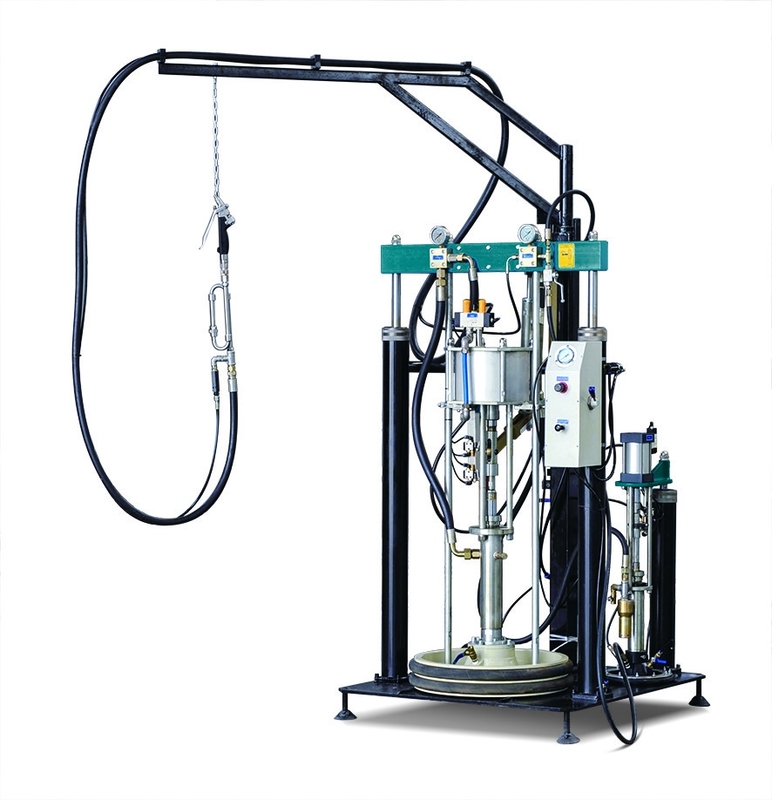

LJST02B Two-component Sealant-Spreading Machine(ecnomic type)
►APPLICATION
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
►Main technical parameter
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
LJZT03 Gold partners for sealant spreading—Rotated table
►Main feature
1.Easy operating, simple and flexible
2.It is used for fixing and rotating glass when manual coating the outside of IG glass
3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
►Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
►APPLICATION

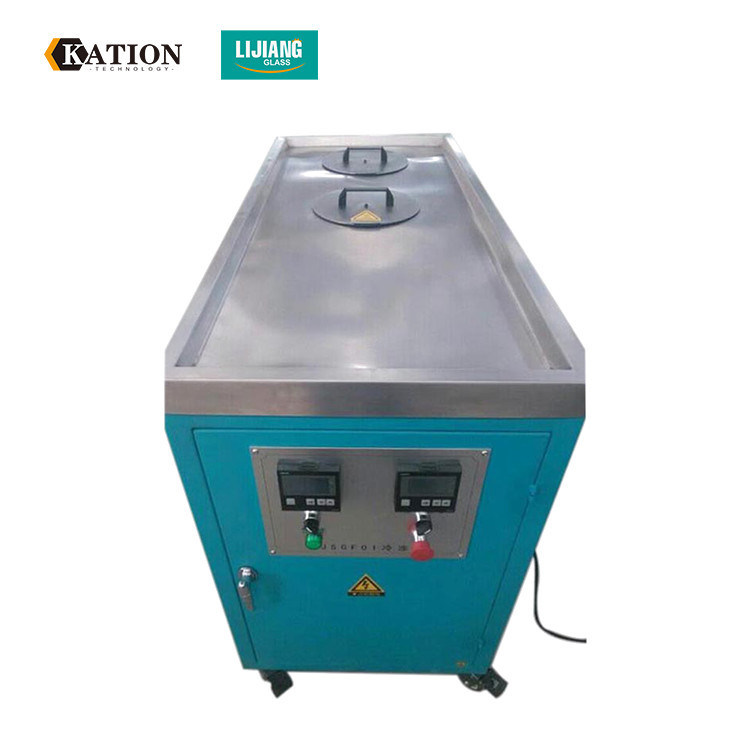

LJSGF01 Freezer is used for short time refrigerating and heating the spreading gun of Sealant spreading machine, while you don’t need to wash and clear the spreading gun. The use of machine can reduce the waste of sealant for clean the gun, reduce the production cost, and greatly increase the work efficiency.
LJSGF01 Freezer is one of the necessary machines for Sealant spreading machine to produce insulating glass. It has the following features: cover small floor area, easy to move, reliability, easy service and so on.
►Main Technical Parameter
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |
►Main feature
1.It is used for storing the gun when manual sealant gun stop working during the process of gluing insulating glass
2.Storing at low temperature, to prevent sealant solidify
3.Can be effectively reduced waste when cleaning the glue
Machine's body:Heating and freezing switch, easy to operate.
Freezing & Heating
The freezer have two parts:one for heating,another one for freezing.
