Product Details:
|
| Name: | Sealant Silicon Pump | Motor: | Korea Import Pump |
|---|---|---|---|
| Function: | For Insulating Glass Sealing | ||
| High Light: | glass processing machines,double glazing production |
||
LIJIANG GLASS-SERVICE FOR WORLD GLASS MANUFACTURE

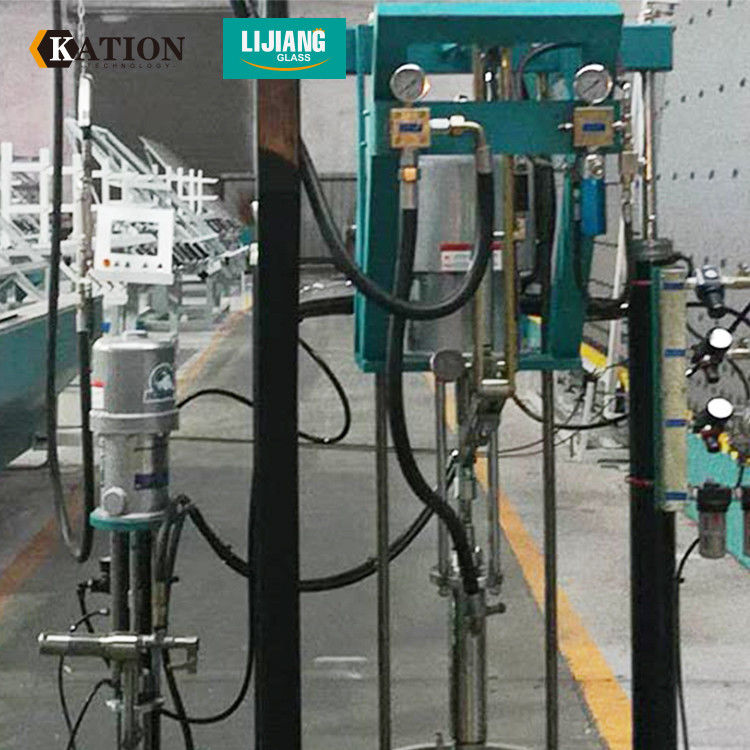

LJST02ASealant-spreading machine
►APPLICATION
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass. A ans B pump, glue gun and safety valve are all from Korea Handok. So it can ensure the reliable working-effect. Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
►Main feature
Main technical parameter
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |

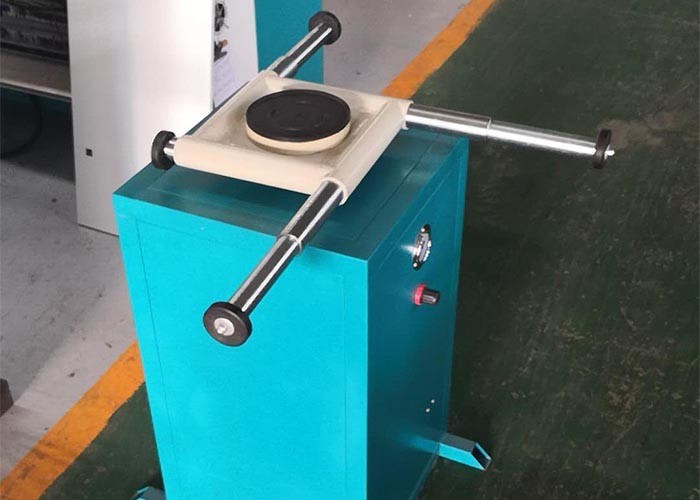

LJZT03 Gold partners for sealant spreading—Rotated table
►Main feature
1.Easy operating, simple and flexible
2.It is used for fixing and rotating glass when manual coating the outside of IG glass
3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
►Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Big drum silicone sealant for Insulating glass
Big drum silicone sealant is a two component, neutral curing, silicone structural sealant, specifically designed for building curtain walls with hidden or semi-hidden frames. Long-term structural binding and sealing is formed by mixing and curing of the two components at designed ratio.
