Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

china 714kg CNC Aluminum spacer butyl extruder machine manufacturers

Description
Name: Butyl Extruder Machine LJTB 01 Squeeze Pressure: 10-18MPa
Temperature: 110~140℃ Aluminum Spacer Width: 4-30mm
Speed: 0-47m/min Diameter Of Butyl Cylinder: 200mm
Air Supply: 0.4m³/min
High Light:

butyl silicone sealant

,

double glass machine

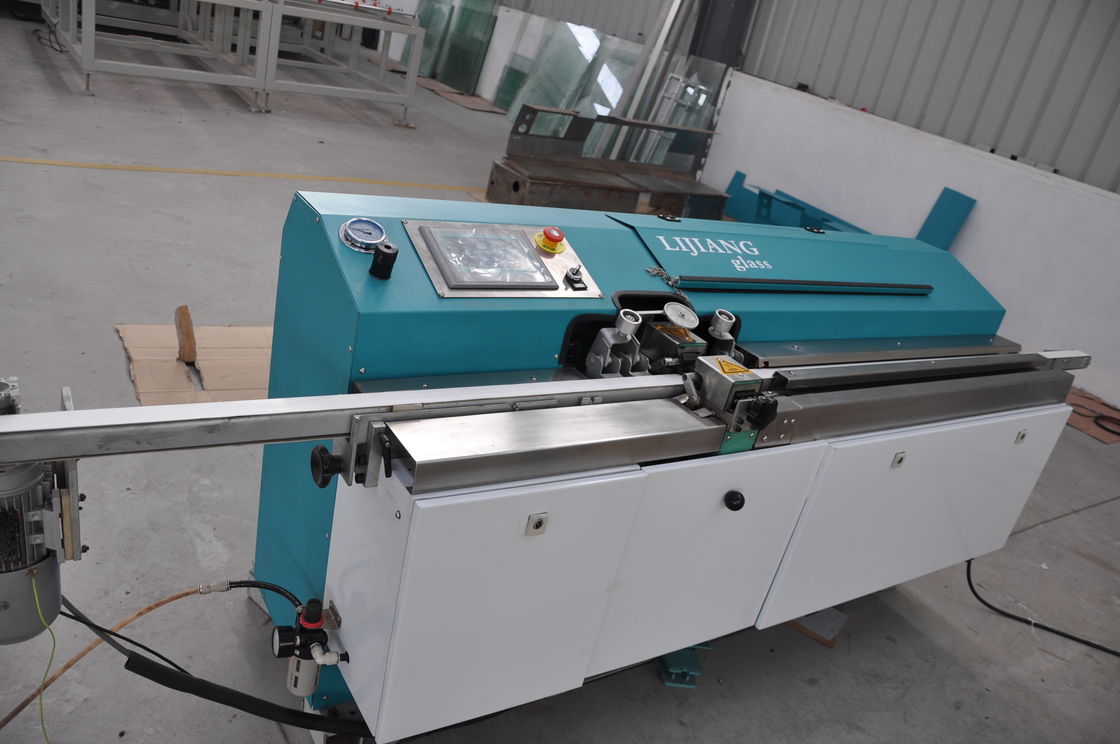

Butyl Extruder Machine LJTB 01

Main feature

  • PLC control system, touch screen interface
  • Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
  • The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
  • Fast preheat, improve work efficiency
  • with preheating function
  • With exhaust inflatable function, improve the quality of sealing and save time for plastic
  • Quickly coating speed, can up to 47m/min
  • Saving the amount of glue



Technical Data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg









































Main components

Name Brand Original
PLC SIEMENS Germany
Valve HAWE Germany
Low voltage electrical apparatus SIEMENS Germany
Hydraulic and pneumatic supercharging system MAXIMATOR Germany
Frequency converter SIEMENS Germany
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan
Travel light OMRON Japan
Optical fiber OMRON Japan





Product description



LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames (and other spacers) evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation easier than before. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts German pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The butyl extruder has reached the worldwide technology with the characteristic of complete functions and famous spare parts.



china 714kg CNC Aluminum spacer butyl extruder machine manufacturers 0china 714kg CNC Aluminum spacer butyl extruder machine manufacturers 1











Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.

china 714kg CNC Aluminum spacer butyl extruder machine manufacturers 2











Alarm system

It is an automatic alarm system, reminding adding butyl glue.

china 714kg CNC Aluminum spacer butyl extruder machine manufacturers 3











Special material Belt

Using non-adhesive belt, keep clean.

china 714kg CNC Aluminum spacer butyl extruder machine manufacturers 4
