Product Details:
|
| Name: | Smart Vertical Edge Deleting Machine | Glass Edge Grinding Machine: | 400*280mm |
|---|---|---|---|
| Glass Thickness: | 3-15mm | Diameter Of Grinding Wheel: | 200mm |
| Conveyor Height: | 500mm | Edge Deleting Width: | 10-50mm |
| Transmission Speed: | 29m/min | Abrasive Wheel Width: | 10/12/15mm |
| High Light: | glass edging machine,glass grinding equipment |
||

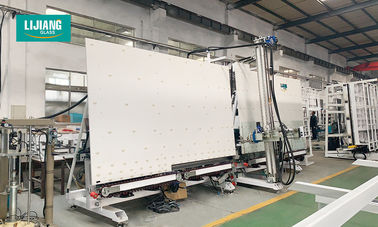

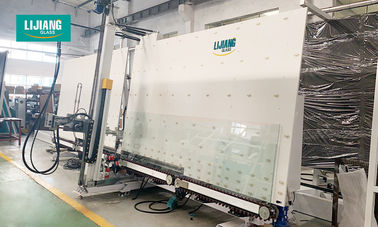

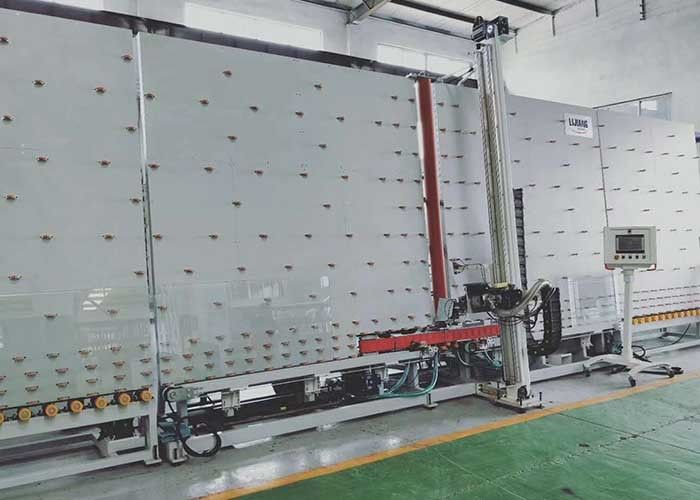

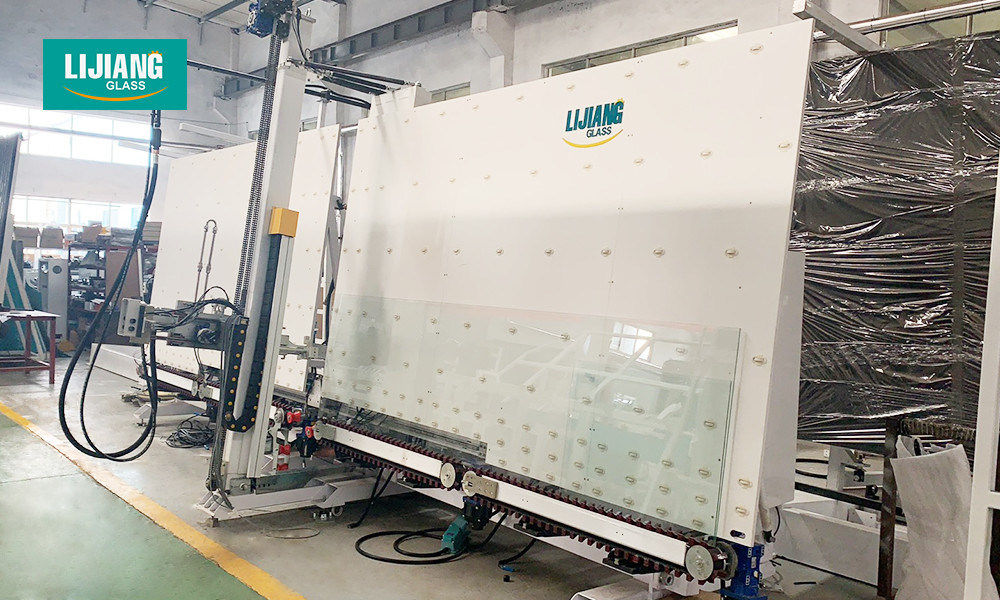

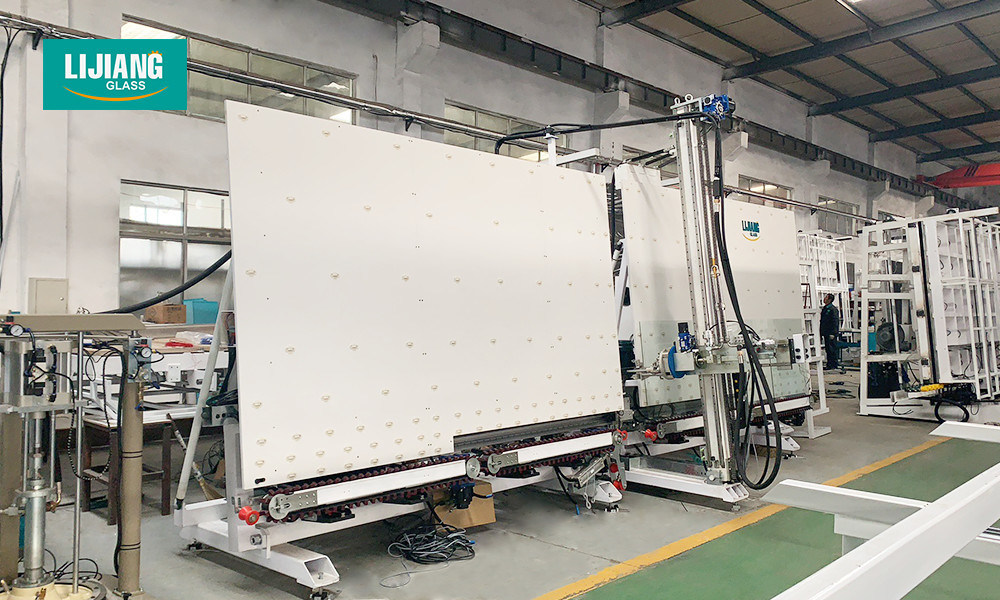

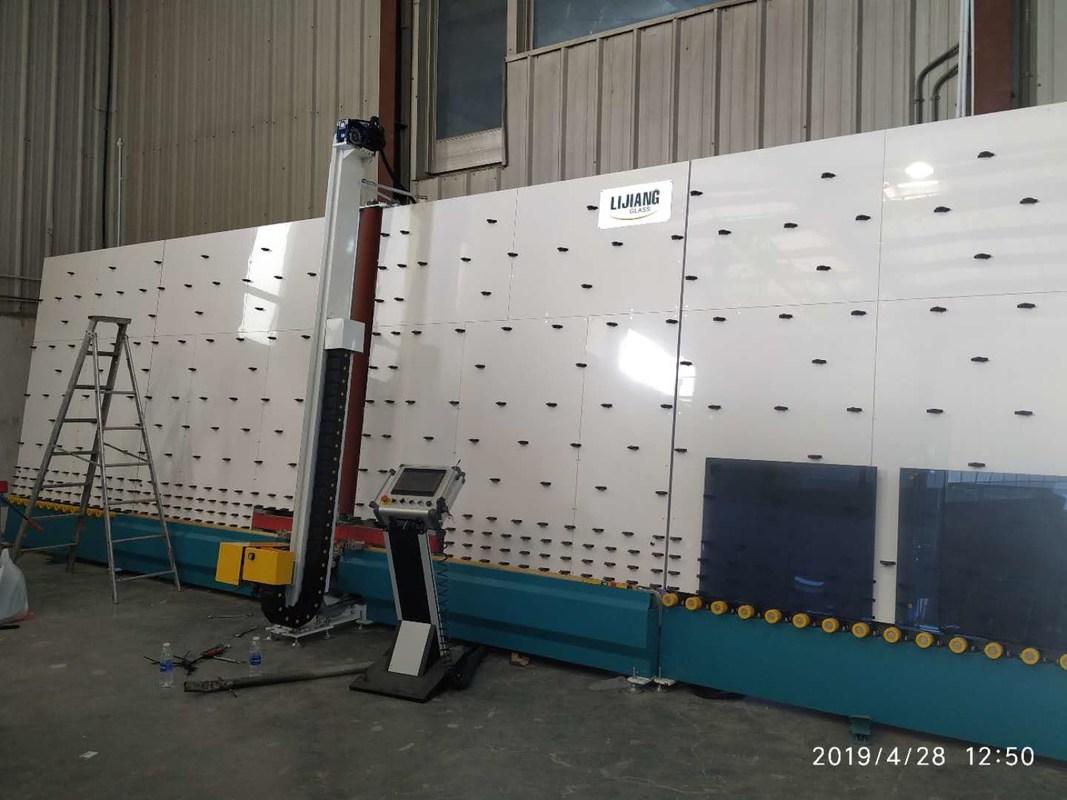

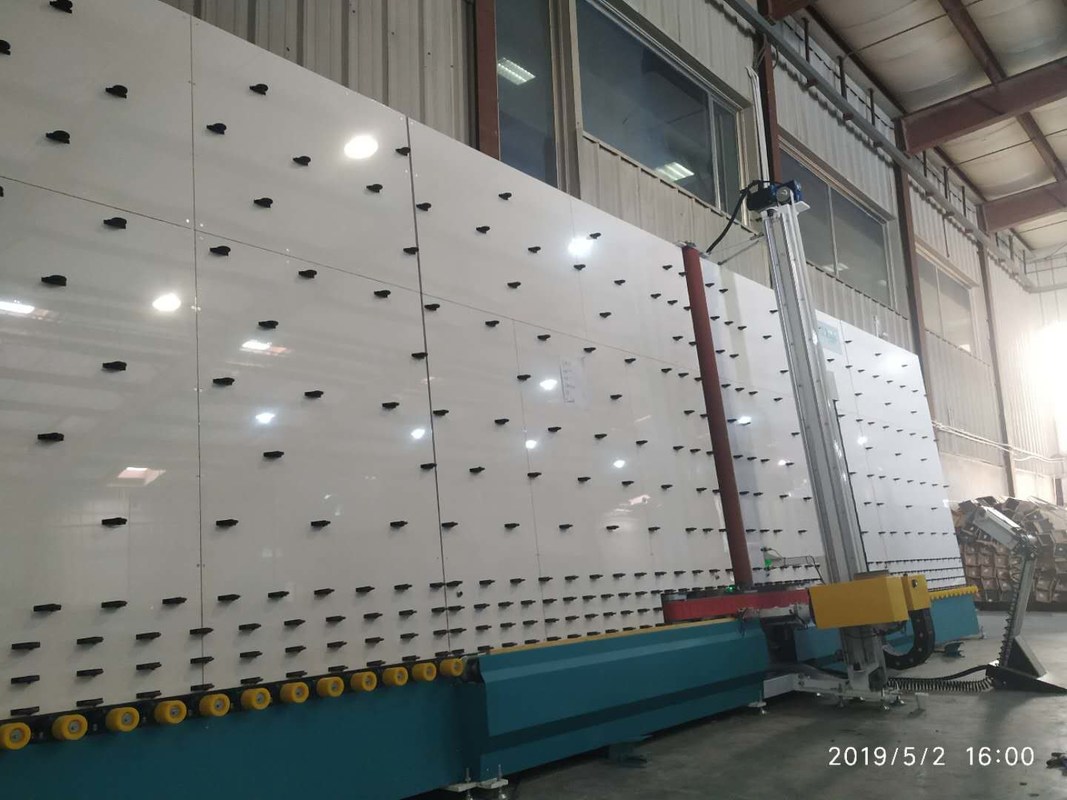

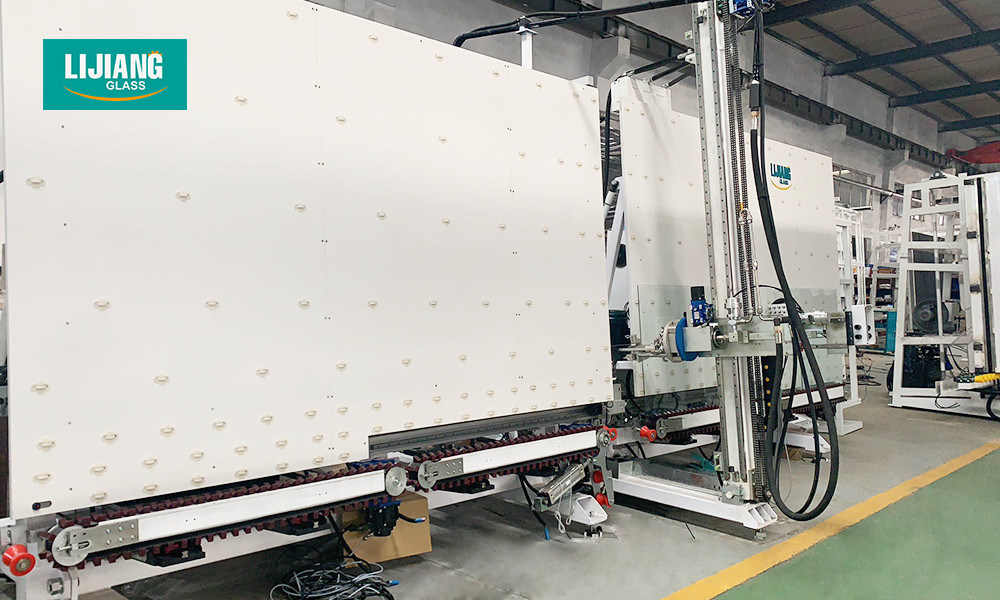

LJDM2545 intelligent vertical edge stripping machine is used to remove the edge film of Low-e glass. The glass edging machine adopts imported servo control system, with accurate positioning and stable operation. High-quality grinding wheels are durable and can produce neat and beautiful cracks. The distance can be arbitrarily set between 10 and 150 mm.
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed |
29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
touch screen interface
edge deleting is adjustable
safe and full automatic device
Jinan Lijiang Automation Equipment Co., Ltd. is located in beautiful spring City Jinan. A company that integrates R & D, sales, and services for glass processing equipment. The proximity to the Beijing-Shanghai high-speed train makes transportation very convenient.
Leveraging the experience of well-known experts, the company is committed to establishing R & D center, working with well-known domestic and foreign companies to introduce advanced technology, and building high quality insulated glass machinery equipment. It is working. Currently, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known companies. Since the establishment of the company, our products have been exported to almost 30 countries and regions such as Europe, America, South America, Middle East, Southeast Asia and India. At the same time, the company is working with North China Industrial Group, Shandong University and other renowned domestic research institutes to continuously improve the level of technical research. So far, we have independently produced a vertical automatic insulating glass production line with filling gas, vertical insulating glass sealing robot, automatic interval bending machine, automatic dehumidifying and filling machine, new automatic butyl rubber extruder its technology and quality Has reached the highest reading level in China.
With the rapid development of the insulating glass industry, Lijiang looks forward to working with you to create a win-win situation and create a new world together.
