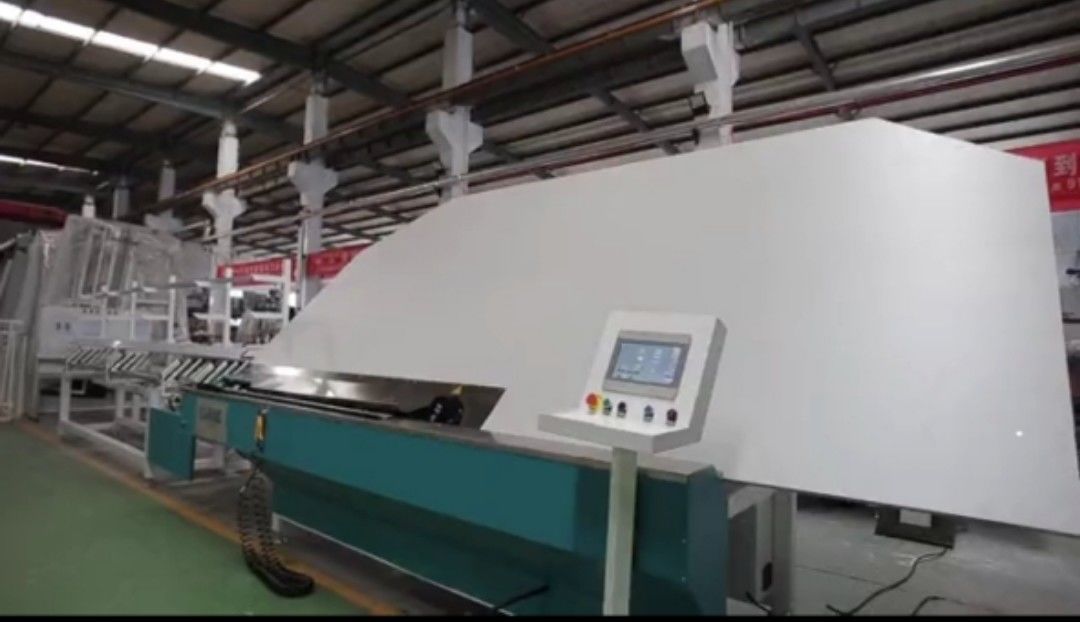

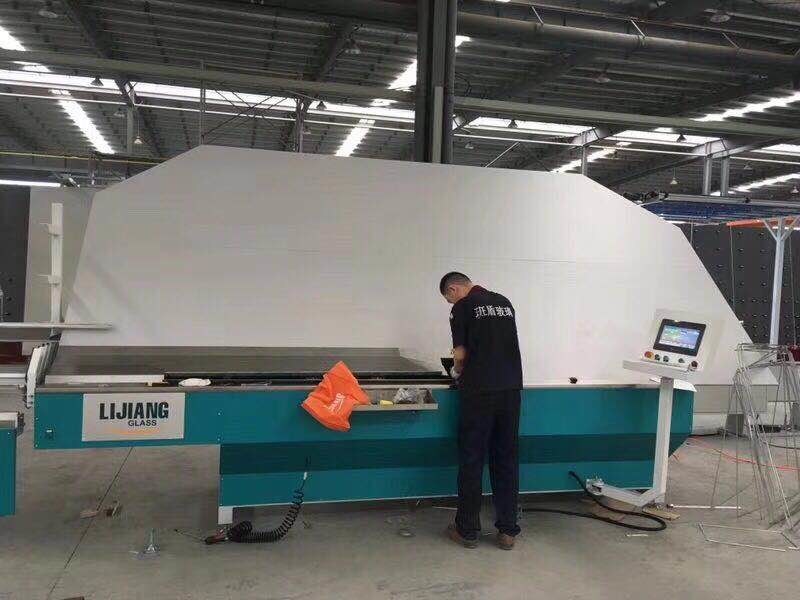

Insulating Glass 5.5-27mm Spacer Bending Machine

Insulating Glass 5.5-27mm Spacer Bending Machine
Insulating Glass 5.5-27mm Spacer Bending Machine Insulating Glass 5.5-27mm Spacer Bending Machine Insulating Glass 5.5-27mm Spacer Bending Machine Insulating Glass 5.5-27mm Spacer Bending Machine Insulating Glass 5.5-27mm Spacer Bending Machine

Large Image :  Insulating Glass 5.5-27mm Spacer Bending Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD24000/set
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

Insulating Glass 5.5-27mm Spacer Bending Machine

Description
Name: Spacer Bending Machine Max. Bending Size: 2000mm*2000mm (2500*2500mm)
Min. Bending Size: 250mm*200mm Aluminum Spacer Width: 5.5-27mm
Dimensional Error: ±0.5mm
High Light:

glass bending machine

,

industrial bending machine

Automatic spacer bending machine is a special equipment of insulating glass





application

Automatic gasket bending machine is a special equipment to replace the hollow glass aluminum frame of hollow glass manufacturing technology. The device can make a variety of convex polygonal aluminum frames from one aluminum bar at a time, thereby enhancing the strength of the aluminum frame and making the insulating glass better sealed.



Detailed equipment

Adopt Siemens PLC control system
There are 4 Siemens servos
Adopt 4 sets of shelves, which can store more gaskets of different sizes. Replace different racks with Siemens servers.
Automatically cut into aluminum gasket
Continuously curved bulkhead
Automatically avoid the connection angle when bending and cutting
The machine grabbed the shim from the top instead of the shim from the bottom.
Using industrial computer technology, it can realize the on-site drawing of workers on the industrial computer and directly bend the drawn graphics.
Special manipulator device is used to bend the large spacer



Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm









































Electrical parameters



NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI







Insulating Glass 5.5-27mm Spacer Bending Machine 0

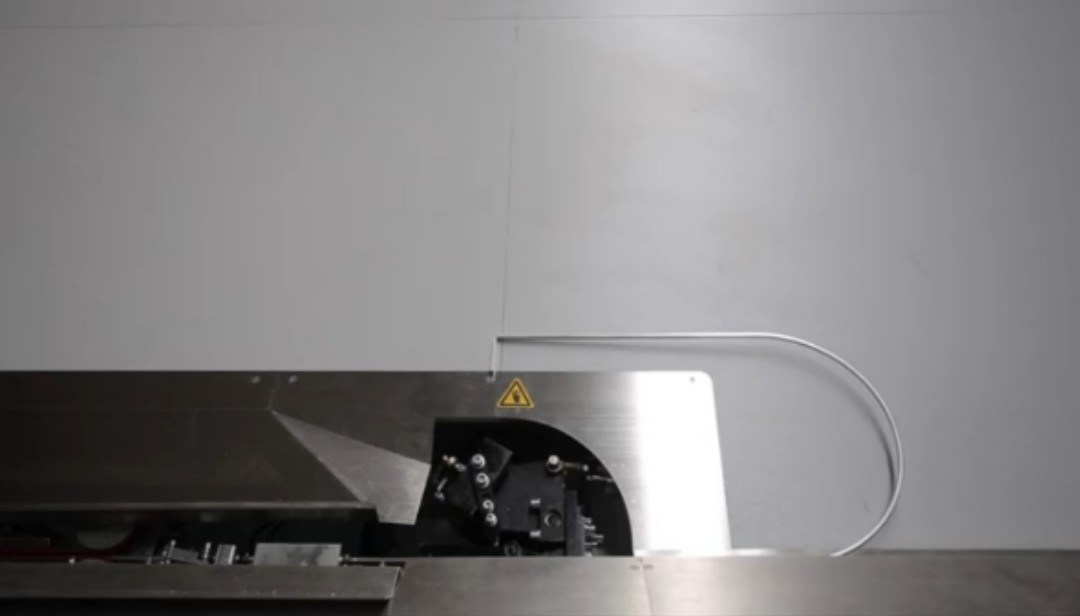

Can bend special shapes



Insulating Glass 5.5-27mm Spacer Bending Machine 1



Heavy duty connectors is convenience and safety for installation and debugging





Insulating Glass 5.5-27mm Spacer Bending Machine 2



Spare parts of all machine have ID codes.







Insulating Glass 5.5-27mm Spacer Bending Machine 3Insulating Glass 5.5-27mm Spacer Bending Machine 4Insulating Glass 5.5-27mm Spacer Bending Machine 5Insulating Glass 5.5-27mm Spacer Bending Machine 6









  • USB input function, read the excel format file directly etc (Optional)



  • Connect to ERP system (Optional)



  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
  • We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.







Insulating Glass 5.5-27mm Spacer Bending Machine 7Insulating Glass 5.5-27mm Spacer Bending Machine 8Insulating Glass 5.5-27mm Spacer Bending Machine 9Insulating Glass 5.5-27mm Spacer Bending Machine 10
