Manual Insulating Glass Production Line Sealing Machine And Sealing Robot

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot
Manual Insulating Glass Production Line Sealing Machine And Sealing Robot Manual Insulating Glass Production Line Sealing Machine And Sealing Robot Manual Insulating Glass Production Line Sealing Machine And Sealing Robot

Large Image :  Manual Insulating Glass Production Line Sealing Machine And Sealing Robot

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJST02A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot

Description
Name: Sealant Pump Of Insulating Glass Using Advantage: Easy Operate And Ecnomic Cost Solution
Pump: Korea Pump
High Light:

double glazing production

,

insulating glass line

Manual sealing machine and sealing robot for insulating glass



             LIJIANG GLASS- FOR WORLD GLASS MANUFACTURE SEIVICE



Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 0

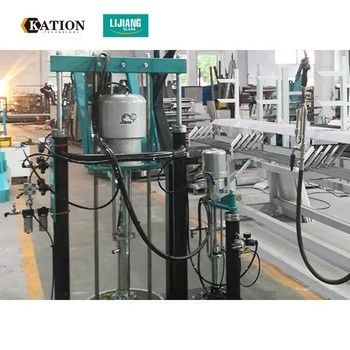

Sealant-spreading Machine LJST02A

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 1



APPLICATION

This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.

Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.









Main technical parameter

Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm
Weight 490kg
Capacity of the glue drum 200-300 ml/200 kg







Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 2Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 3

►►►►►KOREA PUMP USING

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 4Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 5

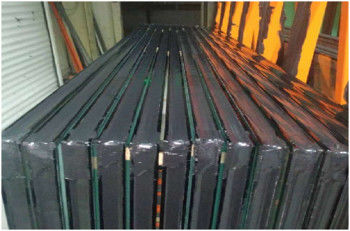

►►►►►SEALING GUN ADN SEALING REASULT SHOWING



Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 6

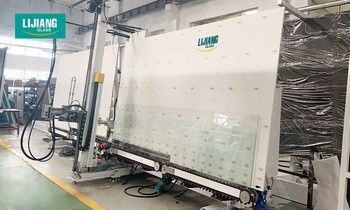

LJTJ2540D Vertical Insulating Glass Sealing Robot

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 7Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 8



Main feature

Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)

Can coat triple glass by one time

Fast reacting and volume controlled dosing system for IG glass, 2-component sealant

The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner

Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning

Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.

Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.

Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.






Main technical parameter

Max.glass size

2500*40000mm

Min.glass size

300*300mm

Glass thickness

12-56mm

Working speed

5-40m/min

Air pressure

0.5-0.7MPa

Squeeze pressure

32MPa

Voltage power

380V 12kw

Overall dimension

8000*1500*2700mm



Main components list

Servo motor

Japan Yaskawa

Servo driver

Japan Yaskawa

CPU

Japan Yaskawa

Low voltage component

Siemens

Guideway

Taiwan Hiwin

Switching power supply

Taiwan MW

Optoelectronic switch

Korea Autonics

Pneumatic component

Taiwan Airtac

Touch screen

Taiwan Wenview

Travel switch

Taiwan Tiande



Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 9

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 10

Manual Insulating Glass Production Line Sealing Machine And Sealing Robot 11
