Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine

Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine
Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine

Large Image :  Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine

Product Details:
Place of Origin: China
Brand Name: LIJAING
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooder
Delivery Time: 20-30
Supply Ability: 35sets

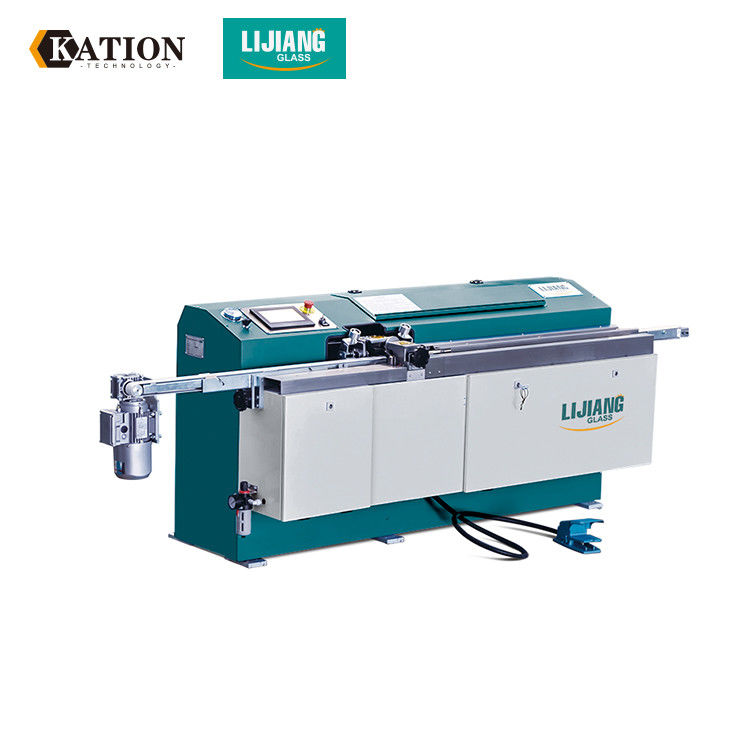

Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine

Description
Name: LJTB01 Butyl Extruder Machine Squeeze Pressure: 10-18MPa
Temperature: 110~140℃ Aluminum Spacer Width: 4-30mm
Speed: 0-47m/min
High Light:

double glazing production

,

insulating glass line

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl



The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.

This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum

is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest

speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging

system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and

it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with

electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum

spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working

mode.



Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine 0



² Main components

Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan





Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine 1



Germany Maximator Cylinder



Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine 2



The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.



² Technical Data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg



Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine 3





JINAN KATION TRADING CO.,LTD.

Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery

and related auxiliary equipment for the glass deep processing industry and the door and window construction

industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows &

doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass

processing solution and windows & doors solution for domestic and foreign customers well.



Hot Melt Butyl Insulating Glass Production Line Butyl Extruder Machine 4



FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding

customer to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation



Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.

2)24 hour’s technical support by email or calling

3)English manual and video tutorial

4)We will provide the consumable parts at an agency price

5)24 hours on line service each day, free technical support.

Q:How about your warranty?

A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within

24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?

A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick

up you from airport.
