Product Details:
|
| Name: | Spacer Bending Machine | Advantage: | Warm Adge Spacer Can Be Bendable |
|---|---|---|---|
| PLC: | Siemens | Application: | Insulating Glass |
| High Light: | glass processing machines,double glazing production |
||
Hot Sales Automatic Spacer Bending Machine And Aluminum Spacer Of Insulating Glass
LIJIANG GLASS- PROFESSIONAL SUPPLIER FOR INSULATING GLASS MACHNE

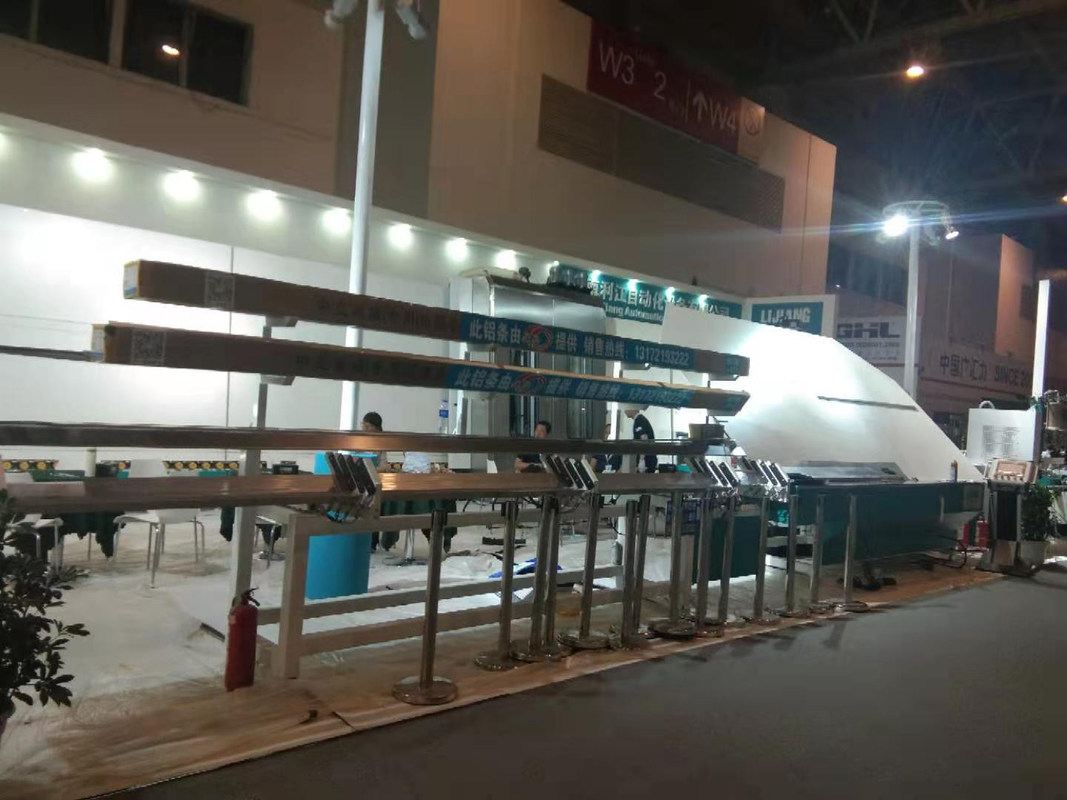

Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020
►►►Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Main feature►►►
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
Main feature►►►
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
Option Fuction►►►
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
►►► Perfect Bending Result of Shaped Model
►Technical data
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
►Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
Aluminum Sapcer
Performance:
Material of Insulating glass benable aluminum spacer bar is 3003 alloy aluminum,Adopt international advanced roll forming technology high-frequency welding process, without destroying the molecular structure of raw materials, ensuring molecular sieve activity, no splitting during bending and filling.
The high-frequency welding aluminum spacer has the international standard height and perfect cross section, and the surface is
bright, beautiful and single-sided double-row holes to ensure the activity of the desiccant. Strictly control the procurement and
production errors of raw materials, no deformation, accurate and stable size, from product quality to product appearance are
perfect.
Remark:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
3.limit deviation of peripheral wall thickness is ±0.025mm.
►►► ►►► ►►► ►►► ►►► ►►► ►►►
