Product Details:
|
| Name: | Butyl Extruder | Working Speed: | 0-47m/m |
|---|---|---|---|
| Sealant: | Butyl Of Insulating Glass | Application: | Insulating Glass |
| High Light: | glass processing machines,double glazing production |
||
LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

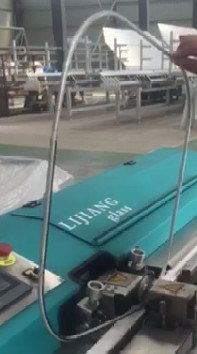

►►►►►The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency
converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with
energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more
stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the
life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head
can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.
² Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.

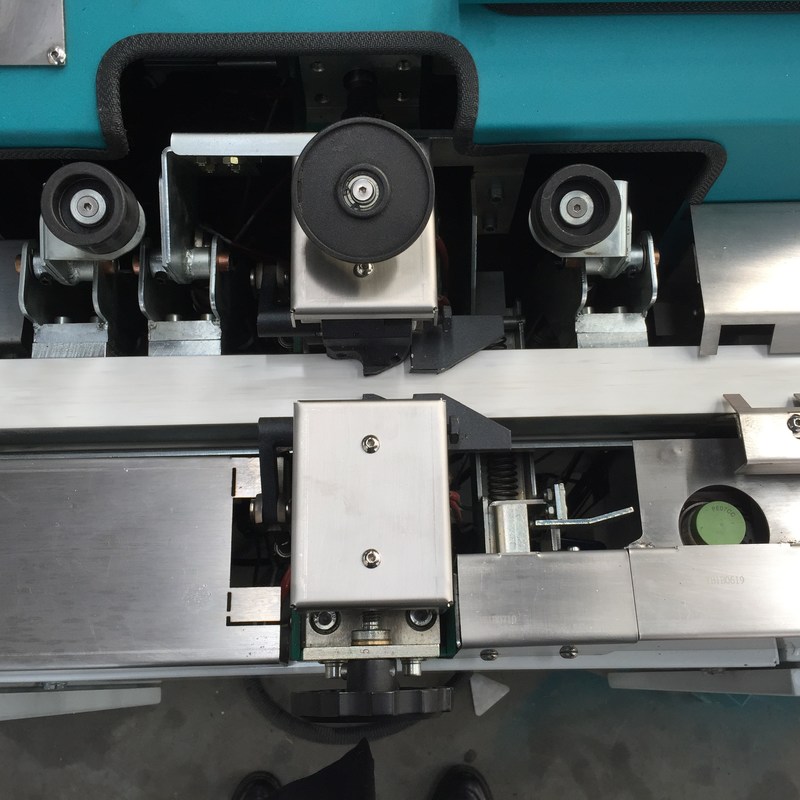

5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
►►►Germany Harvey Valve
►►►KINCO Touch Screen
►►►Germany Maximator Cylinder
►►►Shaped &Large spacer
►►►Germany Siemens spares
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
