Vertical And Horizontal Glass Washing And Drying Machine With High Speed System

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System
Vertical And Horizontal Glass Washing And Drying Machine With High Speed System Vertical And Horizontal Glass Washing And Drying Machine With High Speed System Vertical And Horizontal Glass Washing And Drying Machine With High Speed System

Large Image :  Vertical And Horizontal Glass Washing And Drying Machine With High Speed System

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJWBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10set/month
Contact Now

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System

Description
Name: Horizantal Glass Washing And Drying Machine Materail: Stainless Steel For Washing Parts
Advantage: Soft Brush For Low-e Coating Glass
High Light:

glass processing machines

,

double glazing production

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System



          LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 0

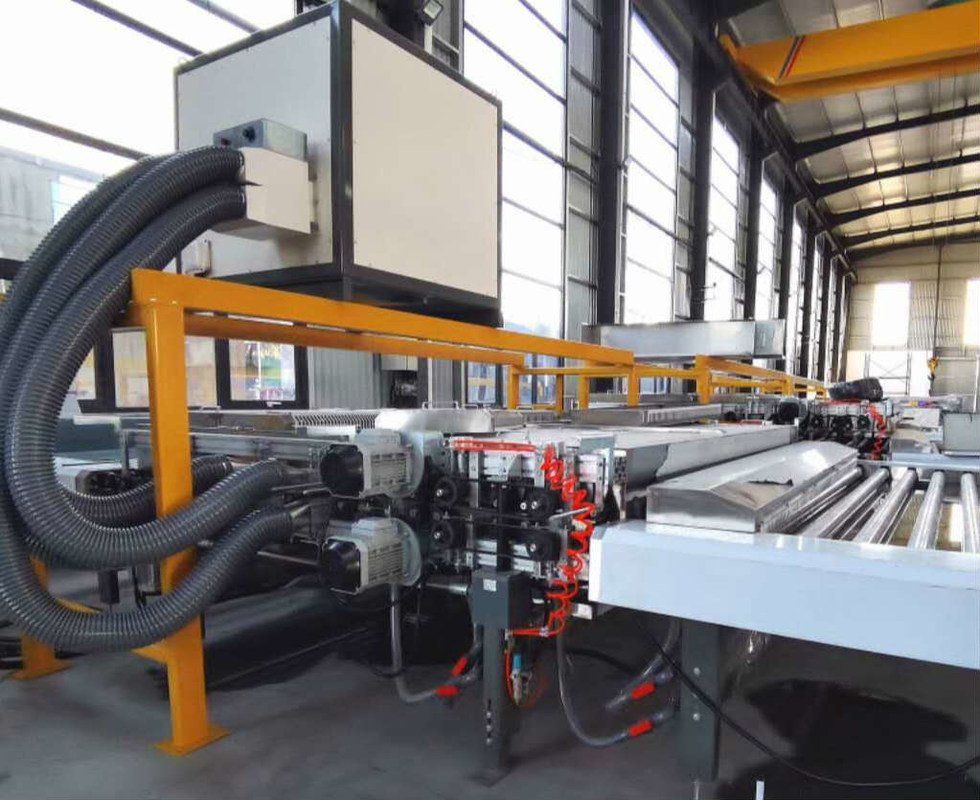

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 1



Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 2

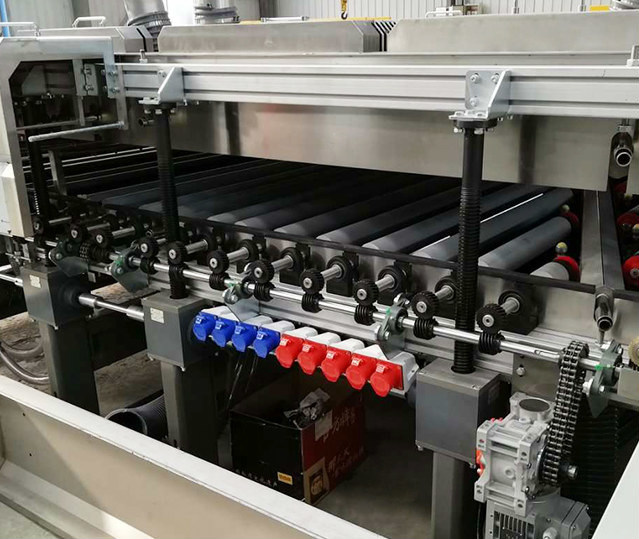

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out going segment.

  • Features
  • Horizontal Glass Washing and Drying Machine LJWBQJ2500,can be equipment with pretreatment for temper furnace,laminated and insulating glass furnace;all stainless steel clean room,drying room,water tanks pumps, air knife,water pipe,cover,fan housing etc,.,ensure machine durable,not rust.
  • Hand made of aluminum alloy support structure,combination of installation,no rust.
  • High-precision lifting system,digital display raising height of the upper portion of the machine.
  • Three pairs high-quality nylon brushes,brushed the first two pairs brushed can raised to used for LOW-E glass cleaning.
  • All the machines conveyor rollers is vulcanized rubber rollers.
  • Main driving realize step-less speed regulating by inverter and speed gear transmission to ensure stable and reliable.



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100mm
Weight 3940kg


Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 3

►►►Water tank( stailess steel)

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 4

►►►Drying knife design



Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 5Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 6Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 7





Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 8

Vertical Glass Washing Machine

Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 9

Max glass size
2000*2500
Min glass size
280*400
Glass thickness
3 - 18mm
Washing speed
summer: 8 - 10m, winter: 6 - 7m
Power
18.5kw
Height
3100mm





Advantage:

· It is painted by an electrostatic paint for protection against a rust and scratchs.

· Conic moving gears are made from a special steel alloy.

· Nuts corrosion-proof, apertures for nuts aluminium.

· A working direction of action with left on the right party.

· Brushes from above and from below have adjustment for approach.

· The electro system corresponds to safety rules.

· Heating up plates and water tank from stainless steel.

· Special brushes for reflecting glasses.

· Adjustment of speed of a running tape.





Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 10

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.















Vertical And Horizontal Glass Washing And Drying Machine With High Speed System 11

Service on 24 hours
LIJIANG has customers more than 30 countries, we have branch office in India, and area agents in South America, in Middle East, America and so on. We also have 10 engineers which are very experienced. We always provide the fast service for all the customer in all of the world.
