Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJWBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine

Description
Name: Horizantal Glass Washing And Drying Machine Materail: Stainless Steel For Washing Parts
Advantage: Soft Brush For Low-e Coating Glass Type: Insulating Glass Production Line
High Light:

glass processing machines

,

double glazing production

Horizantal and Vertical Glass Washing and Drying Machine With Energy Saving System



          LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE



Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 0

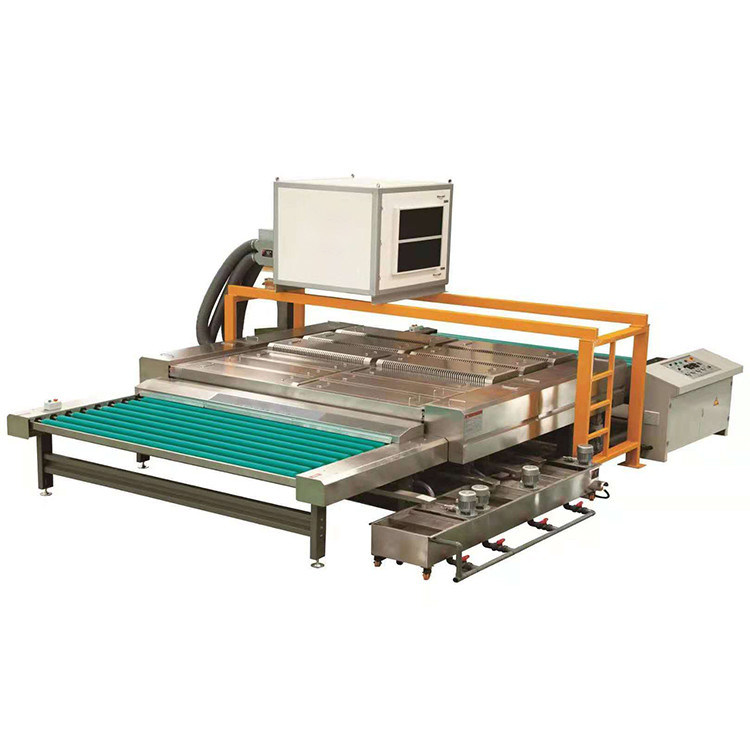

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500

Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 1

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out going segment.



Structural characteristics:
* The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder;
* Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency;
* The rubber roller is made of vulcanized rubber with stainless steel shaft;
* The washing part in contact with water is made of stainless steel;

* Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;
* Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);

Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 2

Structural characteristics:

* Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);
* The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;
* Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable,the service life is long, realizes the cleaning high request special glass;
* Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain;
* Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
* Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)







Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 3

Vertical Glass Washing Machine

Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 4

Max glass size
2000*2500
Min glass size
280*400
Glass thickness
3 - 18mm
Washing speed
summer: 8 - 10m, winter: 6 - 7m
Power
18.5kw
Height
3100mm



Advantage:

1,The vertical glass washing machine uses stainless steel material, the screws are used China famous brand, stainless steel material. The water tupes are used water proof design.

2,The vertical glass washing machine uses 6 pieces of soft brushes, which can wash low-e glass well, do not damaged the low-e film.

3,The vertical glass washing machine uses new air knife design, which can save a lot of energy, keep good washing result, the powerful wheels can keep different sizes of glasses transfer quickly. Fast washing speed.



Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 5

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into
whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.















Energy Saving Insulating Glass Production Line Horizantal And Vertical Glass Washing And Drying Machine 6

Service on 24 hours
LIJIANG has customers more than 30 countries, we have branch office in India, and area agents in South America, in Middle East, America and so on. We also have 10 engineers which are very experienced. We always provide the fast service for all the customer in all of the world.
