Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine
Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine

Large Image :  Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine

Description
Name: Desiccant Filling Machine Fillingaluminumframe’smaximum Size: 2000mm*2000mm
Fillingaluminumframe’sminimal Size: 300mm*250mm Articlealuminumspecifications: 5.5-24mm
Air Source: ≥0.65MPa Power Supplyandpowerconsumption: AC220V50Hz1.8KW
Molecularsieve Diameterneeded: 0.5-0.9mm
High Light:

glass filling machine

,

desiccant filler

Desiccant filling machine



Products Description



The desiccant filling machine can automatically complete the drilling operation in the gasket frame, filling desiccant and sealant. The control system of the desiccant filling machine is produced by the German Siemens company, so the rapid drip and stable operation ensure the quality of the glass bottle, which can ensure the quality of the glass bottle in the entire process.filling machines and equipment.



Technical parameter

Filling aluminum frame’s maximum size
2000mm*2000mm
Filling aluminum frame’s minimal size
300mm*250mm
Article aluminum specifications
5.5-24mm
Air source
≥0.65MPa
Power supply and power consumption
AC220V 50Hz 1.8KW
Molecular sieve diameter needed
0.5-0.9mm
Dimension
1300mm*1100mm*3650mm
  • Adopt Siemens PLC control system

  • Touch screen interface,easy operation

  • The height  can be adjusted according to the size of spacer frame

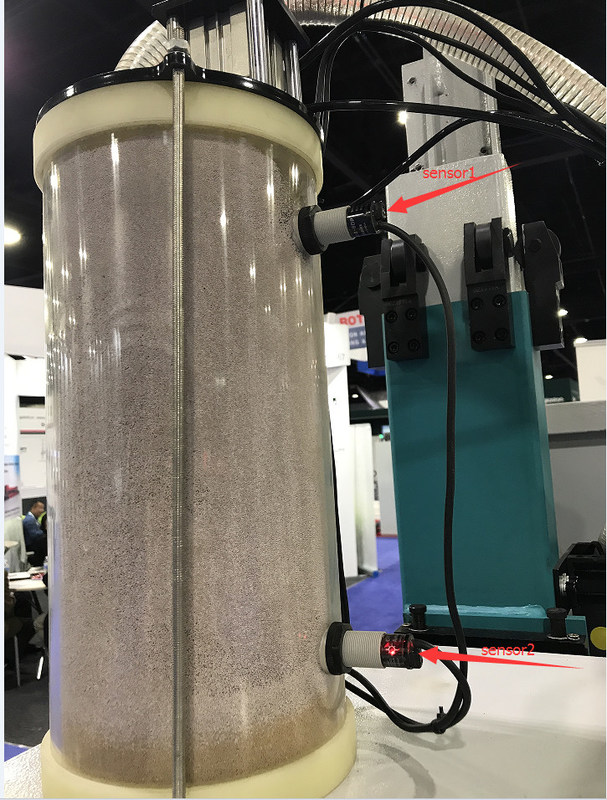

  • Automatically loading and replenish desiccant

  • Filling time can be adjusted

  • Automatically drilling,filling and sealing

  • Core parts are imported brands

Details display

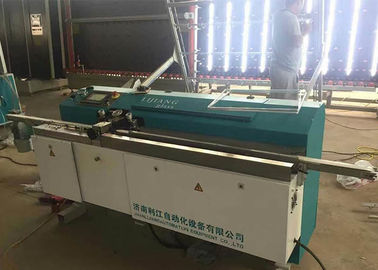

1.Auto drilling, filling and sealing function
automatic filling machine

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine 0

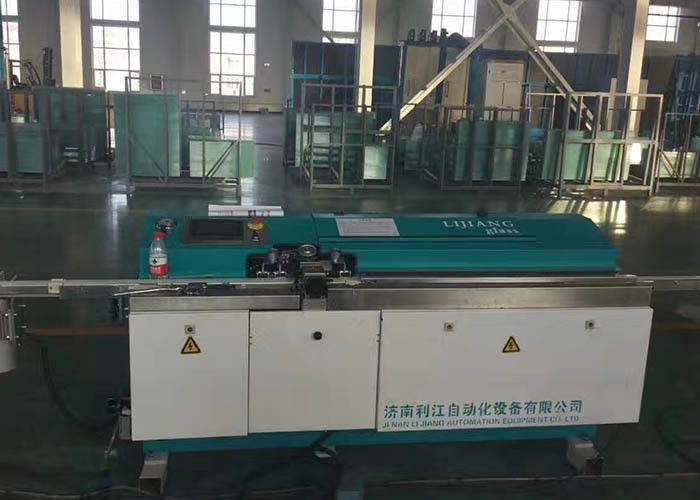

2.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen.

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine 1

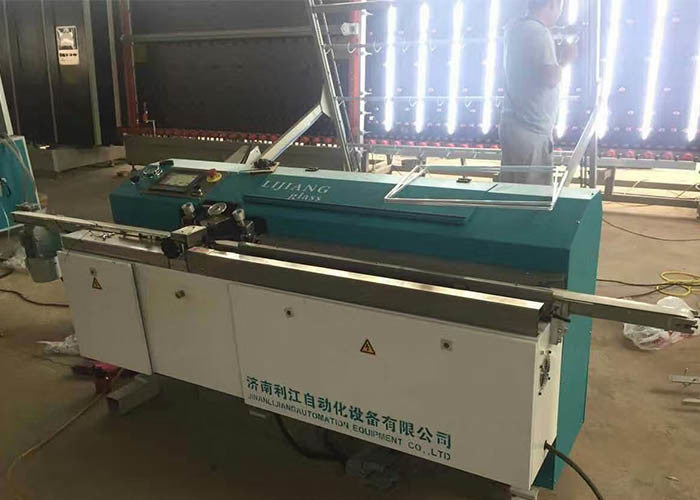

3.All spare parts have ID Number for offering the convenience in after sales service.

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine 2

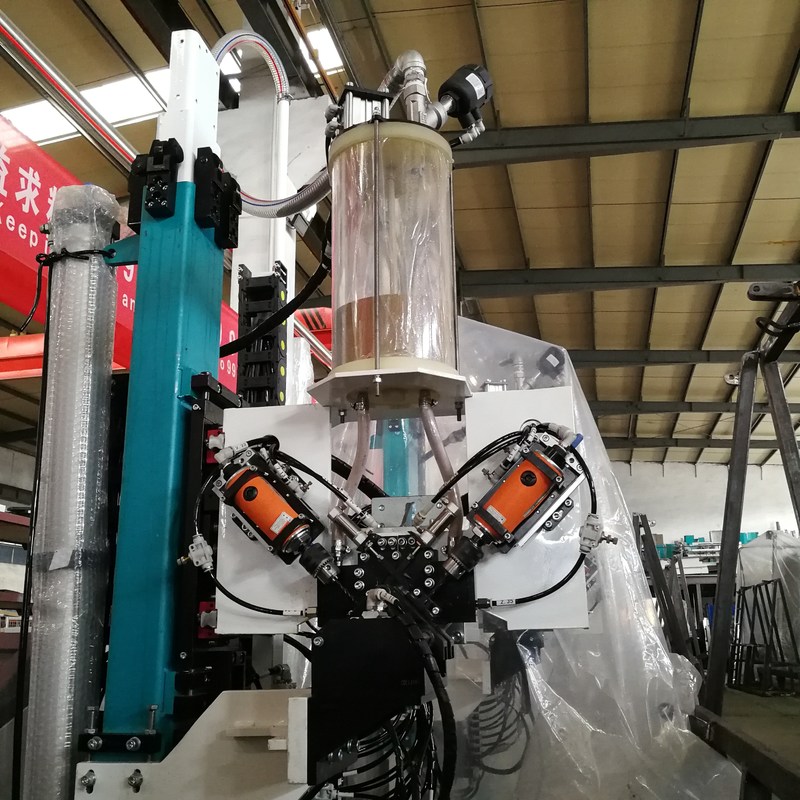

4.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .


Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine 3




Company introduction

Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass Factory) is located in the beautiful spring city of Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.

The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign enterprises, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. . Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on.

At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced vertical automatic insulating glass production line with filling gas, vertical insulating glass sealing robot, automatic interval bending machine, automatic dehumidifying filling machine and new automatic butyl rubber extruder The quality has reached the highest level of leadership in China.

With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and a world of innovation.

Full Automatic Desiccant Filling Machine For Insulating Glass Filling Machine 4
