Product Details:
|
| Name: | Automatic Aluminum Spacer Bending Machine | Storage Units: | 4/12 |
|---|---|---|---|
| Max.bending Size: | 2000mm*2000mm | Min.bending Size: | 250mm*200mm |
| Control System: | Siemens PLC | Aluminum Spacer Width: | 6A-27A |
| Dimensional Error: | ±0.1mm | Processing Speed: | ≤26s |
| Function: | Printing Code，Printing Paper Label，USB Input | Usage: | Making Aluminum Frames |
| High Light: | industrial bending machine,spacer bar bending machine |
||

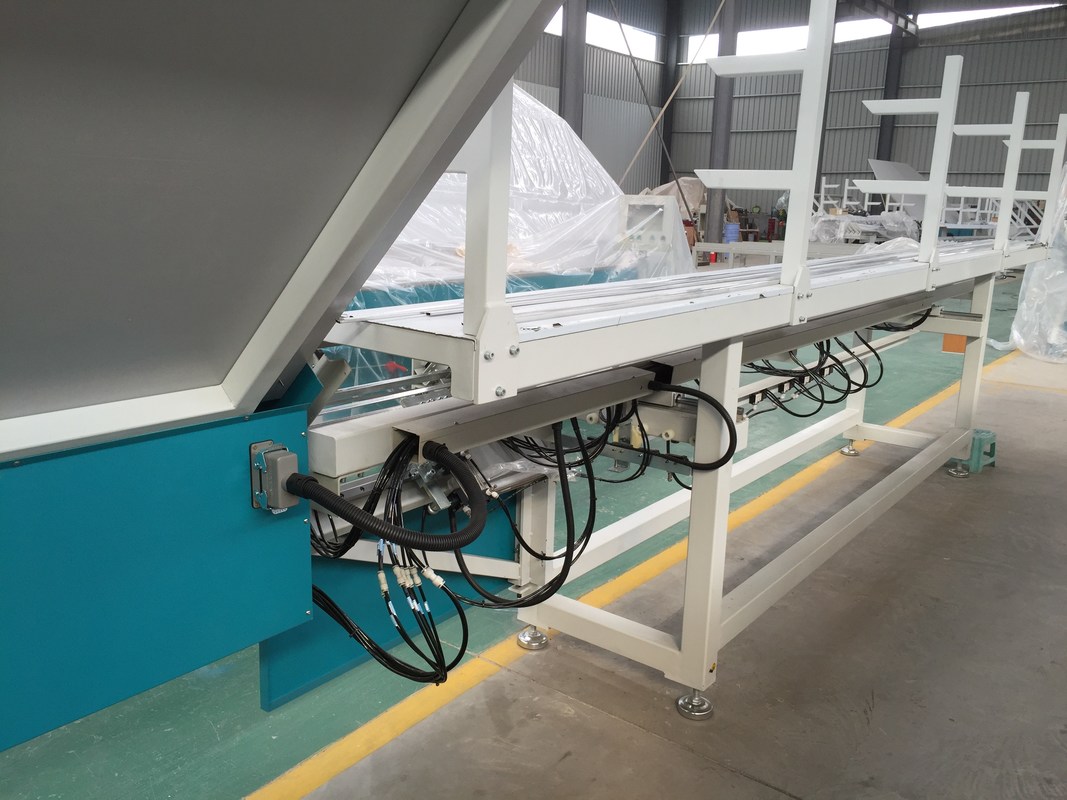

Automatic spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Technical Data of Automatic Aluminum bending machine
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
The feature of Spacer bending machine
1..Automatically avoid the connecting corner while bending and cutting
2.Automatic spacer bending machine adopt Siemens PLC control system.
3.German Siemens CNC servo control system
4.Auxiliary function of adjustment for bending large aluminum frame
5.Spacer bending machine can bend 8 kinds of spacer
6.Separated guard board outside of bender
7.Spacer bending machine can realize the code spraying function.
8. USB input fuction,read the excel format file directly etc(Optional)
9. Aluminum bar bending machine can be equipped with label printing function(Optional)
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd. is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
Related products
LJQJ02Aluminum spacing trip cutting machine
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers,keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
