Product Details:
|
| Name: | Automatic Insulating Glass Sealing Robot | Max Glass Size: | 2500*4000mm |
|---|---|---|---|
| Min Glass Size: | 300*300mm | Glass Thickness: | 12-50mm |
| Working Speed: | 5-40m/min | Air Pressure: | >0.6MPa |
| Type: | IG Machines | Applicantion: | Insulating Glass Processing |
| High Light: | silicone extruder machine,double glazing equipment |
||

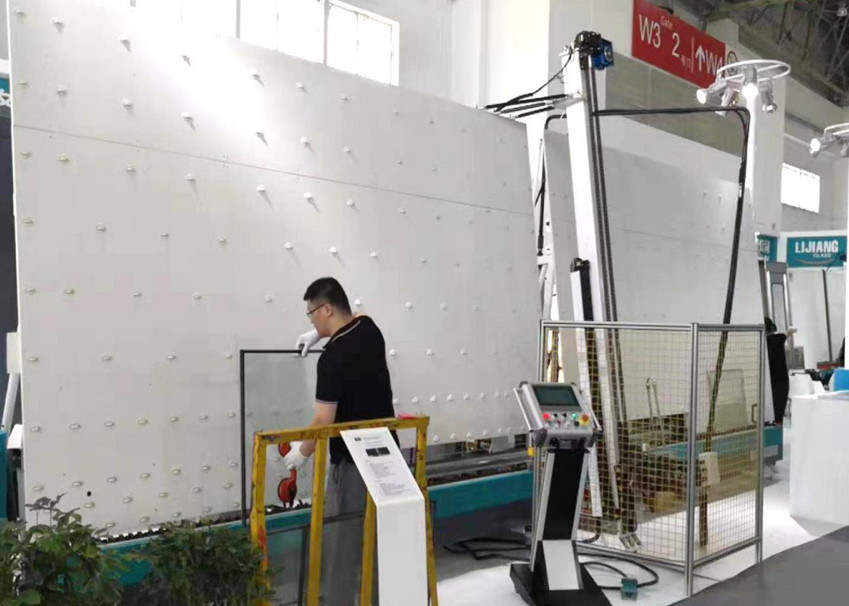

Product overview of sealing robot
Vertical Insulating Glass Sealing Robot can automatically recognizing glass size by sensors, don't need input glass size on the touch screen. The sealing robot can coat 8 kinds of shaped IGU.
Tech Parameters
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Detail
1.Glass sealing machine adopt 8 sets of Japan ANCHUAN servo control system with stable performance.
2.Glue system can be selected
One Set of Glue System Equipped with single A component and single B component.
Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
3.The glass corners are full without air bubbles, smooth surface, no corner trimming required
4. Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
5. Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
6. Timing belt
The time belt device ensure that glass can be smooth transmission and positioned accurately.
Company introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
Mission:Make glass processing simpler and more intelligent
Vision:Living for 100 years, become refined, specialized and excellent. We will be deeply engaged in the glass machinery industry, and be a high cost-effective specialty in glass machinery industry field. Hope to serve more than 10000 customers around the world by 2030.
