Product Details:
|
| Name: | Aluminum Spacer Bar Bending Machine | Max.bending Size: | 2000mm*2000mm |
|---|---|---|---|
| Min.bending Size: | 250mm*200mm | Control System: | Siemens PLC |
| Aluminum Spacer Width: | 6A-27A | Dimensional Error: | ±0.1mm |
| Processing Speed: | ≤26s | Racks: | 4/12 |
| Function: | Printing Code，Printing Paper Label，USB Input | ||
| High Light: | industrial bending machine,spacer bar bending machine |
||

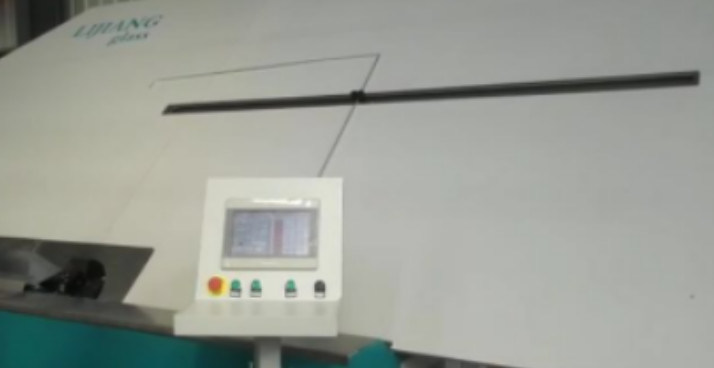

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass,The bending machine Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
The feature of Spacer bending machine
1.Aluminum spacer bending machine adopt Siemens PLC control system.
2.Spacer bending machine can bend 8 kinds of spacer
3.Automatically avoid the connecting corner while bending and cutting
4.Spacer bending machine can realize the code spraying function.
5. Aluminum bar bending machine can be equipped with label printing function(Optional)
Technical Data of Automatic spacer bar bending machine
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Quality control of LIJIANG GLASS
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
