Product Details:
|
| Production Name: | Glass Washing And Drying Machine | Brand: | Siemens |
|---|---|---|---|
| Brushes: | 3 Pair Of Brushes | Material: | Stainless Steel |
| Glass Thickness: | 3 - 15mm | Max Glass Size: | 2500*4500mm |
| High Light: | glass cleaning machine,vertical glass washer |
||
High Quality Vertical Glass Washing Machine Used For Insulating Glass Processing
product description
Vertical glass washing machine can complete the functions of pre-cleaning, cleaning and drying of glass and Low-e glass.
Vertical glass washing machine is a special equipment in the production of insulating glass.
Automatic Glass washing machin can do double glass,triple glass and stepped glass.
Features of glass washer
1.Automatic Glass washing machine adopts Siemens control system, which can freely adjust the washing speed of washing machine.
2.Automatic vertical washing machine can Wash online and offline low-e glass, automatically recognizes Low-e film

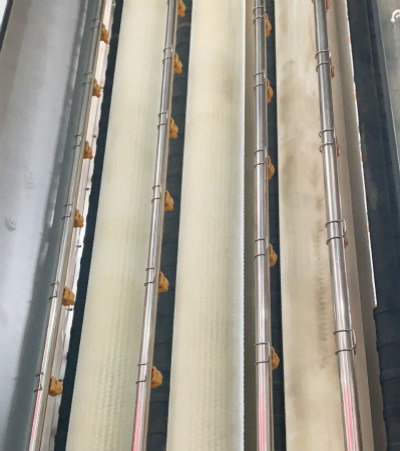

3.Glass washing machine has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .
4.Noise reduction device,The noise can be controlled below 90 decibels by using nylon gear and sponges.
5.Vertical Glass Washer have Water heating system,Glass washer also uses stain steel and adopts air heating system.
6.The air knife can automatically adjust the width of the air knife according to the thickness
Technical parameter of Washing Glass Machine
| Power supply | Voltage(V) | 380 |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
After sale
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
