Automatic Insulating Glass Production Line Sealant Extruder Rotated Table

Automatic Insulating Glass Production Line Sealant Extruder Rotated Table
Automatic Insulating Glass Production Line Sealant Extruder Rotated Table Automatic Insulating Glass Production Line Sealant Extruder Rotated Table Automatic Insulating Glass Production Line Sealant Extruder Rotated Table Automatic Insulating Glass Production Line Sealant Extruder Rotated Table

Large Image :  Automatic Insulating Glass Production Line Sealant Extruder Rotated Table

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJST02A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Automatic Insulating Glass Production Line Sealant Extruder Rotated Table

Description
Name: Sealant Silicon Pump Advantage: Imported Motor
Fuction: For Silicon And Poysulfide Sealant Use Feature: Automatic
High Light:

double glazing production

,

insulating glass line

Hot sales Sealant extruder rotated table for insulating galss



LIJIANG GLASS---IG Glass Processing Equipment For World User Serivices

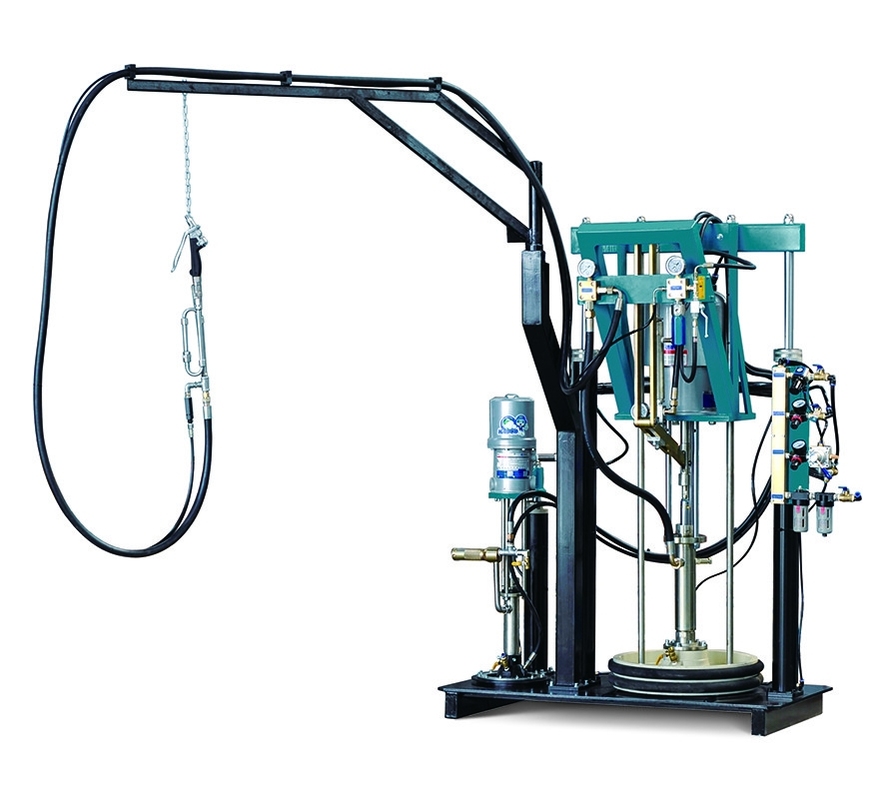

                        Sealant-spreading Machine LJST02A
Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 0















Sealant-spreading Machine LJST02A



Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue




















Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 1







Sealant-spreading Machine LJST02A



Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm




















Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 2

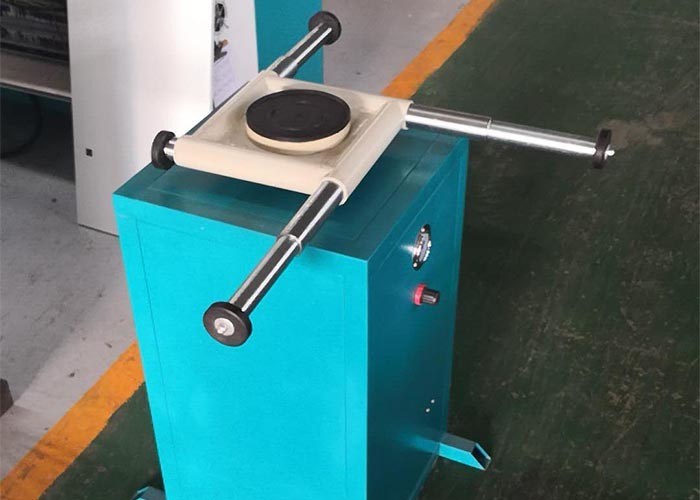

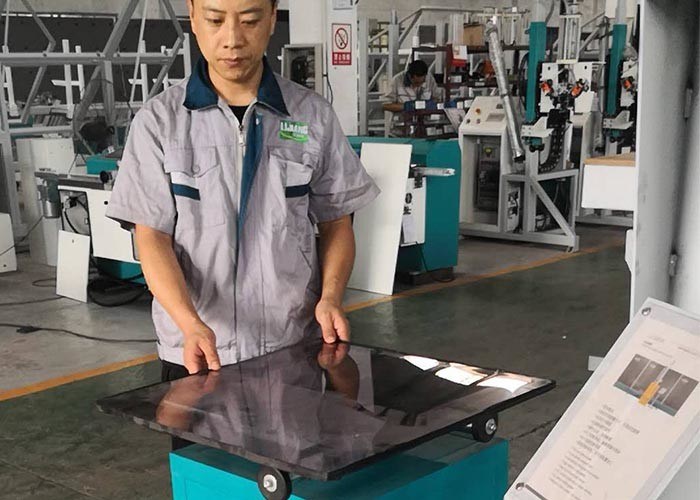

                        Rotated Sealant Spreading Table LJHT02

Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 3













Rotated Sealant Spreading Table LJHT02



Main feature

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass





















Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 4







Rotated Sealant Spreading Table LJHT02




Technical data



Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm













Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 5

Automatic Insulating Glass Production Line Sealant Extruder Rotated Table 6

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
