Product Details:
|
| Name: | Automaticbutyl Extruder Machine | Glue Nozzles: | TEFLON |
|---|---|---|---|
| Glue Cylinder: | Upright Structure | Brand: | Siemens |
| HAVE Valve: | Germany | Speed: | 0-47mm |
| High Light: | silicone extruder machine,double glazing equipment |
||
The butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the first sealant for insulating glass. New butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type insulated glass, even it is necessary for Vertical insulating glass flat press production line.
Product overview of butyl extruder machine
1.Simple operation

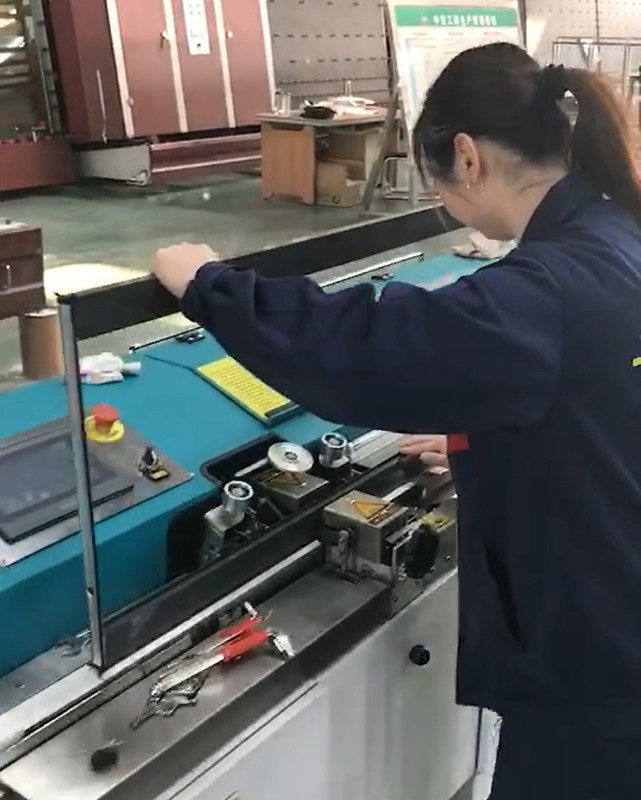

Butyl extruder is controlled by program PLC, can automatic and exactly finish gluing function, operators only need to support the aluminum frames, others( clamping roller, transfer and etc) are automatic finished by setting program.
2.Sealant dispensing machine can be coated with various aluminum frames
The extruder is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
3.High efficiency and butyl rubber saving
Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating speed.The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.
4.Quickly heating function
preheat the machines with only 20 minutes per day, improve work efficiency.
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
6.Germany Siemens parts
Adopt Siemens brand, stable performance.
7.Glue cylinder
Adopt the upright structure, easy to change butyl.
8.TEFLON glue nozzles
Adopt Teflon glue nozzles, keep spreading quickly
Technical Data of small extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415v 50 hz 3 phrase |
| Dimension | 2950×890×1004mm(L×W×H) |
| Weight | 750kg |
After sale
Company introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
