Product Details:
|
| Name: | Butyl Extruder Machine | Speed: | 0-47m/min |
|---|---|---|---|
| Diameter Of Butyl Cylinder: | 200mm | Aluminum Spacer Width: | 6A-27A |
| High Light: | silicone extruder machine,double glazing equipment |
||

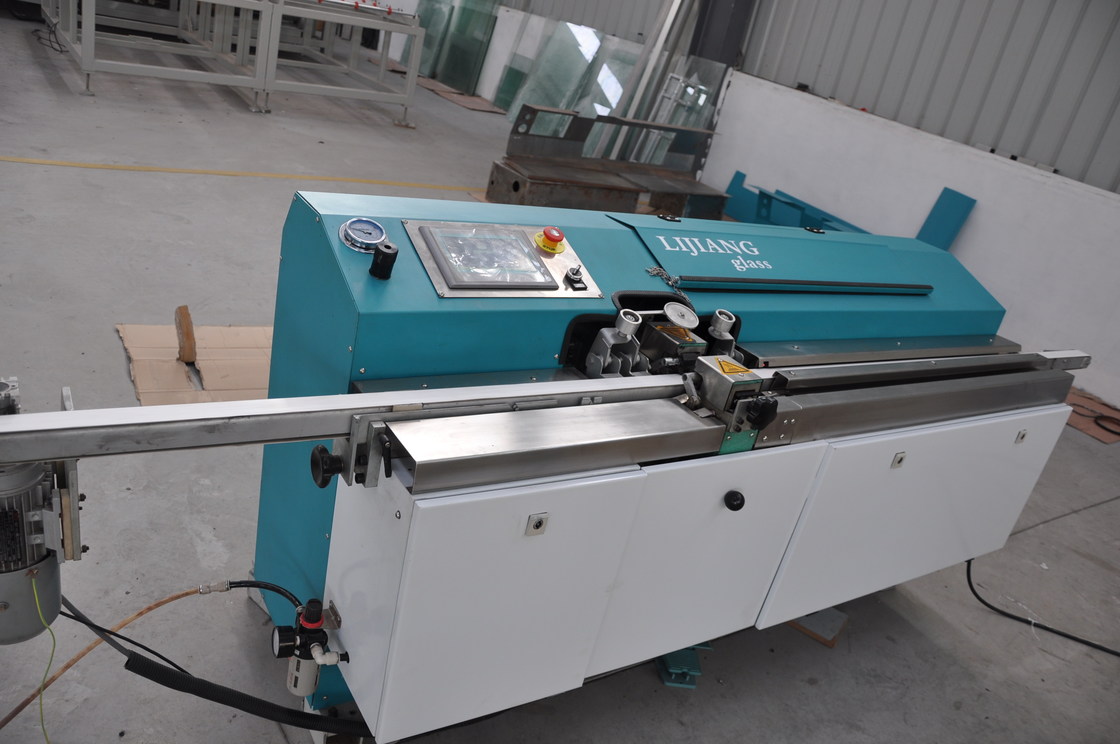

Automatic Butyl extruder machine LJTB 01 is used for spreading aluminum spacer frames evenly with hot melt butyl.
The feature of Butyl extruder machine
1.The butyl extruder uses large electrical control panel which makes the operation more easier than before.
2.Silicone extruder machine can Quick Glue ,47m/min Fast speed
The coating machine speed can be adjusted from 0m/min to 47m/min
3.Most cost-effective
Butyl rubber coating machine consumes very little butyl rubber,4g /m
4.200L Maximizes your productivity
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
6.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
7.Glue cylinder
Adopt the upright structure, easy to change butyl.
Small extruder machine Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415v 50 hz 3 phrase |
| Dimension | 2950×890×1004mm(L×W×H) |
| Weight | 750kg |
