Product Details:
|
| Name: | Automatic Vertical Insulating Glass Production Line | Max.glass Size: | 2500*3500mm |
|---|---|---|---|
| Glass Thickness: | 3-12mm | Insulating Glass Thickness: | 40mm |
| Glass Washing Speed: | 2-10m/min | Washing Brushes: | 3Pair |
| High Light: | double glazing production,insulating glass line |
||
Fully automatic vertical insulating glass production line with inflation function
Automatic vertical insulating glass production line adopt unique inflation structure to ensure rapid inflation, high inflation content and gas saving,It is an important part of glass production machine.
The Features of IG Line
1.Insulating glass production line adopt German Siemens PLC control system, stable performance
2.Automatic identification of Low-E glass, can wash online and offline Low-E glass
3.The width of the air knife of the washer can be adjusted automatically according to the thickness of the glass
4.Install speed indicator to automatically display washing speed
5.Automatic closing of air knife, intelligent intermittent energy saving work
Fuction of insulating glass production line
1.Hollow glass production line Can do double IG, triple IG , step and shaped IG
2.Inside online filling gas , synchronous pressing; fast filling speed, high concentration, automatic display of the filling speed and gas content
3.The pressing surface of the plate can be adjusted to ensure that the plate surface will not deform for a long time
Main technical parameter
| Max.glass size: | 2500*3500 |
| Min.glass size | 300*450mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 45m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 25KW |
| Dimension | 18500*3500*3600 |

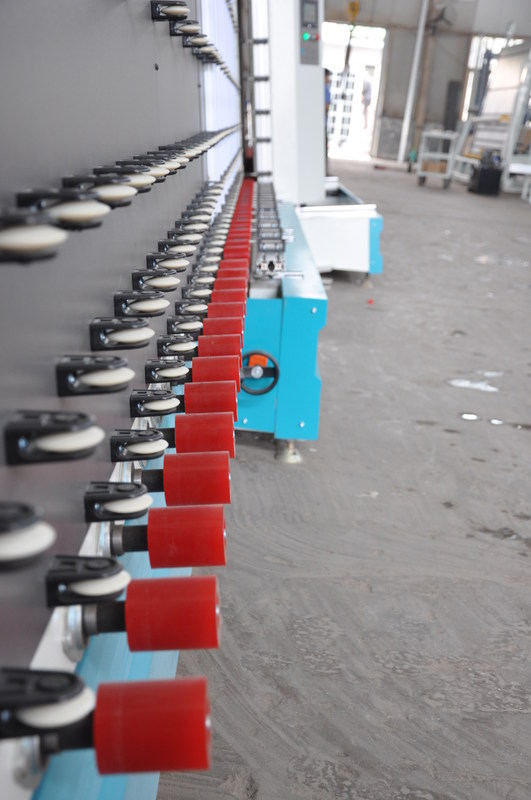

Detail picture
