Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine

Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine
Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine

Large Image :  Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine

Product Details:
Place of Origin: Jinan, China
Brand Name: Lijiang glass
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 20GP Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine

Description
Production Name: Automatic Spacer Bending Machine Brand: Lijiang Glass
Spacer Size: 6A - 27A Shape Frame: 8 Shapes
Voltage: 380V 50Hz 3P Servo: Siemens
Warranty: 1 Year
High Light:

double glazing production

,

insulating glass line

17s Fast speed automatic spacer bending machine with for making insulating glass

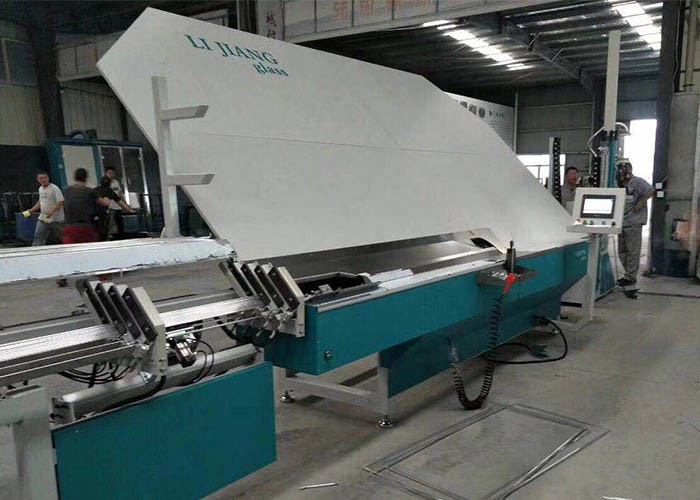

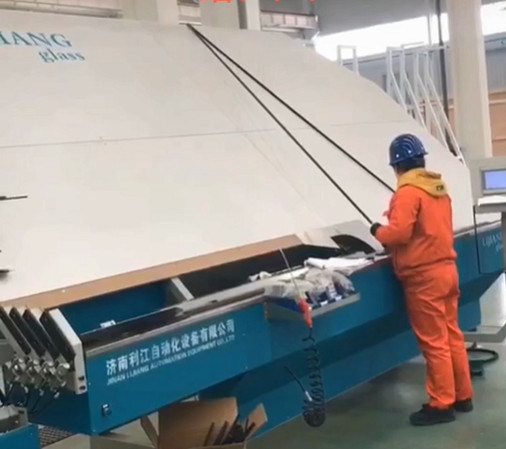

LJZW2020 fast speed spacer bending machine is automatic machine, 17s for 1*1m frame. Bending the spacer frames of different sizes and shapes according to the shape requirements of the insulating glass, reduce the use of pins and keep good sealing effect.



Spacer max size  2000mm*2000mm
Spacer width 6A - 27A
Voltage  380V 50Hz 3P
Power  2.5Kw
Dimension  L: 10.5m W: 2.2m H: 2.6m
Angle error  <1°
Model LJZW2020
Warranty  1 year





Fast Speed Automatic Spacer Bending Machine / 17s Spacer Bending Machine 0

1. What is the spacer's thichkness, length and width normally?

Thickness:0.3mm ; Lengh: 5m or 6m ; 6-27A.



2. Is the aluminum strip welded by high frequency or drawn by cold? Can ordinary non bendable aluminum bar be bent?

Yes, high frequency welding aluminum strip. Ordinary non bendable aluminum strip can not be bent (generally, the thickness above 0.27mm can be bent).



3. How many racks on the bending machine ? what is the max width of the spacer and the min of the spacer?

LJZW2020 spacer bending machine has 4 racks , 12 racks are optional. The max width is 27A, the min width is 6A.



4. Does the spacer can be automatic cutting and connecting spacers?

Yes, this bending machine can be automatic cutting and connecting.



5. If the aluminum strip is not well butted in the butt joint process? Can the device stop automatically? How to remedy it?

Yes, you can adjust the position of the material groove and the bending part on a horizontal line.



6. Can our equipment be deformed? What kinds of abnormal shapes can we bend?

Yes, round, hexagon, octagon, semicircle, etc. totally 8 shapes.



7. How many wires can the bend corner width of aluminum strip be controlled? How much extra width does not affect the butyl glue coating?

(the corner width can be controlled within 0 wire, our factory standard is set at 10 wire) 20 wire should not be affected.



8. Is the input size of our equipment the size of glass or the size of aluminum frame? What are the input methods?

Input the glass size, parameters can be input, USB can be imported, and ERP can be directly connected (customized)



9. What brand of PLC, servo motor driver and touch screen are used respectively?

Siemens of Germany, touch screen is Veron of Taiwan.



10. Can the device avoid the pin during angle folding or sawing? How to avoid it?

Yes, automatic avoidance.



11. If there are more than 2 meters of aluminum frame bending, how do we bend it? Is it the same as normal continuous bending?

The bending is clamped by the manipulator, just like the normal bending (step bending can be adopted)



12. What is our bending speed? How long is the fastest time to fold 1 m * 1 m? Is it high speed?

High speed bending machine, 17s for one frame



13. What is the length, width and height of the equipment? What is the voltage and power?

10500mm*2200mm*2600mm ; 380V 50Hz 2.5KW



14. Can our device print labels? What is the main role?

Yes, suitable for large-scale aluminum frame bending, different glass sizes.



15. Can our equipment print code? Where to spray the aluminum strip? Is it laser or ink-jet?

Yes, inside the aluminum frame edge, inkjet.
