Product Details:
|
| Name: | Flat Insulating Glass Production Line | Max Glass Size: | 2500*4000mm |
|---|---|---|---|
| Min Glass Size: | 350*450mm | Dgu Thickness: | 80mm |
| Flat Glass Thickness: | 3-15mm | Glass Washing Speed: | 6-15m/min |
| Glass Conveyor Speed: | 45m/min | Triple Glass: | Available |
| Washing Brushes: | 3 Pairs | Brushes Diameter: | 0.1mm |
| High Light: | double glazing production,insulating glass line |
||
Flat glass Production line double triple stepped glass Insulating glass production line
1, Insulating glass production line Introduction

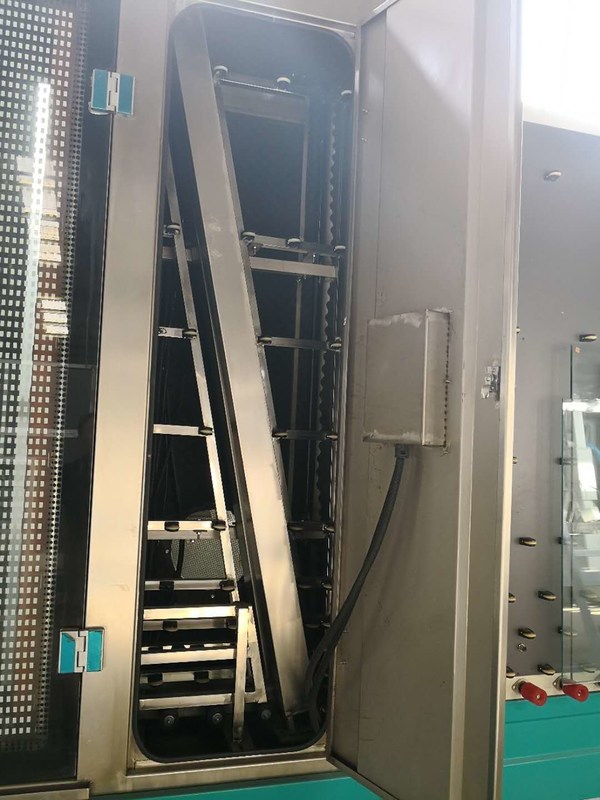

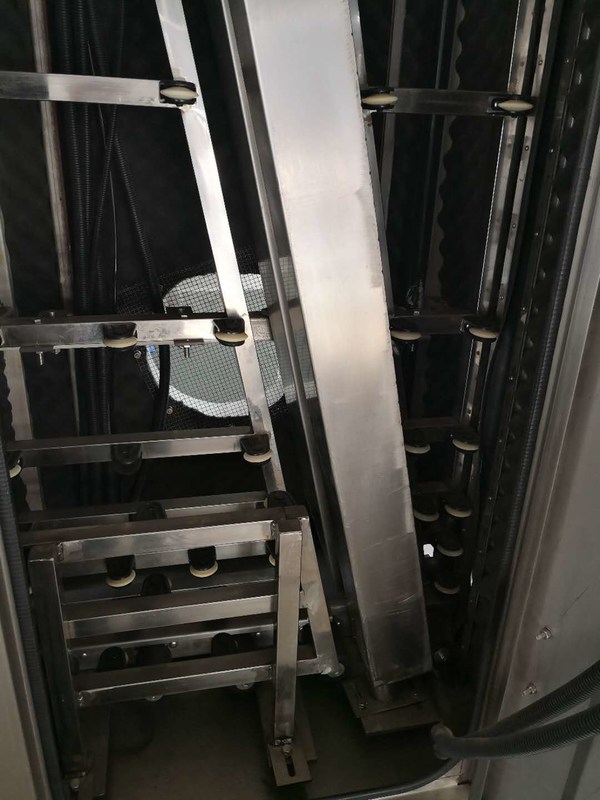

Washing and drying part
Glass washing machine have pairs soft brushes can wash low-e glass and normal glass , the diameter is less than 0.1mm.
Glass loading machine use coating inspection -metal film conductive to avoide wheel marks or scratch low-e Coating
Washing and drying Glass machine is using stainless steel.
Washing and drying Glass machine have Air knife is float design ,
Washing and drying Glass machine always keep the right and suitable distance 3mm
between the glass surface and air knife
The front and back side squeeze wheel of Washing and drying Glass machine are all actively moved and convey. No mater the glass size is big /small or thickness different(8mm) , it all guarantee the glass pass through smoothly.(Same like LISEC)
Main Parameter
| Washing speed | 10~15m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 80mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size |
2500×4000
|
| Max.glass size | 2500*3500mm(LJBZ2535)Gas fillier line :2500*3200mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 48m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 34KW |
| Dimension | 23500*3500*3700mm |
Main Products
Vertical Insulated Glass Produce Line for double glass production line
Auto Sealing Robot for double glass production line
Sealant Spreading Machine for double glass production line
Low-E Glass Washing &Drying Machine for double glass production line
Smart Edge Deleting Machine for double glass production line
Automatic Spacer Bending Machine for double glass production line
Automatic Desiccant Filling Machine for double glass production line
Butyl Extruder Machine for double glass production line
Glass Edge grinding Machine for double glass production line
Spacer Cutting Machine for double glass production line
Sealing gun Freezer for double glass production
Rotated Sealant Spreading Table double glass sealing
Argon Gas Filling Machine double glass
