Product Details:
|
| Name: | Lock Hole Slot Processing Machine | Input Power: | 380V / 50Hz |
|---|---|---|---|
| Working Pressure: | 0.6 ～ 0.8MPa | Profiling Cutter Diameter: | MC-∮5*80-∮8-20L1 |
| Profiling Spindle Speed: | 12000r/min | Three Hole Drill Diamete: | MC-∮10*130-M10-70L2 |
| Three Hole Drilling Speed: | 900r / Min | Three Hole Drilling Depth: | 0～100mm |
| Machining Height Of Three Hole Drill: | 12～60mm | Clamping Profile Width: | 0～120mm |
| High Light: | mechanical vacuum lifter,hoist lifting equipment |
||

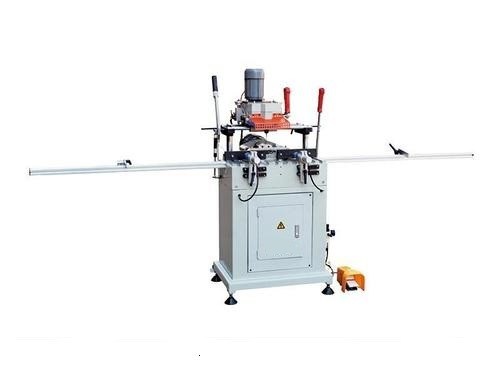

Aluminum plastic door and window lock hole slot processing machine
Aluminum plastic door and window lock hole slot processing machine is used to process the installation hole slot of the transmission of plastic steel doors and windows. The machine is composed of three hole drilling and profile milling. It can realize the drilling of three holes in horizontal direction and profile milling of long circular groove in vertical direction. One clamping can complete two processes, ensure the position accuracy of groove and hole, and work efficiency is very high.
Performance characteristics:
1.Aluminum plastic door and window lock hole slot processing machineis used for milling handle holes of plastic doors and windows and hardware installation holes;
2.The three hole drill is equipped with a special twist drill, which can drill and cut plastic profiles inlaid with steel lining plates;
3.The three hole drill is provided from the back to the front for easy
Technical parameters:
| Input power | 380V/50Hz |
| Working pressure | 0.6 ～ 0.8MPa |
| Air consumption | 50L / min |
| Total power | 2.25kw |
| Motor power of three hole drill | 1.1kw |
| Power of profiling motor | 0.75kw |
| Profiling cutter diameter | MC-∮5*80-∮8-20L1 MC-∮8*100-∮8-30L1 |
| Profiling spindle speed | 12000r/min |
| Three hole drill diameter | MC-∮10*130-M10-70L2 MC-∮12*135-M10-75L2 |
| Three hole drilling speed | 900r / min |
| Three hole drilling depth | 0-100mm |
| Machining height of three hole drill | 12-60mm |
| Clamping profile width | 0-120mm |
| Overall dimension of main engine | 800*1130*1550mm |
| Weight | 300kg |
