Product Details:
|
| Condition: | New | Materail: | Stainless Steel Used For Water Parts |
|---|---|---|---|
| Function: | Can Washing For All Kinds Of Glass | Type: | Horizontal Type |
| High Light: | horizontal glass washer,automatic glass cleaning machine |
||

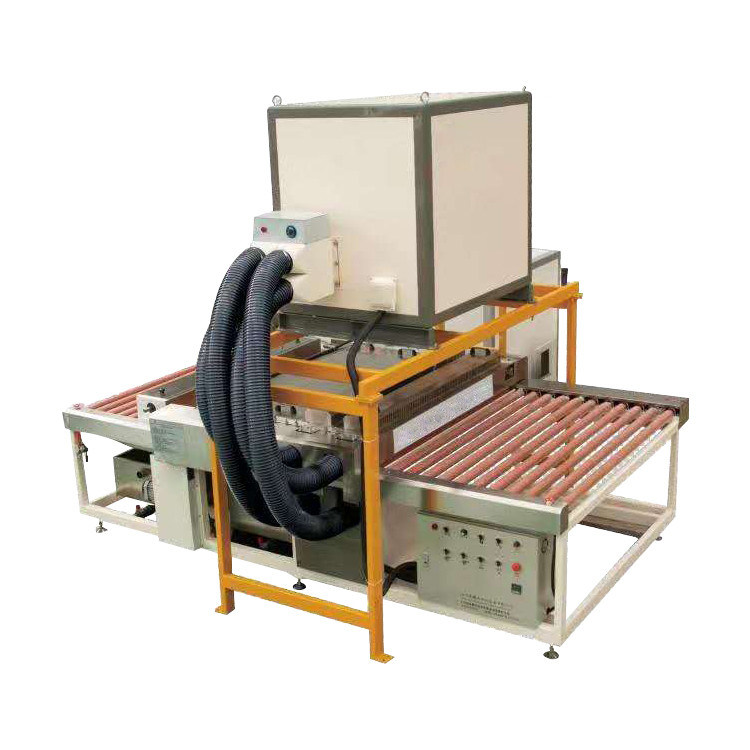

Horizontal Glass Washing and Drying Machine for All Kinds of Glass LJWBQJ2500
Horizontal glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
| Max washing Glass | 2500mm(2650mm) |
| Power supply | 380V 50Hz |
| Dimension(L*W*H) | 6260*4800*3100 |
| Weight | 3940kg |
| Glass thinkness | 3-25mm |
♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦
♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦
♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦♦⇔♦⇔♦⇔♦
1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of glass washing machine, with the air filter screen on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)
