Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot
Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot

Large Image :  Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot

Product Details:
Place of Origin: JINAN
Brand Name: Lijiang
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10sets 1 month

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot

Description
NAME: Vertical Automatic Sealing Robot MAX GLASS SIZE: 2500*4000MM
MIN GLASS SIZE: 350*400MM Electricity Brand: Germany Simens
Glass Thickness: 12-50mm Working Speed: 5-40m/min
Using Materials: Polysofield User: Toughened Glass Manufacturer
User Field: Glass Deep Processing
High Light:

double glazing manufacturing equipment

,

glass production machinery

Max glass szie 2500*4500mm vertical Insulating glass machine Double glass machine Sealing robot

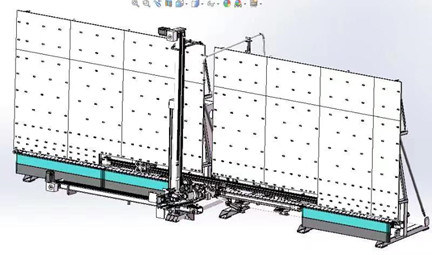

LJTJ2540 is the latest automatic vertical insulating glass sealing robot.

It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.









Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 0

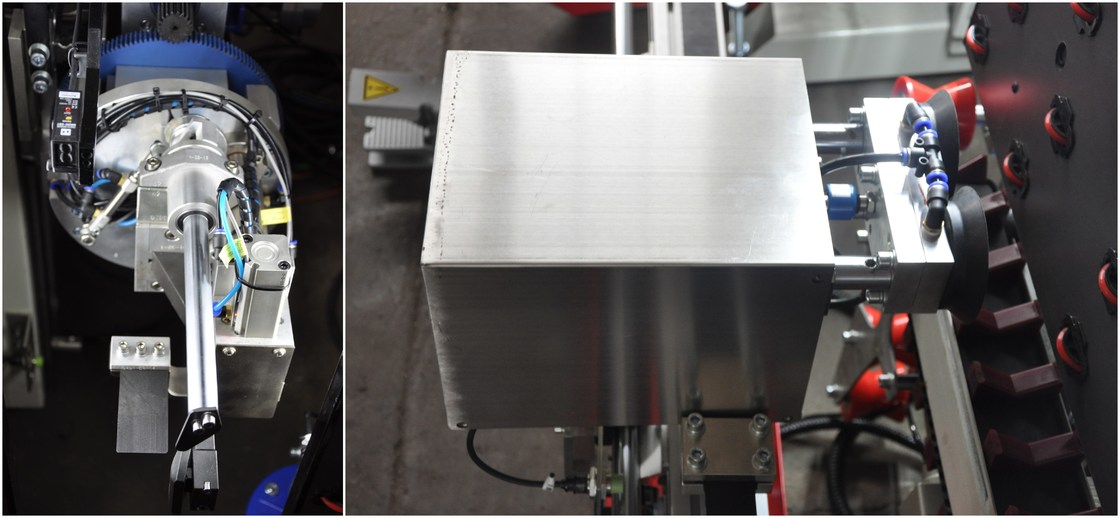

Mechanical head is placed in front

Achieve the real connection with IG line when doing stepped glass.

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 1

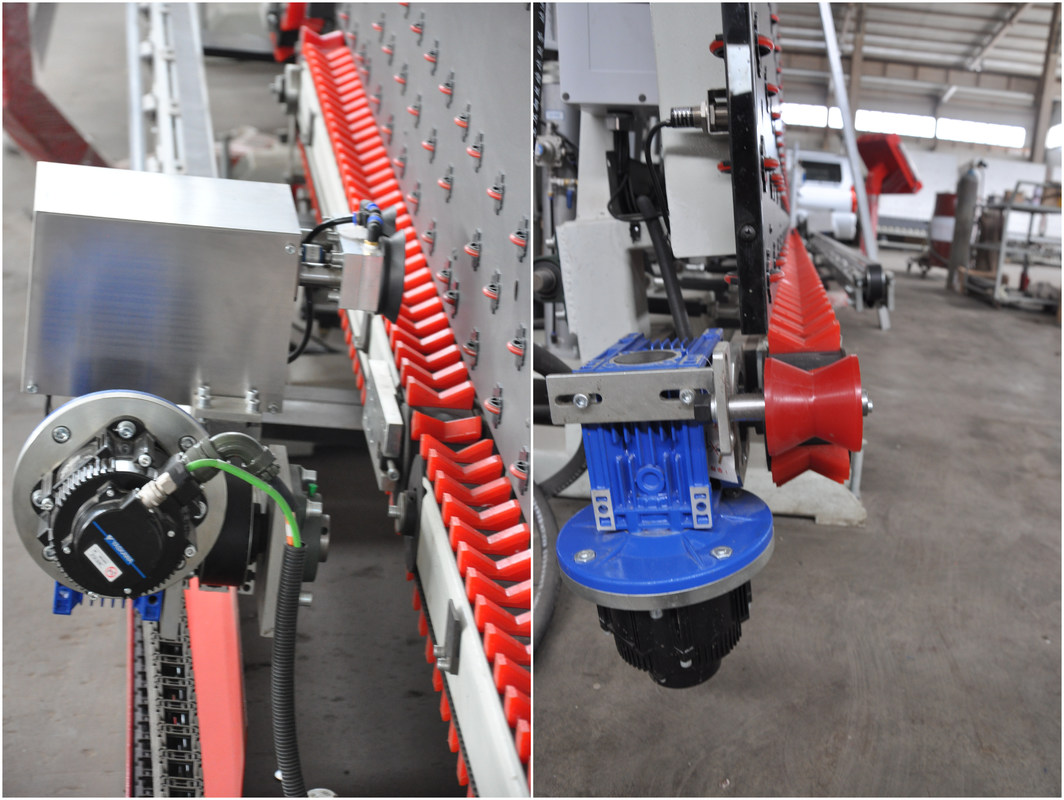

Storage Function

It can store three pieces of insulating glasses on the three belts ( less than 1.8m.),

it need 2 more sets servo motors, control system

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 2

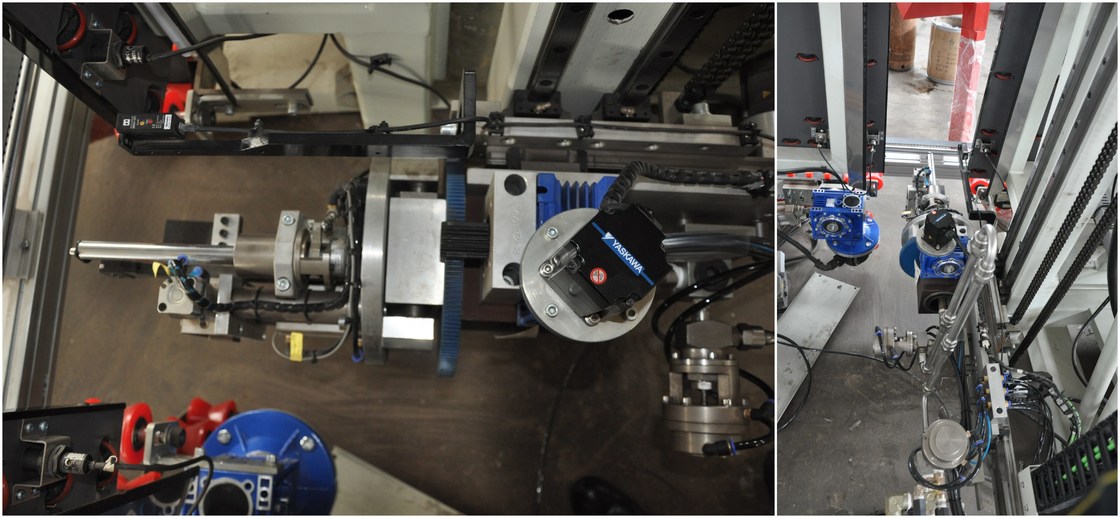

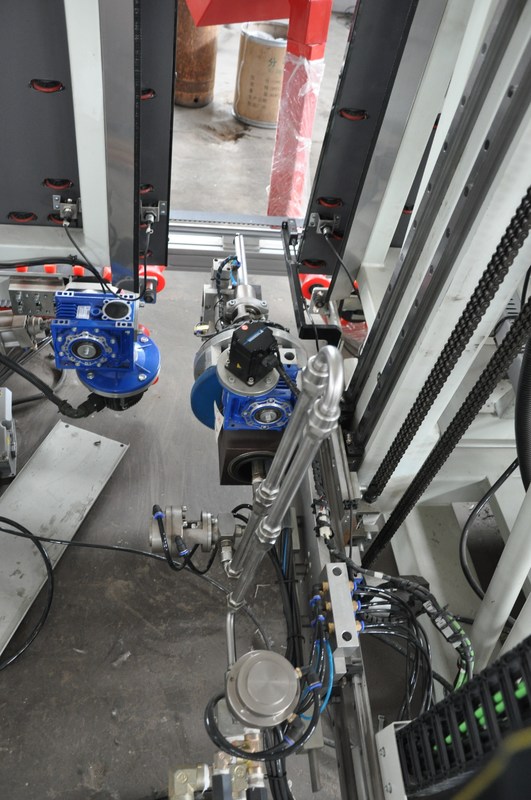

The robot uses eight YASKAWA servos, four of them control transmission parts,

in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.

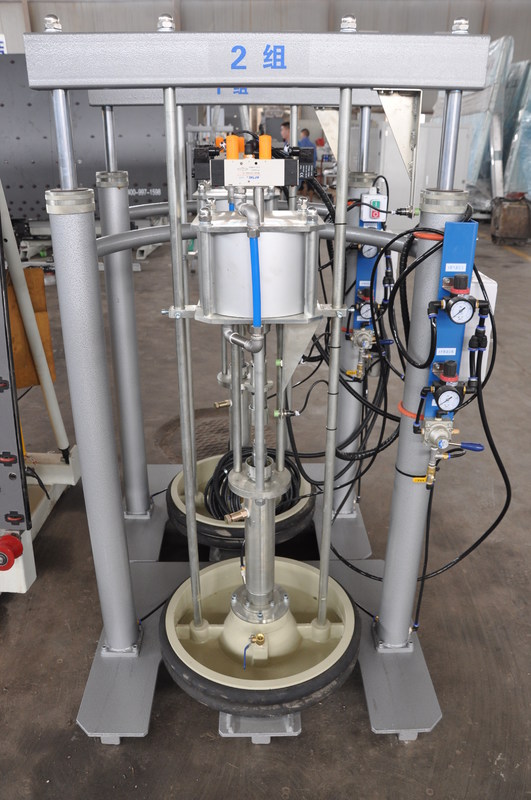

Single Glue System

Equipped with single A component and single B component.

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 3

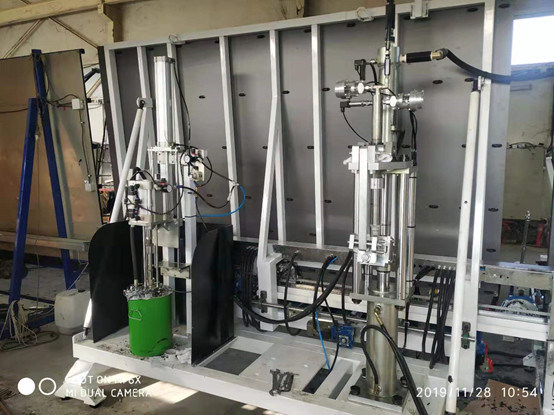

Double Glue Systems(option )

Equipped with two sets of A components and two sets of B components,

which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 4







  • Technical data
Max.glass size 2000*2500mm 2000*2500mm
2500*3500mm 2500*4500mm
Min.glass size 2000*2500mm 170*400mm
2500*3500mm 300*400mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm



  • Main components list
Name Brand
Servo motor Japan YASKAWA
I/O model Japan MSYSTEM
Lower voltage component Germany Siemens
CPU Japan YASKAWA
Switching power supply Taiwan MW
Pneumatic component Japan SMC
Electrical proportional valve Japan SMC
Precision pressure regulating valve Japan SMC
Touch screen Taiwan WENVIEW
Guideway Taiwan HIWIN



Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 5

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 6

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 7

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 8

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 9

Max Glass Szie 2500*4500mm Vertical Insulating Glass Machine / Double Glass Machine Sealing Robot 10
